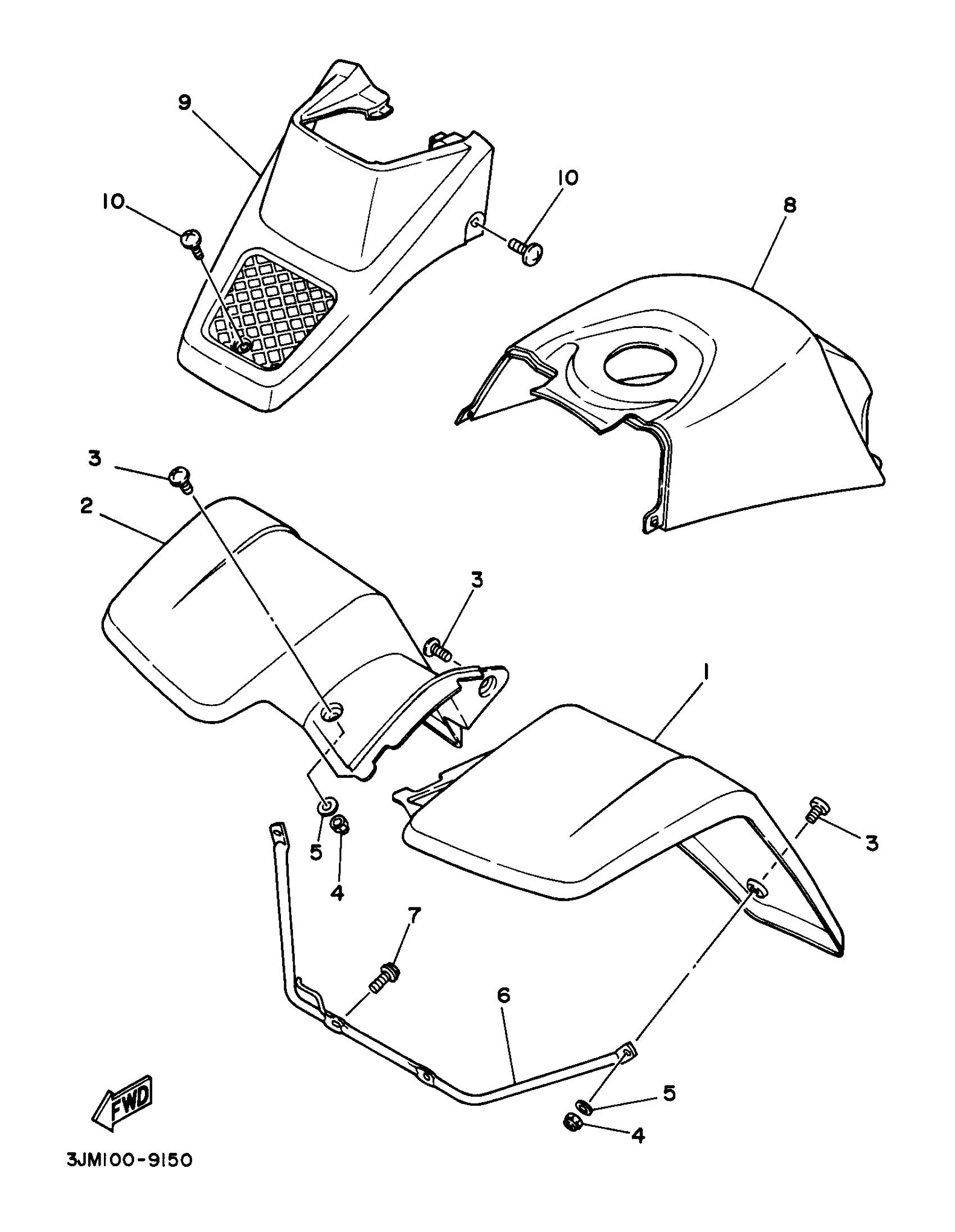

Yamaha YFS200J (BLASTER) 3JMN 1997 FRONT FENDER Diagram

FRONT FENDER (RED)

2XJ-W2151-99-00

Unavailable

FRONT FENDER ( YELLOW )

2XJ-W2151-A1-00

Unavailable

FENDER ASSY 2

2XJ-Y2152-00-00

Unavailable

FENDER, FRONT 2

2XJ-21556-A0-00

Unavailable

SCREW(3JM)

90149-06306-00

$8.49

NUT, SELF-LOCKING

95617-06100-00

$8.49

WASHER(6TA)

92907-06200-00

$8.49

STAY, FENDER 1

2XJ-21513-00-00

Unavailable

BOLT, FLANGE

95817-06012-00

$1.43

TOP COVER ASSEMBLY

2XJ-W217A-90-00

Unavailable

PANEL, FRONT

2XJ-23391-90-00

Unavailable

SCREW, BINDING(2XJ)

90154-05051-00

$3.98
