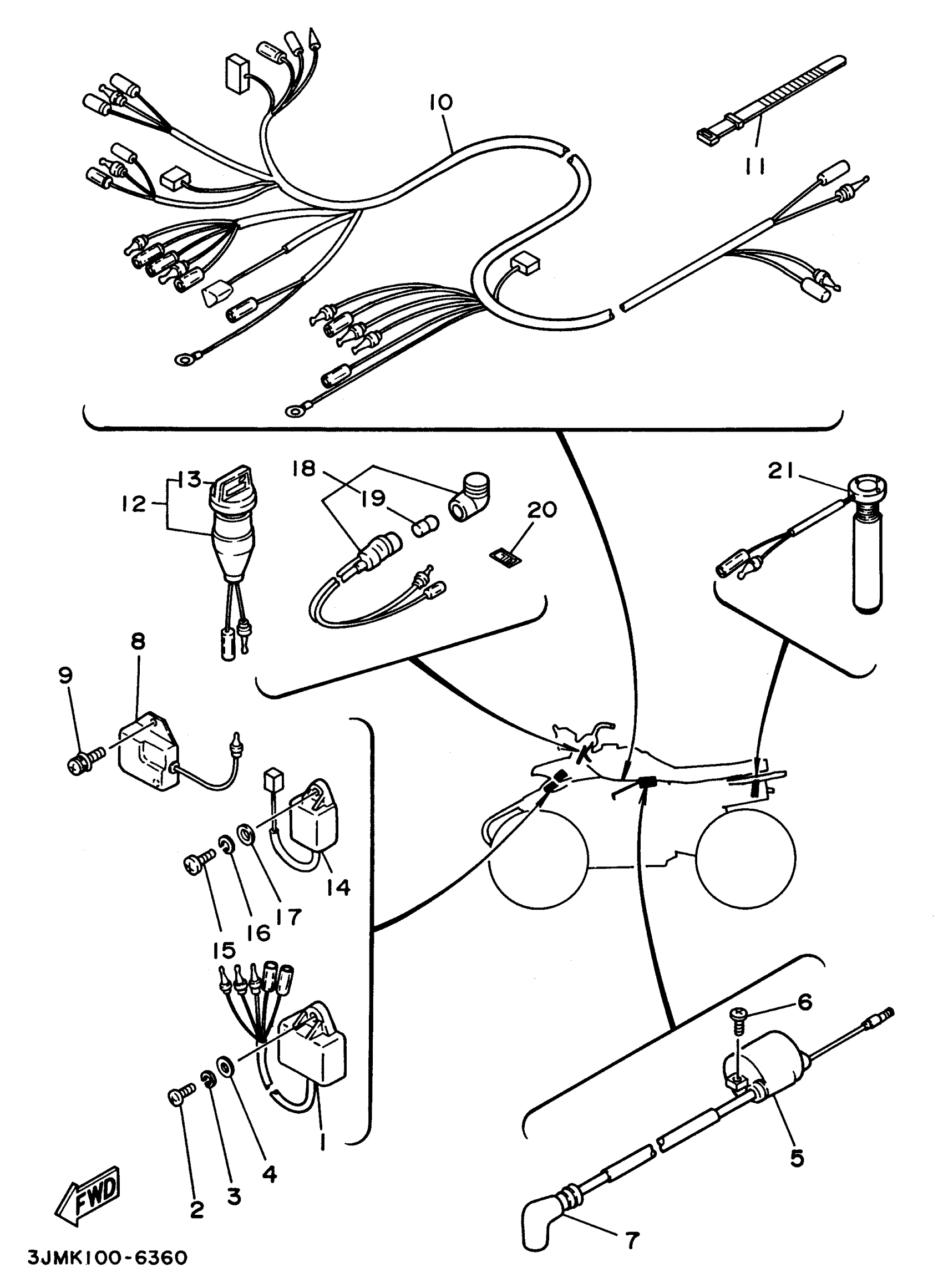

Yamaha YFS200H_MNH (BLASTER) 1996 ELECTRICAL 1 Diagram

CDI UNIT ASSY

3FL-85540-10-00

Unavailable

SCREW, PAN

98517-06020-00

$8.49

WASHER, SPRING

92907-06100-00

$4.25

WASHER(6TA)

92907-06600-00

$2.72

IGNITION COIL ASSY

4RP-82310-26-00

$73.99

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

PLUG CAP ASSY

8DG-82370-00-00

$49.99

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

SCREW, WITH WASHER (5U8)

90159-06056-00

$8.49

WIRE HARNESS ASSEMBLY

3JM-82590-00-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

$4.63

MAIN SWITCH ASSY

2XJ-82510-02-00

$55.99

CAP, KEY

3HN-82579-00-00

$14.49

CONTROL UNIT ASSY

3GG-85590-00-00

Unavailable

SCREW, PAN

98517-06020-00

$8.49

WASHER, SPRING

92907-06100-00

$4.25

WASHER(6TA)

92907-06600-00

$2.72

PILOT LIGHT ASSEMBLY

3FA-83530-10-00

Unavailable

BULB

2XJ-83516-00-00

Unavailable

LABEL

4U3-83585-00-00

Unavailable

OIL LEVEL GAUGE ASSY

2XJ-85720-04-00

Unavailable
