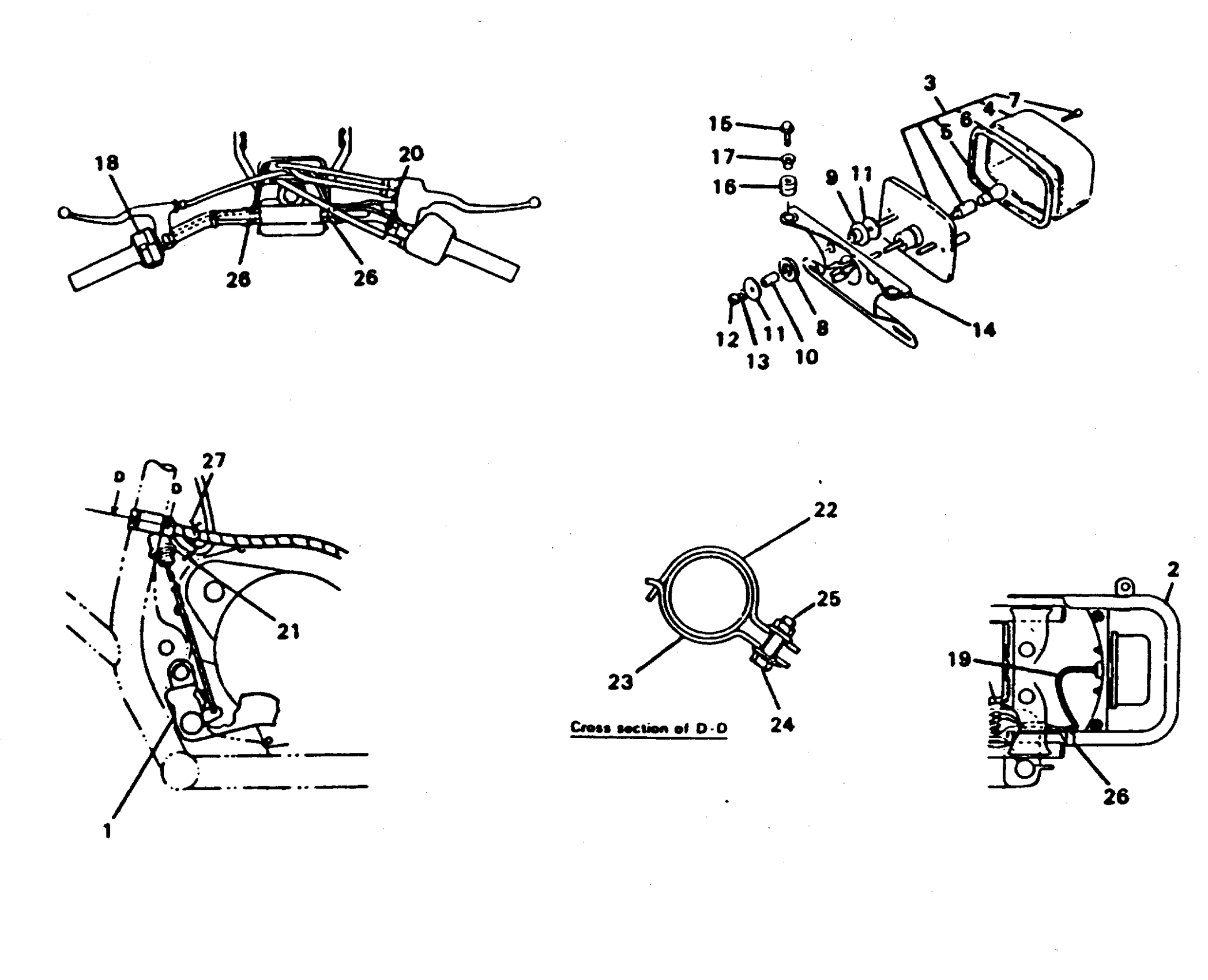

Yamaha YFS200G_MNH (BLASTER) 3JMG 1995 TAILLIGHT KIT MAINE NEW HAMPSHIRE Diagram

#

Description
Price

1

PEDAL, BRAKE

3JM-27211-10-00

Unavailable

2

BAR, CARRY REAR

3JM-2845R-20-00

Unavailable

3

TAILLIGHT UNIT ASSEMBLY

3JM-84710-00-00

Unavailable

4

LENS, TAILLIGHT

21V-84721-00-00

$33.99

5

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

6

GASKET, TAIL LENS

1K8-84523-00-00

Unavailable

7

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

8

WASHER, PLATE (462)

90202-14077-00

$4.29

9

GROMMET

90480-10509-00

Unavailable

10

COLLAR

90387-06387-00

Unavailable

11

WASHER PLATE 248217570000

90201-06074-00

$9.49

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

BRACKET, TAILLIGHT

3GD-84702-10-00

Unavailable

15

BOLT, FLANGE

95822-06025-00

$1.75

16

GROMMET 839774310000

90480-14023-00

Unavailable

17

COLLAR

90387-06158-00

Unavailable

18

SWITCH, HANDLE 3

3JM-93975-00-00

Unavailable

19

WIRE SUB-LEAD

3JM-82509-00-00

Unavailable

20

STOP SWITCH ASSEMBLY

3HN-83980-00-00

Unavailable

21

STOP SWITCH ASSY

3JM-82530-01-00

Unavailable

22

BRACAKET, STOP SWITCH

3JM-21441-00-00

Unavailable

23

STAY, STOP SWITCH

3JM-2144G-00-00

Unavailable

24

BOLT, FLANGE

95817-06016-00

Unavailable

25

NUT,SELF-LOCKING

95607-06200-00

Unavailable

26

BAND, SWITCH CORD

437-83936-01-00

Unavailable

27

CLAMP

90464-10038-00

Unavailable
