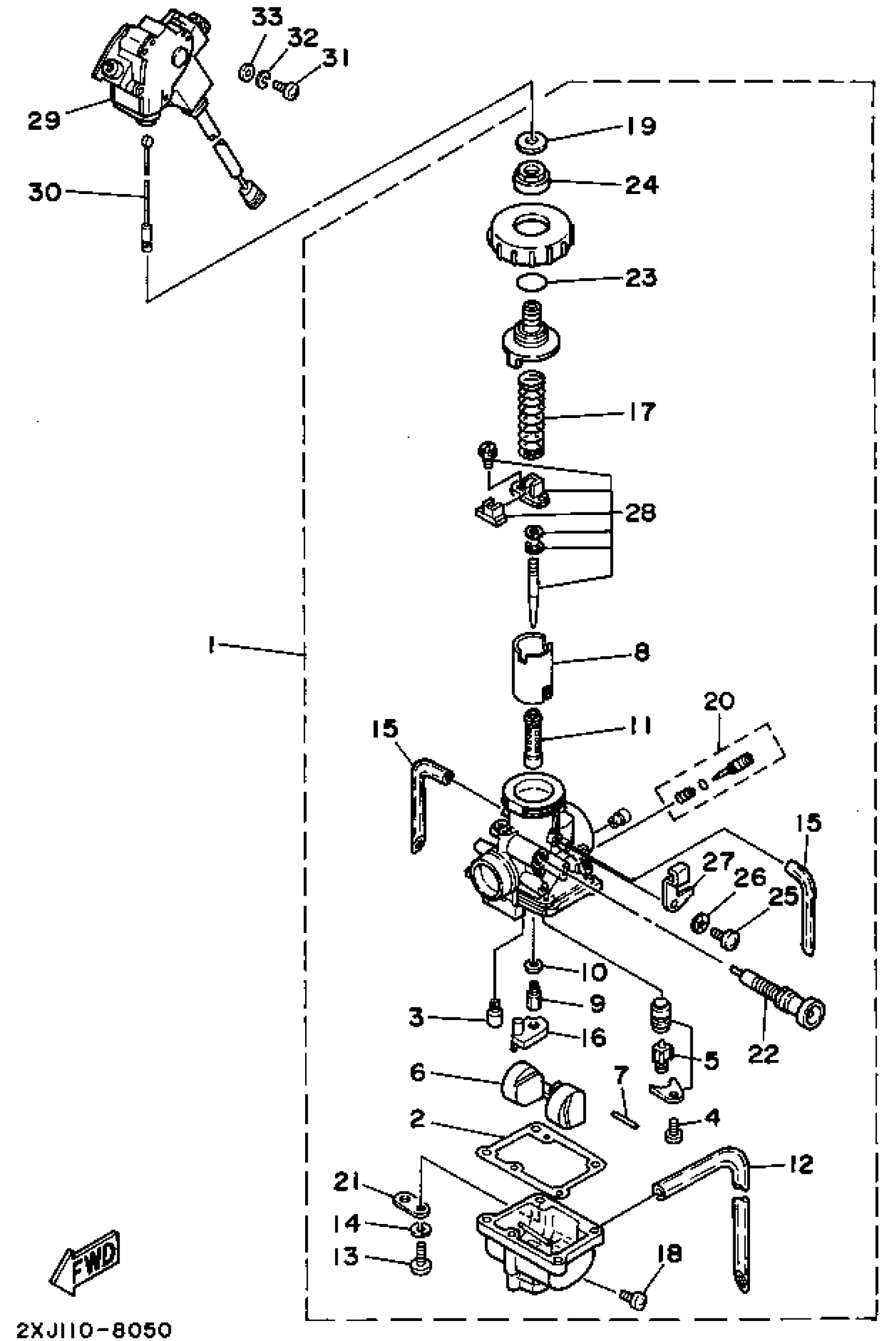

Yamaha YFS200G_MNH (BLASTER) 3JMG 1995 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

2XJ-14101-01-00

Unavailable

2

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

3

JET, PILOT (# 32.5)

260-14142-32-00

Unavailable

4

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

5

NEEDLE VALVE SET

2MA-14107-28-00

$53.99

6

FLOAT

4L0-14185-00-00

$55.99

7

PIN, FLOAT

537-14186-00-00

$7.99

8

. VALVE, THROTTLE 1

2XJ-14112-20-00

Unavailable

9

JET, MAIN #230

137-14143-46-A1

$13.49

10

WASHER,MAIN JET

137-14153-00-00

$7.99

11

NOZZLE, MAIN

4L0-14141-46-00

Unavailable

12

HOSE (L340)

90445-08684-00

$4.29

13

SCREW, PAN HEAD

98517-04016-00

$8.49

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

PIPE

4L0-14197-00-00

$16.49

16

RING

2GU-14153-00-00

Unavailable

17

SPRING, THROTTLE VALVE

248-14131-00-00

Unavailable

18

PLUG, DRAIN

12R-14191-00-00

Unavailable

19

WASHER

256-14954-00-00

Unavailable

20

AIR SCREW SET

10W-14104-00-00

Unavailable

21

PLATE

500-14146-00-00

Unavailable

22

PLUNGER, STARTER

2GU-14171-00-00

Unavailable

23

O-RING (541)

558-14147-00-00

Unavailable

24

. NUT, CABLE ADJUSTING

2GU-14161-00-00

Unavailable

25

GASKET, EXHAUST

98507-05008-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

27

PLATE

2GU-14243-00-00

Unavailable

28

. NEEDLE SET

2XJ-1490J-00-00

Unavailable

29

SWITCH ASSY

2GU-8259E-02-00

Unavailable

30

WIRE, INNER 1

2GU-2633K-00-00

Unavailable

31

SCREW, PAN HEAD(3HH)

98507-03010-00

Unavailable

32

WASHER, SPRING

92990-03100-00

Unavailable

33

WASHER(3SX)

92907-03600-00

Unavailable
