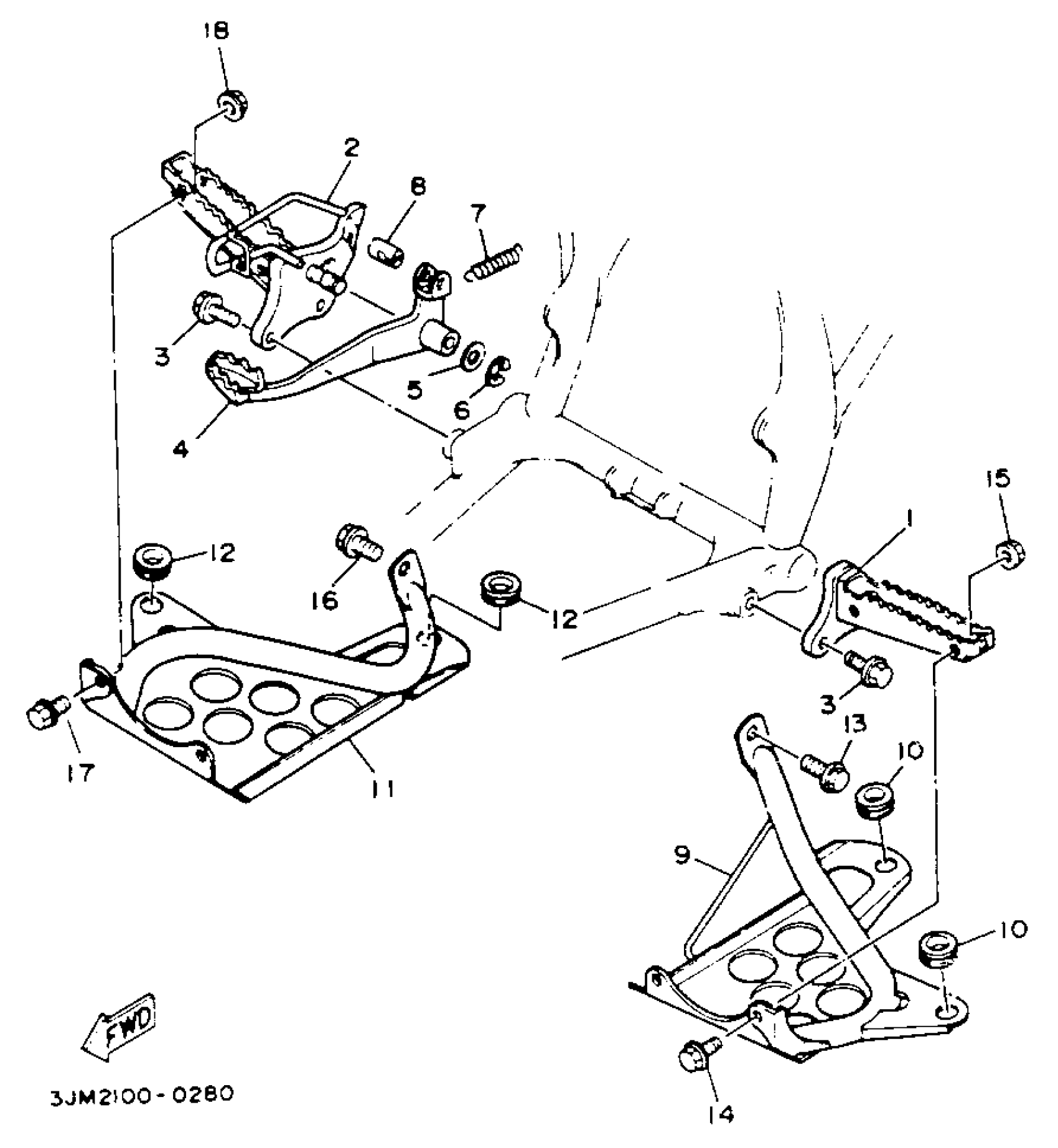

Yamaha YFS200E_MNH (BLASTER) 1993 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

3JM-27411-01-00

Unavailable

2

FOOTREST 2

3JM-27421-01-00

Unavailable

3

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

4

PEDAL, BRAKE

3JM-27211-10-00

Unavailable

5

WASHER, PLATE (3X3)

90201-15797-00

$9.49

6

CIRCLIP (122)

93430-12008-00

$8.49

7

SPRING, TENSION (2X3)

90506-20193-00

$14.99

8

PIN(2XJ)

90249-14202-00

$18.99

9

PLATE 1

3JM-27445-00-00

Unavailable

10

GROMMET

90480-18411-00

$11.49

11

PLATE 2

3JM-27446-00-00

Unavailable

12

GROMMET

90480-18411-00

$11.49

13

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

14

BOLT, BUTTON

92017-08016-00

$5.60

15

NUT, FLANGE

95704-08500-00

$8.49

16

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

17

BOLT, BUTTON

92017-08016-00

$5.60

18

NUT, FLANGE

95704-08500-00

$8.49
