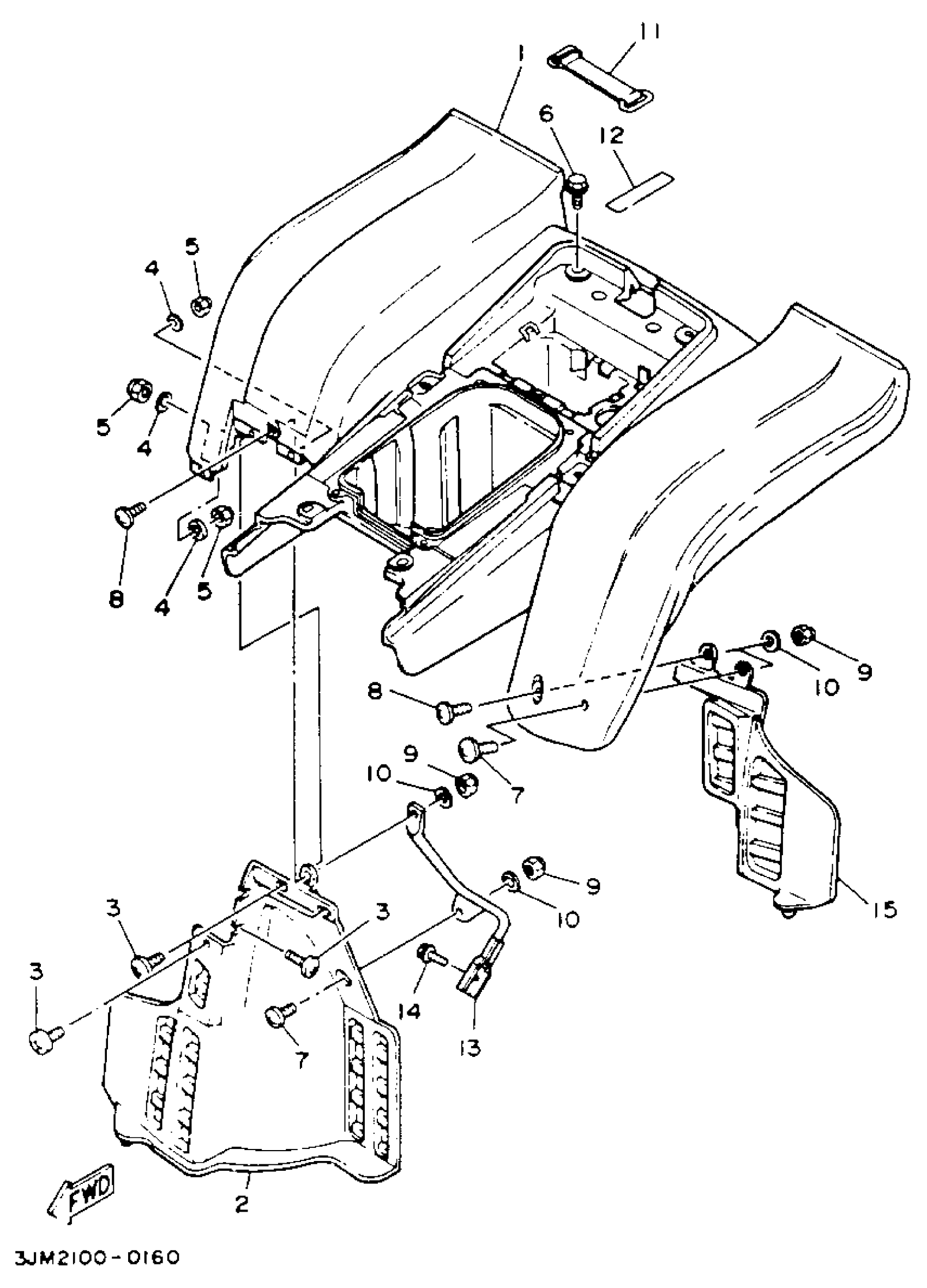

Yamaha YFS200E_MNH (BLASTER) 1993 REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR

2XJ-W2161-71-00

Unavailable

2

FLAP

3JM-21621-00-00

$76.31

3

SCREW, BINDING (8J0)

90154-05005-00

$3.65

4

. WASHER, PLAIN

92990-05200-00

$4.29

5

NUT, U

95617-05100-00

$6.22

6

BOLT, WITH WASHER

90119-06152-00

$2.56

7

SCREW(3JM)

90149-06306-00

$2.76

8

SCREW, ROUND HEAD(3JM)

90150-06037-00

$5.96

9

NUT, SELF-LOCKING

95617-06100-00

$2.17

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

11

BAND, BATTERY

2T4-82131-00-00

$7.40

12

O-RING(2HT)

93210-61750-00

$6.22

13

STAY, FENDER 2

2XJ-21614-00-00

Unavailable

14

BOLT, BUTTON HEAD

92017-08012-00

$5.76

15

FLAP

3JM-21691-00-00

$57.05
