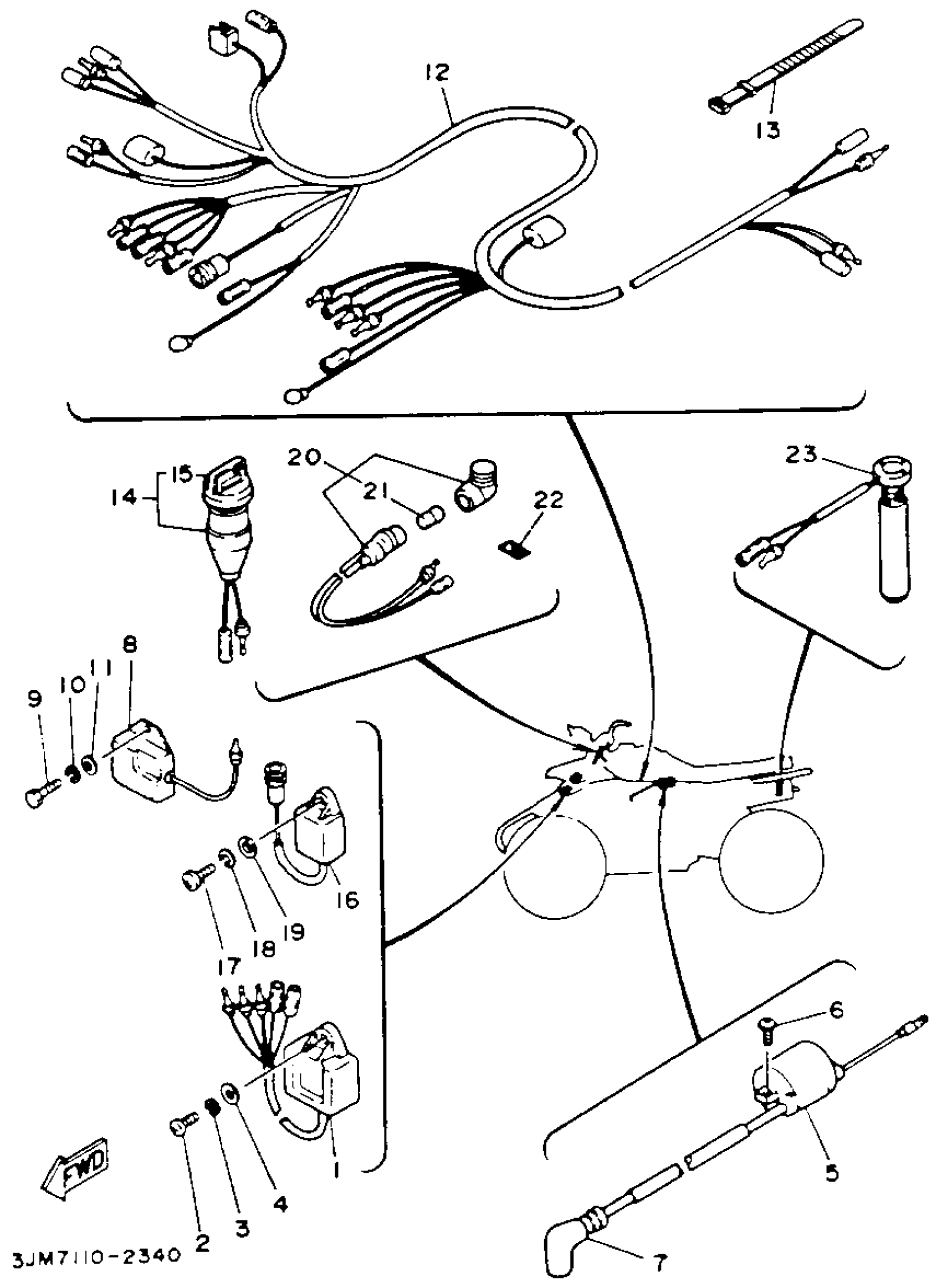

Yamaha YFS200E_MNH (BLASTER) 1993 ELECTRICAL 1 Diagram
#
Description
Price
1
CDI UNIT ASSY
3FL-85540-10-00
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
6
SCREW, PAN HEAD
98580-06016-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
12
WIRE HARNESS ASSEMBLY
2XJ-82590-00-00
Unavailable
16
CONTROL UNIT ASSEMBLY
2GU-85590-M0-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
20
PILOT LIGHT ASSEMBLY
3FA-83530-10-00
Unavailable
21
BULB
2XJ-83516-00-00
Unavailable
22
LABEL
4U3-83585-00-00
Unavailable
23
OIL LEVEL GAUGE ASSY
2XJ-85720-04-00
Unavailable
