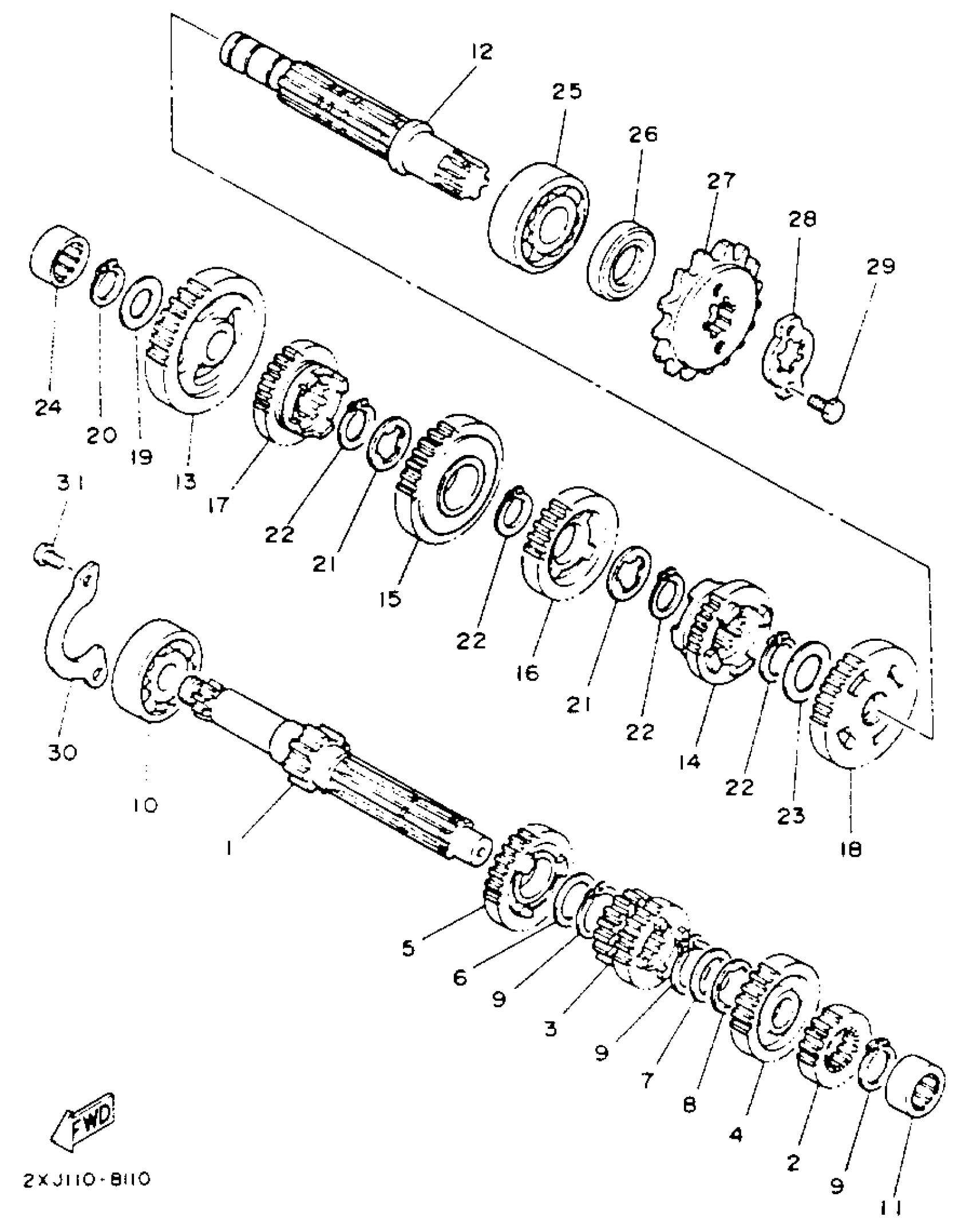

Yamaha YFS200E (BLASTER) 1993 TRANSMISSION Diagram
#
Description
Price
1
AXLE, MAIN
2XJ-17411-00-00
Unavailable
2
GEAR, 2ND PINION (14T)
2XJ-17121-00-00
Unavailable
3
GEAR, 3RD-4TH PINION (15T/16T)
2XJ-17131-00-00
Unavailable
4
GEAR, 6TH PINION (21T)
2XJ-17161-00-00
Unavailable
5
GEAR, 5TH PINION
2XJ-17151-00-00
Unavailable
8
WASHER
90209-16133-00
Unavailable
12
AXLE, DRIVE
37F-17421-01-00
Unavailable
13
GEAR, 1ST WHEEL (34T)
2XJ-17211-00-00
Unavailable
14
GEAR, 6TH WHEEL (19T)
2XJ-17261-00-00
Unavailable
15
GEAR, 3RD WHEEL
2XJ-17231-00-00
Unavailable
16
GEAR, 4TH WHEEL (20T)
2XJ-17241-00-00
Unavailable
17
GEAR, 5TH WHEEL (19T)
2XJ-17251-00-00
Unavailable
18
GEAR, 2ND WHEEL
2XJ-17221-01-00
Unavailable
19
WASHER, PLATE(37F)
90201-150J4-00
Unavailable
20
CIRCLIP
93440-15012-00
Unavailable
21
WASHER (537)
90209-18135-00
Unavailable
22
CIRCLIP (537)
93410-22039-00
Unavailable
23
WASHER, PLATE (537)
90201-22555-00
Unavailable
24
BEARING, CYLINDRICAL(37F)
93311-51554-00
Unavailable
25
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
26
OIL SEAL (20X38X5-517)
93102-20143-00
Unavailable
27
SPROCKET, DRIVE (13T)(2XJ)
93832-13164-00
Unavailable
28
HOLDER, SPROCKET
5H0-17456-00-00
Unavailable
29
BOLT, HEXAGON
97017-06012-00
Unavailable
30
PLATE, COVER
10V-17471-00-00
Unavailable
31
SCREW, PAN
98517-06012-00
Unavailable
