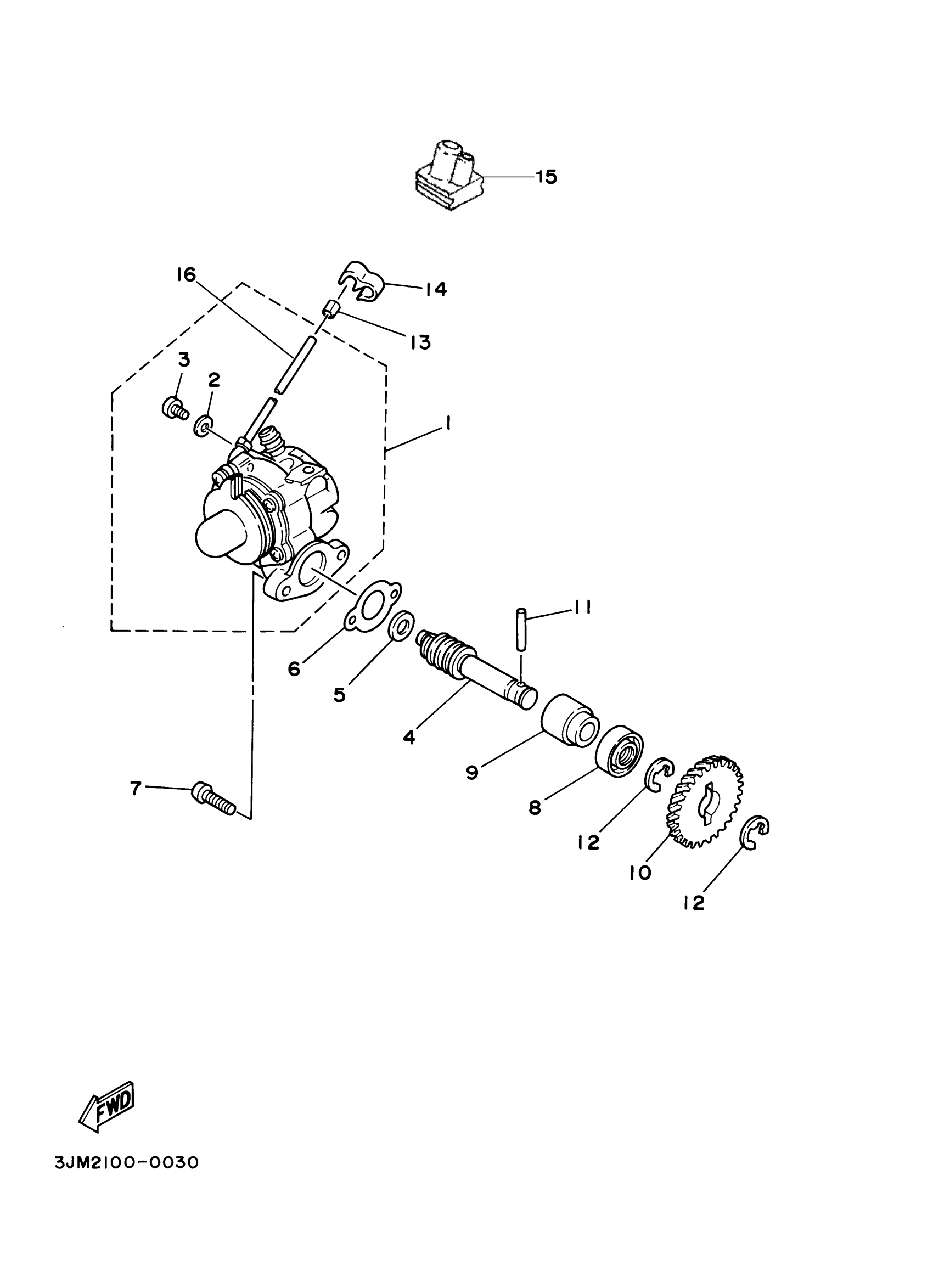

Yamaha YFS200E (BLASTER) 1993 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSEMBLY
2XJ-13101-00-00
Unavailable
3
SCREW, BIND
98980-04008-00
Unavailable
4
SHAFT, WORM
10V-13175-00-00
Unavailable
5
WASHER, PLATE (1E7)
90201-08624-00
Unavailable
7
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
9
METAL, WORM SHAFT OUTER
137-13176-00-00
Unavailable
10
GEAR, PUMP DRIVE
10V-13178-01-00
Unavailable
14
CLIP (867)
90468-15020-00
Unavailable
15
HOLDER, OIL PIPE
10V-13174-00-00
Unavailable
16
HOSE
90445-054F8-00
Unavailable
