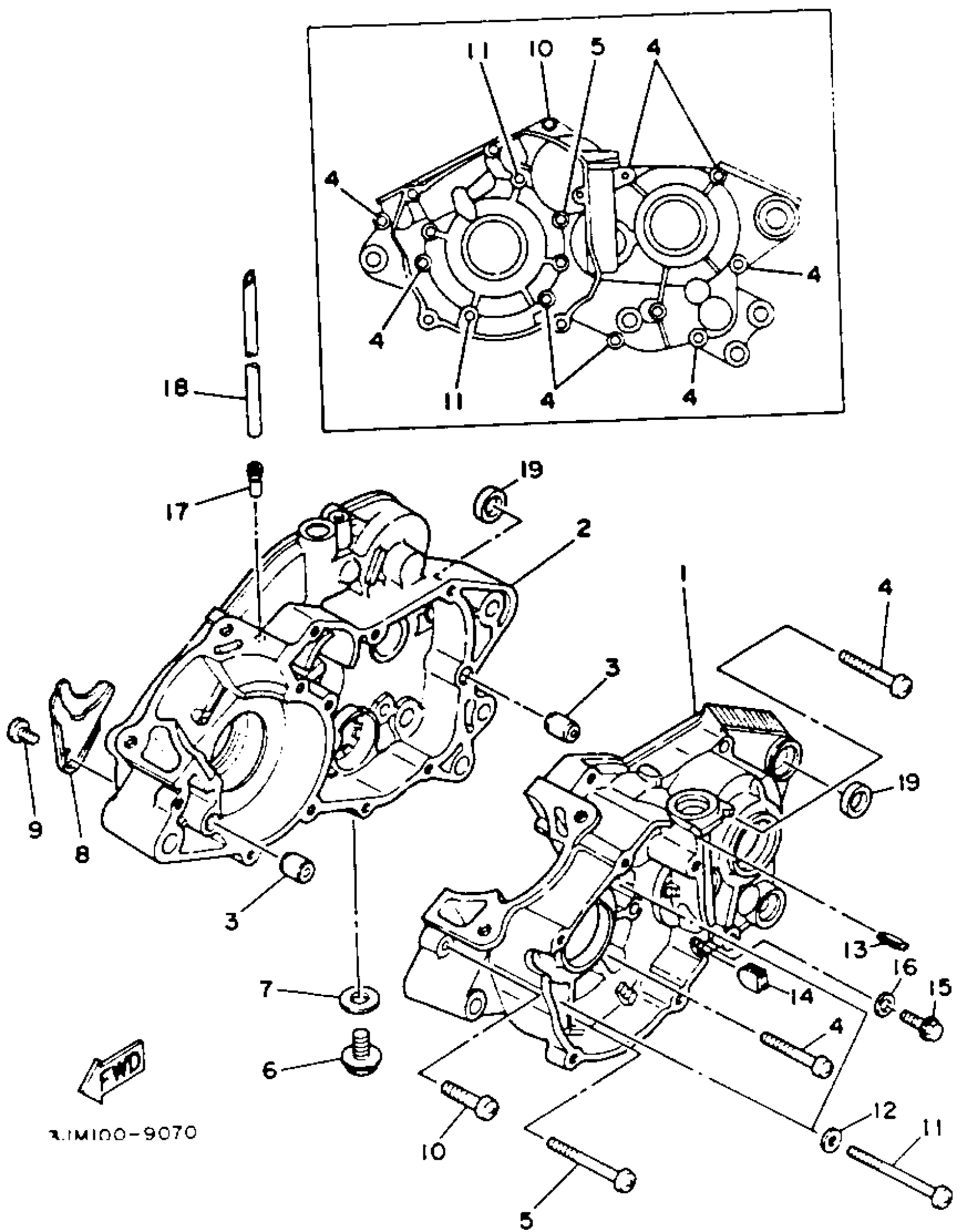

Yamaha YFS200D_MNH (BLASTER) 1992 CRANKCASE Diagram

CRANKCASE 1

2XJ-15111-01-00

$397.99

CRANKCASE 2

2XJ-15121-00-00

Unavailable

PIN, DOWEL

99530-12016-00

$4.89

SCREW PAN HEAD

98580-06545-00

$5.60

SCREW, BIND (JH1)

98580-06560-00

Unavailable

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$3.08

WASHER, PLATE 3412175700

90201-12172-00

$3.93

HOLDER

37F-15128-00-00

Unavailable

SCREW, PAN

98507-08010-00

$8.49

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

SCREW PAN HEAD

98580-06575-00

$12.49

WASHER, PLAIN (646)

92990-06600-00

$2.80

GROMMET (1T6)

90480-01209-00

$5.60

PLUG(2XJ)

90338-09206-00

$9.49

BOLT, WASHER BASED (7H3)

90105-10147-00

$10.49

GASKET (5R6)

90430-10171-00

Unavailable

. CONNECTOR, SUCTION PIPE

137-13115-01-00

Unavailable

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

WASHER, PLATE

90201-166L5-00

Unavailable
