Description

Price

1

FENDER,REAR

2XJ-W2161-61-00

Unavailable

1

FENDER,REAR

2XJ-W2161-71-00

Unavailable

2

FLAP

3JM-21621-00-00

$94.99

3

SCREW, BINDING (8J0)

90154-05005-00

$4.73

4

. WASHER, PLAIN

92990-05200-00

Unavailable

5

NUT, U

95617-05100-00

$9.49

6

BOLT, WITH WASHER

90119-06152-00

$7.49

7

SCREW(3JM)

90149-06306-00

$8.49

8

SCREW, ROUND HEAD(3JM)

90150-06037-00

$9.49

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

BAND, BATTERY

2T4-82131-00-00

$8.99

12

O-RING(2HT)

93210-61750-00

$8.49

13

STAY, FENDER 2

2XJ-21614-00-00

Unavailable

14

BOLT, BUTTON HEAD

92017-08012-00

$8.49

15

FLAP

3JM-21691-00-00

Unavailable

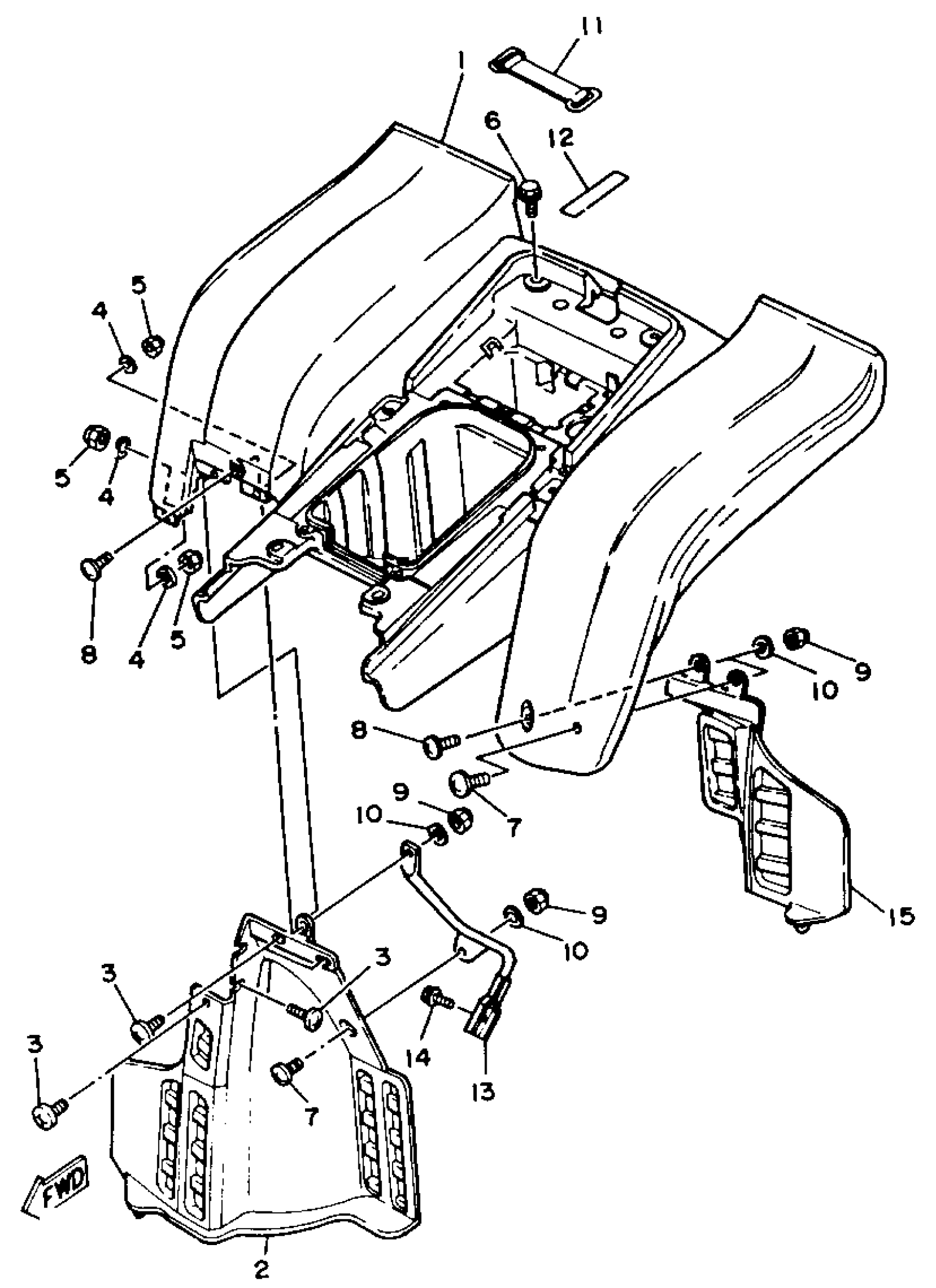

Yamaha YFS200D (BLASTER) 1992 REAR FENDER Diagram

FENDER,REAR

FENDER,REAR

FLAP

SCREW, BINDING (8J0)

. WASHER, PLAIN

NUT, U

BOLT, WITH WASHER

SCREW(3JM)

SCREW, ROUND HEAD(3JM)

NUT, SELF-LOCKING

YBS66-6 WASHER, PLAIN

BAND, BATTERY

O-RING(2HT)

STAY, FENDER 2

BOLT, BUTTON HEAD

FLAP
