Description

Price

1

PRIMARY DRIVEN GEAR COMP.

3JM-16150-01-00

$302.99

2

BOSS, CLUTCH

37F-16371-01-00

$111.99

3

PLATE, CLUTCH 1

1V1-16324-10-00

$22.99

4

PLATE, FRICTION

3XP-16321-00-00

$19.99

5

PLATE, THRUST 1

2TV-16154-00-00

Unavailable

6

PLATE, PRESSURE 1

37F-16351-00-00

$56.99

7

SPRING, COMPRESSION (3M5)

90501-20568-00

$12.49

8

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

9

PLATE, FRICTION 2

1HX-16331-00-00

$25.99

10

SPRING, CLUTCH BOSS

1HX-16383-00-00

$59.99

11

GEAR, PRIMARY DRIVE

4FU-16111-00-00

Unavailable

12

NUT (4V2)

90179-12335-00

Unavailable

13

WASHER, CONICAL SPRING(2TV)

90208-18046-00

$11.49

14

WASHER, PLATE(2YY)

90201-180P2-00

$9.49

15

WASHER, LOCK(2RH)

90215-12271-00

$9.49

16

NUT(2RH)

90170-12370-00

Unavailable

17

PLATE, PUSH

1W1-16358-01-00

Unavailable

18

ROD, PUSH

1W1-16356-02-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

BALL

93503-16003-00

Unavailable

22

ROD, PUSH

2J5-16357-00-00

Unavailable

23

PUSH LEVER ASSY

37F-16380-02-00

Unavailable

24

SPRING, TORSION (10V)

90508-20555-00

Unavailable

25

WASHER PLATE 150251530000

90201-14217-00

Unavailable

26

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

27

BEARING, CYLINDRICAL (3R3)

93315-21429-00

Unavailable

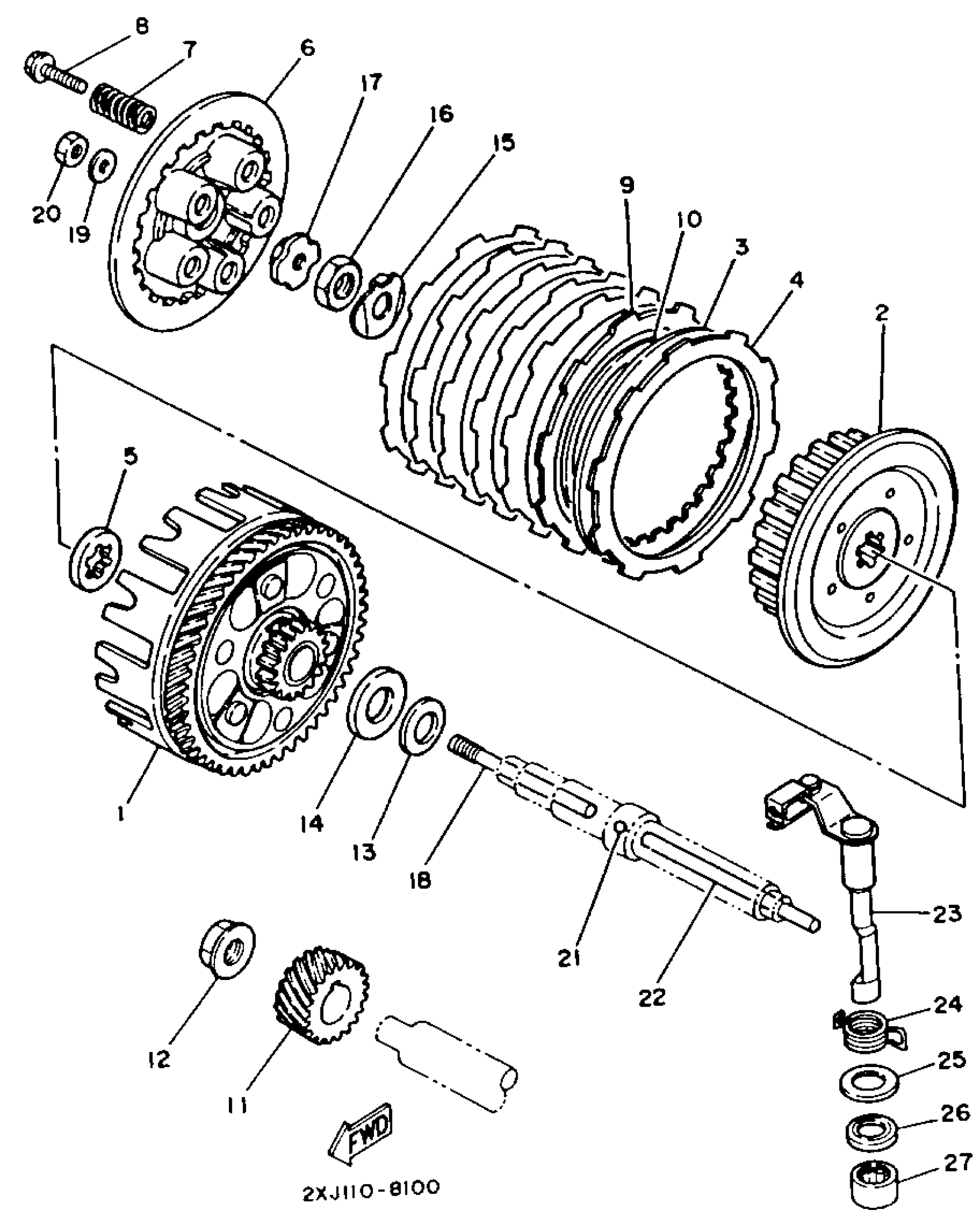

Yamaha YFS200D (BLASTER) 1992 CLUTCH Diagram

PRIMARY DRIVEN GEAR COMP.

BOSS, CLUTCH

PLATE, CLUTCH 1

PLATE, FRICTION

PLATE, THRUST 1

PLATE, PRESSURE 1

SPRING, COMPRESSION (3M5)

BOLT, HEXAGON WITH WASHER(353)

PLATE, FRICTION 2

SPRING, CLUTCH BOSS

GEAR, PRIMARY DRIVE

NUT (4V2)

WASHER, CONICAL SPRING(2TV)

WASHER, PLATE(2YY)

WASHER, LOCK(2RH)

NUT(2RH)

PLATE, PUSH

ROD, PUSH

YBS66-6 WASHER, PLAIN

NUT, HEXAGON

BALL

ROD, PUSH

PUSH LEVER ASSY

SPRING, TORSION (10V)

WASHER PLATE 150251530000

OIL SEAL (14X25X5-2H7)

BEARING, CYLINDRICAL (3R3)
