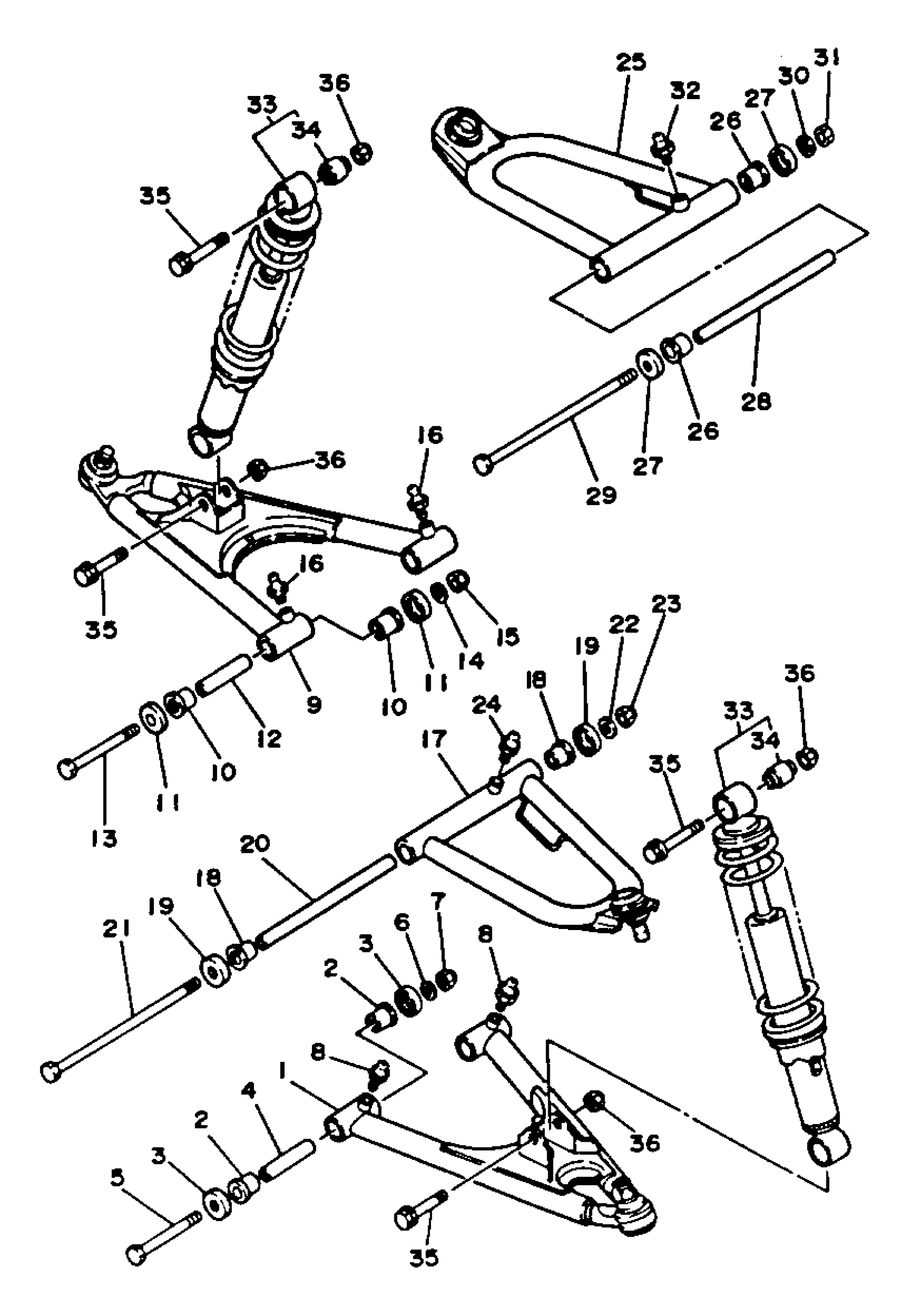

Yamaha YFS200B_MNH (BLASTER) 1991 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM COMP. (LEFT)

3JM-23570-00-35

Unavailable

2

BUSH, SOLID(3GG)

90381-15088-00

$21.99

3

COVER, THRUST 1

1UY-23517-01-00

$6.99

4

COLLAR(1UY)

90387-101R3-00

$19.99

5

BOLT(1UY)

90101-10655-00

$9.49

6

WASHER (7A9)

90201-100F7-00

$9.49

7

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

8

NIPPLE, GREASE

93700-06M03-00

Unavailable

9

FRONT LOWER ARM COMP. (RIGHT)

3JM-23580-00-35

Unavailable

10

BUSH, SOLID(3GG)

90381-15088-00

$21.99

11

COVER, THRUST 1

1UY-23517-01-00

$6.99

12

COLLAR(1UY)

90387-101R3-00

$19.99

13

BOLT(1UY)

90101-10655-00

$9.49

14

WASHER (7A9)

90201-100F7-00

$9.49

15

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

16

NIPPLE, GREASE

93700-06M03-00

Unavailable

17

FRONT UPPER ARM COM.(LEFT)

2XJ-23540-01-35

Unavailable

18

BUSH, SOLID(3GG)

90381-15088-00

$21.99

19

COVER, THRUST 1

1UY-23517-01-00

$6.99

20

COLLAR

90387-101U6-00

Unavailable

21

SHAFT, PIVOT

336-22141-00-00

Unavailable

22

WASHER (7A9)

90201-100F7-00

$9.49

23

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

24

NIPPLE, GREASE

93700-06M03-00

Unavailable

25

FRONT UPPER ARM COMP.(RIGHT)

2XJ-23550-01-35

Unavailable

26

BUSH, SOLID(3GG)

90381-15088-00

$21.99

27

COVER, THRUST 1

1UY-23517-01-00

$6.99

28

COLLAR

90387-101U6-00

Unavailable

29

SHAFT, PIVOT

336-22141-00-00

Unavailable

30

WASHER (7A9)

90201-100F7-00

$9.49

31

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

32

NIPPLE, GREASE

93700-06M03-00

Unavailable

33

SHOCK ABSORBER ASSEMBLY

2XJ-23350-00-26

Unavailable

33

SHOCK ABSORBER ASSEMBLY

2XJ-23350-00-P1

Unavailable

34

. DAMPER, BUSH B

2XJ-2331R-00-00

Unavailable

35

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

36

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable
