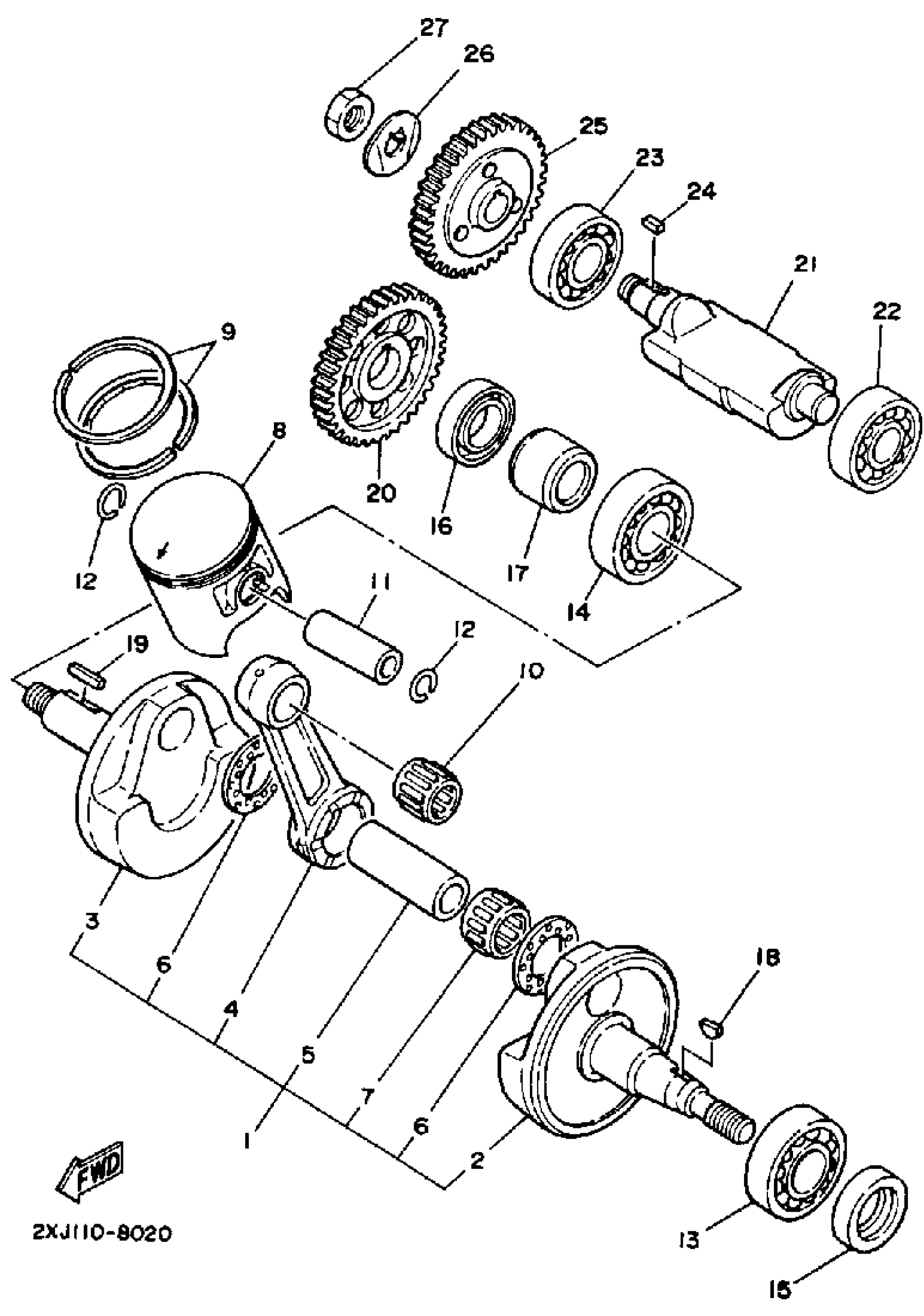

Yamaha YFS200A (BLASTER) 3JM2 1990 CRANKSHAFT PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSY
37F-11400-00-00
Unavailable
2
. CRANK 1
37F-11412-00-00
Unavailable
3
. CRANK 2
37F-11422-00-00
Unavailable
6
WASHER (29L)
90209-22248-00
Unavailable
7
BEARING, CYLINDRICAL(3XP)
93310-523D2-00
Unavailable
8
PISTON (STD)
2XJ-11631-01-97
Unavailable
8
PISTON (0.25MM O/S)
2XJ-11635-01-00
Unavailable
9
PISTON RING SET (0.25MM O/S)
3JM-11601-10-00
Unavailable
9
PISTON RING SET (0.50MM O/S)
3JM-11601-20-00
Unavailable
11
PIN, PISTON
4L0-11633-00-00
Unavailable
12
CIRCLIP (1L9)
93450-17044-00
Unavailable
13
BEARING(43G)
93306-20562-00
Unavailable
14
BEARING(1TG)
93306-30556-00
Unavailable
15
OIL SEAL(43G)
93102-25331-00
Unavailable
16
OIL SEAL(3KX)
93103-32171-00
Unavailable
17
COLLAR(37F)
90387-206K3-00
Unavailable
18
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
19
KEY, STRAIGHT (8R4)
90282-05047-00
Unavailable
20
GEAR, DRIVE (43T)
10V-11536-01-00
Unavailable
21
WEIGHT 1
37F-11454-00-00
Unavailable
22
BRG, R-B (7H4)
93306-20211-00
Unavailable
23
BEARING(37F)
93306-20335-00
Unavailable
24
KEY, STRAIGHT(34K)
90282-05065-00
Unavailable
25
BALANCER WEIGHT GEAR COMP.
37F-11530-00-00
Unavailable
26
WASHER, LOCK(2RH)
90215-12272-00
Unavailable
27
NUT(37F)
90170-12337-00
Unavailable
