Description

Price

1

REAR ARM

2NL-22110-01-00

Unavailable

2

O-RING (11H)

93210-59531-00

$15.99

3

OIL SEAL (2NL)

93110-33021-00

Unavailable

4

OIL SEAL (4H7)

93101-35097-00

$22.99

5

BEARING, CYLINDRICAL (23X)

93317-32231-00

$44.99

6

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

7

COVER, THRUST

2K6-22128-01-00

$31.99

8

WASHER, PLATE(2VM)

90201-247L2-00

$10.49

9

BUSH

2NL-22184-00-00

Unavailable

10

SHAFT, PIVOT

2NL-22141-00-00

Unavailable

11

WASHER, PLATE (5X6)

90201-160F6-00

$8.49

12

NUT, SELF-LOCKING

90185-16002-00

$16.99

13

COVER

(2NL-2219X-00-00)

Unavailable

14

STOPPER, MAIN STAND

128-27114-00-00

$7.99

15

BOLT, FLANGE

95817-08012-00

$5.49

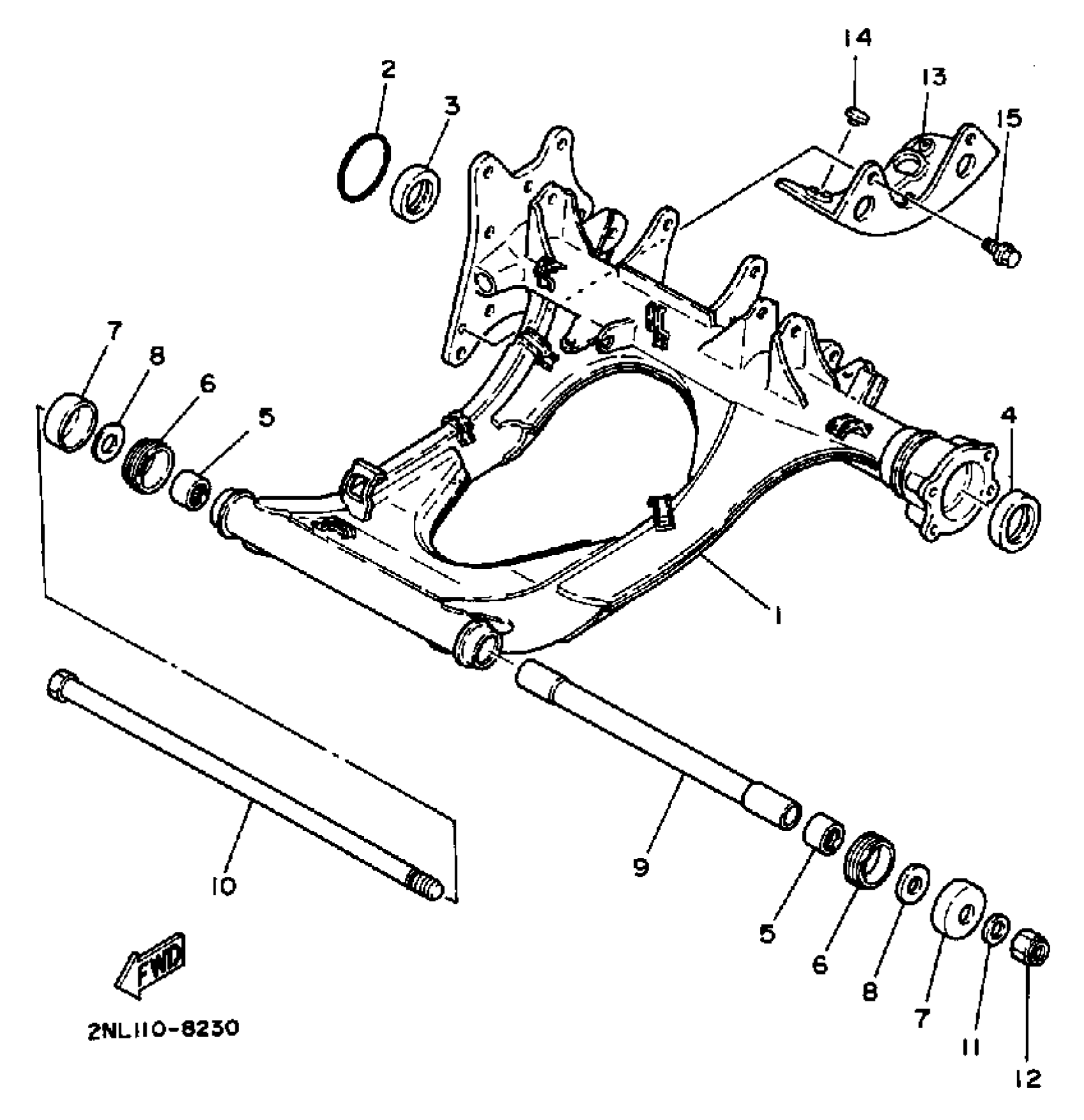

Yamaha YFP350U (TERRA PRO) 1988 SWING ARM Diagram

REAR ARM

O-RING (11H)

OIL SEAL (2NL)

OIL SEAL (4H7)

BEARING, CYLINDRICAL (23X)

OIL SEAL (35X41.5X8-483)

COVER, THRUST

WASHER, PLATE(2VM)

BUSH

SHAFT, PIVOT

WASHER, PLATE (5X6)

NUT, SELF-LOCKING

COVER

STOPPER, MAIN STAND

BOLT, FLANGE
