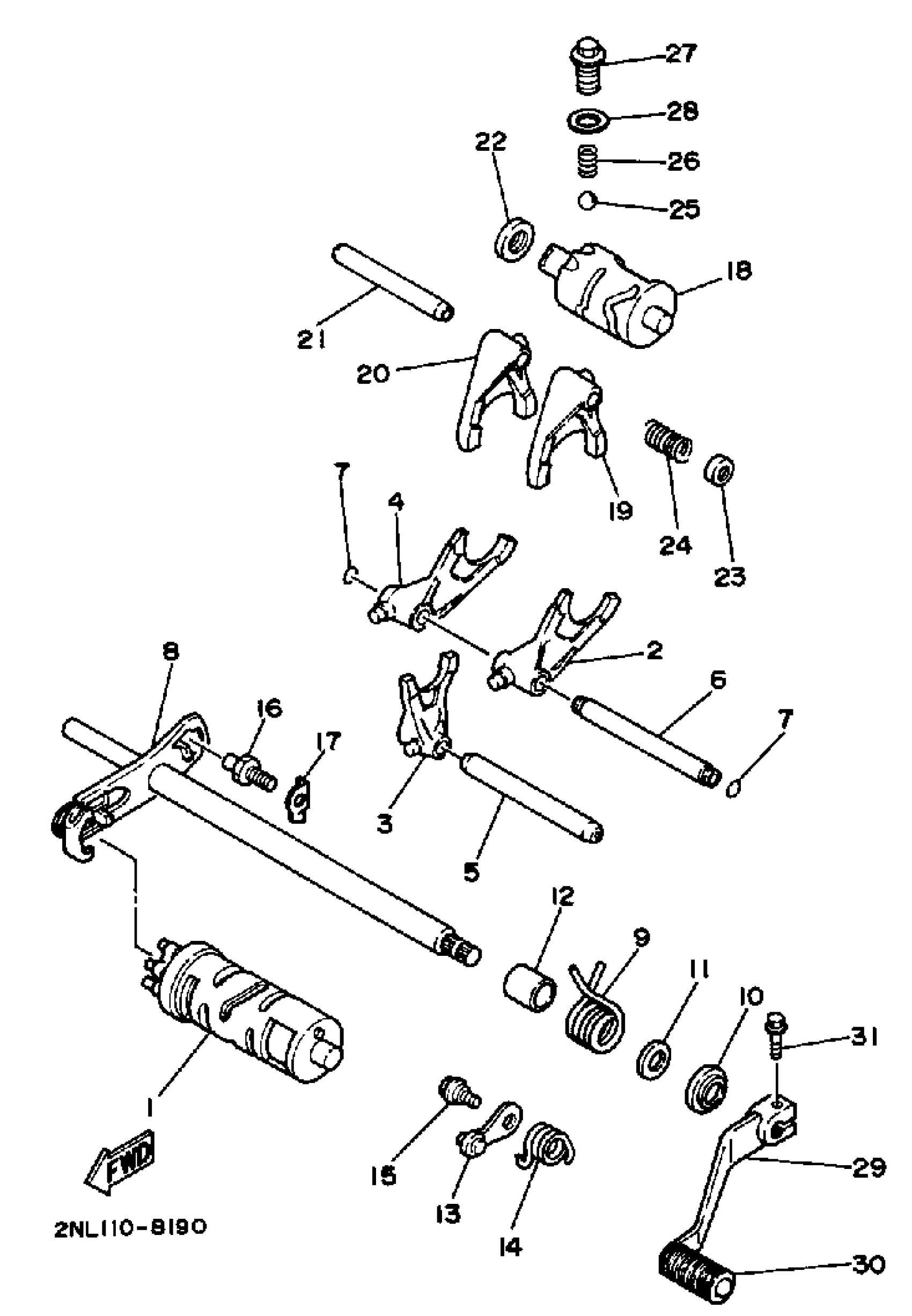

Yamaha YFP350U (TERRA PRO) 1988 SHIFT CAM FORK Diagram
#
Description
Price
1
SHIFT CAM ASSY
4GB-18540-00-00
Unavailable
3
FORK, SHIFT 2
4GB-18512-00-00
Unavailable
4
FORK, SHIFT 3
2NL-18513-00-00
Unavailable
5
BAR, SHIFT FORK GUIDE 1
1UY-18531-00-00
Unavailable
7
O-RING (21V)
93210-07590-00
Unavailable
8
SHIFT SHAFT ASSEMBLY 1
2NL-18101-01-00
Unavailable
9
SPRING, TORSION(1UY)
90508-32711-00
Unavailable
12
SPACER(1UY)
90560-14284-00
Unavailable
13
STOPPER LEVER ASSY
1UY-18140-00-00
Unavailable
16
STOPPER, SCREW
5VK-18127-00-00
Unavailable
17
WASHER, LOCK(1UY)
90215-08260-00
Unavailable
18
CAM, SHIFT 2
2HR-18546-06-00
Unavailable
19
FORK, SHIFT 1
2HR-18311-00-00
Unavailable
20
FORK, SHIFT 2
1YW-18312-00-00
Unavailable
21
BAR, SHIFT FORK GUIDE 2
5Y1-18535-00-00
Unavailable
22
OIL SEAL (3X3)
93102-15212-00
Unavailable
23
CAP, SPRING
2HR-18323-00-00
Unavailable
24
SPRING (2HR)
90501-147E8-00
Unavailable
25
BALL
93503-08007-00
Unavailable
26
SPRING, COMPRESSION (465)
90501-10353-00
Unavailable
27
BOLT, WASHER BASED(59V)
90105-14367-00
Unavailable
28
GASKET(59V)
90430-14194-00
Unavailable
29
PEDAL, SHIFT
2NL-18111-00-00
Unavailable
30
COVER, CHANGE PEDAL
132-18113-01-00
Unavailable
31
BOLT, HEXAGON
97017-06020-00
Unavailable
