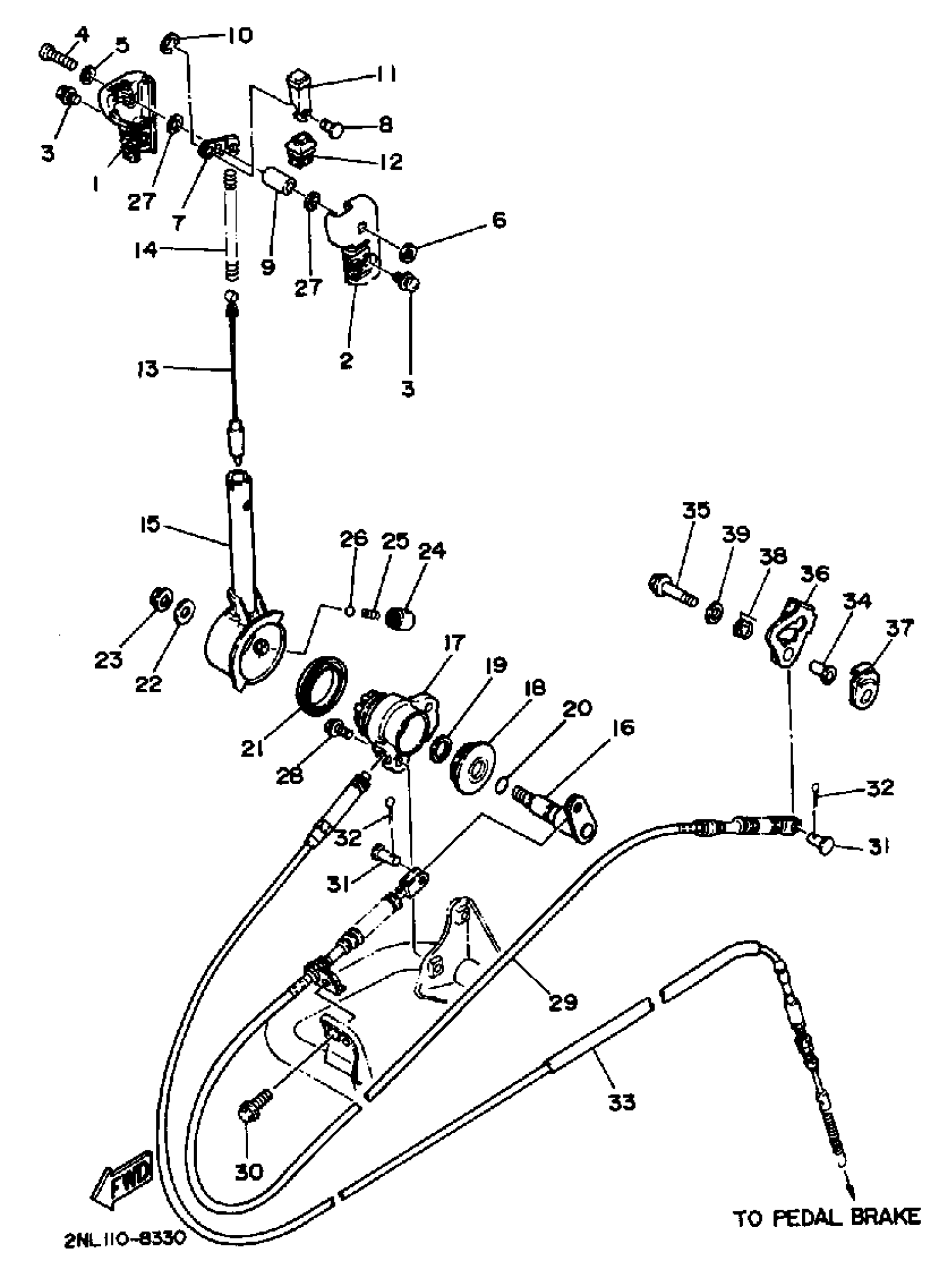

Yamaha YFP350U (TERRA PRO) 1988 REVERSE LEVER Diagram
#
1
GRIP, LEVER
2NL-26153-01-00
Unavailable
2
CAP, GRIP
2NL-2628J-01-00
Unavailable
3
SCREW, WITH WASHER
90159-05055-00
Unavailable
7
JOINT
2NL-2629M-00-00
Unavailable
8
PIN, SPEC''L SHAPE
90249-04196-00
Unavailable
10
CIRCLIP(6L5)
99080-03600-00
Unavailable
11
LEVER, LOCK (BLACK)
2NL-26157-01-00
Unavailable
12
SEAL
2NL-2639G-01-00
Unavailable
13
STOPPER, HANDLE BAR
2NL-26114-00-00
Unavailable
14
SPRING, COMPRESSION
90501-126E5-00
Unavailable
15
LEVER, REVERSE
2NL-26152-00-00
Unavailable
16
SHAFT, REVERSE LVR
2NL-26155-00-00
Unavailable
17
BODY, REVERSE LEVER
2NL-26151-00-00
Unavailable
18
CAP, RUBBER
2NL-26329-00-00
Unavailable
19
WASHER, PLATE (25H)
90201-162H4-00
Unavailable
20
O-RING(3LD)
93210-12790-00
Unavailable
21
OIL SEAL,SR-TYPE
93112-48009-00
Unavailable
22
WASHER, PLATE(8AT)
90201-081R9-00
Unavailable
23
NUT
90179-08428-00
Unavailable
24
NUT 1
2NL-26294-00-00
Unavailable
25
SPRING, COMPRESSION
90501-157E9-00
Unavailable
26
BALL (5X4)
93521-64032-00
Unavailable
27
WASHER, PLAIN (646)
92990-05600-00
Unavailable
28
BOLT, FLANGE
95817-06020-00
Unavailable
29
WIRE, CONTROL 1
2NL-2637E-00-00
Unavailable
30
BOLT, FLANGE
95817-10020-00
Unavailable
31
PIN
91701-06016-00
Unavailable
32
PIN, COTTER
91490-20025-00
Unavailable
33
WIRE, CONTROL 2
2NL-2637F-00-00
Unavailable
34
COLLAR
90387-061F8-00
Unavailable
35
BOLT, FLANGE
95817-06035-00
Unavailable
36
LEVER
2NL-18191-00-00
Unavailable
37
LEVER
2NL-18198-00-00
Unavailable
38
SPRING, TORSION(1YW)
90508-35764-00
Unavailable
39
WASHER, PLATE
90201-06M02-00
Unavailable
