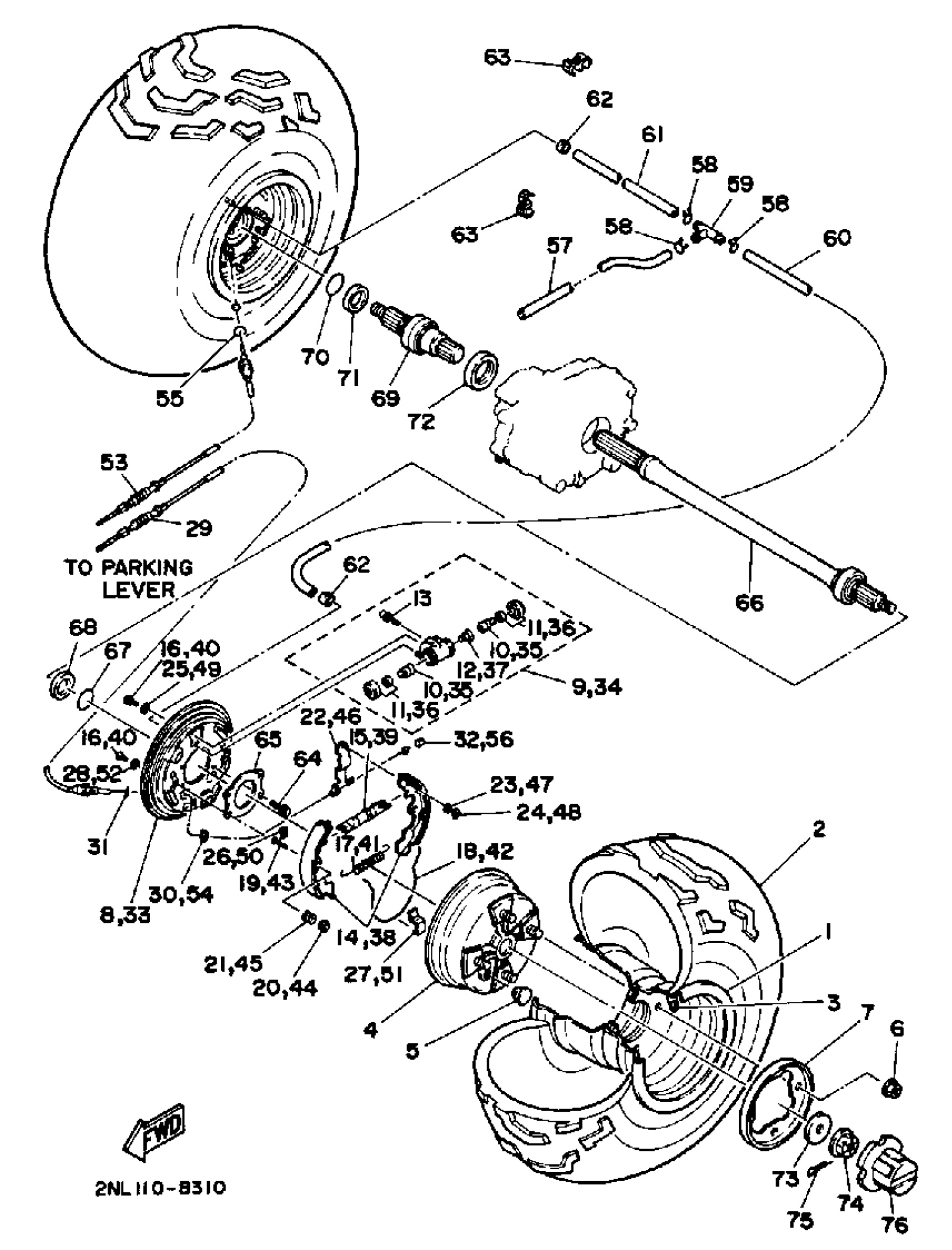

Yamaha YFP350U (TERRA PRO) 1988 REAR WHEEL Diagram
#
1
WHEEL, REAR
2NL-25390-00-35
Unavailable
2
BS AT24X11-9 DH10
94111-092R8-00
Unavailable
4
DRUM BRAKE
2NL-2531E-00-00
Unavailable
5
CAP
2NL-25335-01-00
Unavailable
7
REINFORCEMENT
2NL-2538F-00-00
Unavailable
8
BCKG PLT SUB ASSEMBLY 1ASSEMBLY (L)
3JN-27208-00-00
Unavailable
9
WHEEL CYLINDER 1 R/H
2NL-25980-00-00
Unavailable
10
. PISTON, CALIPER
2NL-25814-00-00
Unavailable
11
. CUP SET
2NL-W0069-00-00
Unavailable
12
. SPRING
2NL-25977-00-00
Unavailable
13
. BLEED SCREW KIT
2NL-W0048-00-00
Unavailable
14
BRAKE SHOE KIT
3JN-W253E-00-00
Unavailable
15
ADJUSTER ASSY
3JN-27260-00-00
Unavailable
16
INACTIVE PART NUMBER
2NL-25373-00-00
Unavailable
17
SPRING, RETURN
2NL-25333-00-00
Unavailable
18
SPRING, LEVER RETURN
3JN-25357-00-00
Unavailable
19
PIN, SHOE HOLD DN
2NL-27282-00-00
Unavailable
20
CUP, SHOE HOLD DN
2NL-27283-00-00
Unavailable
21
SPRING, SHOE CLAMP
2NL-27281-00-00
Unavailable
22
LEVER ASSEMBLY
2NL-27204-00-00
Unavailable
23
WASHER
2NL-27219-00-00
Unavailable
24
RETAINER
2NL-2536A-00-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
26
CLIP
2NL-2539E-00-00
Unavailable
27
CLIP, SPRING
2NL-2536E-00-00
Unavailable
28
INACTIVE PART NUMBER
2NL-2636F-00-00
Unavailable
29
CABLE,BRAKE
3JN-26351-00-00
Unavailable
30
NUT, SELF-LOCKING
90185-08169-00
Unavailable
31
O-RING (4G0)
93210-11453-00
Unavailable
32
END, WIRE 1
2NL-2636A-00-00
Unavailable
33
BCKG PLT SUB ASY 2
3JN-27209-00-00
Unavailable
34
WHEEL CYLINDER 2
2NL-25990-00-00
Unavailable
35
. PISTON, CALIPER
2NL-25814-00-00
Unavailable
36
. CUP SET
2NL-W0069-00-00
Unavailable
37
. SPRING
2NL-25977-00-00
Unavailable
38
BRAKE SHOE KIT
3JN-W253E-00-00
Unavailable
39
INACTIVE PART NUMBER
2NL-27270-00-00
Unavailable
40
INACTIVE PART NUMBER
2NL-25373-00-00
Unavailable
41
SPRING, RETURN
2NL-25333-00-00
Unavailable
42
SPRING, LEVER RETURN
3JN-25357-00-00
Unavailable
43
PIN, SHOE HOLD DN
2NL-27282-00-00
Unavailable
44
CUP, SHOE HOLD DN
2NL-27283-00-00
Unavailable
45
SPRING, SHOE CLAMP
2NL-27281-00-00
Unavailable
46
LEVER ASSEMBLY 2
2NL-27205-00-00
Unavailable
47
WASHER
2NL-27219-00-00
Unavailable
48
RETAINER
2NL-2536A-00-00
Unavailable
49
WASHER, SPRING
92995-06100-00
Unavailable
50
CLIP
2NL-2539E-00-00
Unavailable
51
CLIP, SPRING
2NL-2536E-00-00
Unavailable
52
INACTIVE PART NUMBER
2NL-2636F-00-00
Unavailable
53
CABLE,BRAKE
3JN-26351-00-00
Unavailable
54
NUT, SELF-LOCKING
90185-08169-00
Unavailable
55
O-RING (4G0)
93210-11453-00
Unavailable
56
END, WIRE 1
2NL-2636A-00-00
Unavailable
57
HOSE
(90445-092F6-00)
Unavailable
58
CLIP (16G)
90467-08021-00
Unavailable
59
WAY 3(33M)
90413-05014-00
Unavailable
60
HOSE
(90445-092E8-00)
Unavailable
61
HOSE (L420)
90445-092K1-00
Unavailable
62
CLIP(41W)
90467-08092-00
Unavailable
63
CLIP(33M)
90468-15139-00
Unavailable
64
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
65
RETAINER
2NL-46513-00-00
Unavailable
66
SHAFT, REAR AXLE 1
2NL-46511-00-00
Unavailable
67
O-RING(22F)
93210-26662-00
Unavailable
68
COLLAR(2NL)
90387-284T0-00
Unavailable
69
SHAFT, REAR AXLE 2
2NL-46512-00-00
Unavailable
70
O-RING(22F)
93210-26662-00
Unavailable
71
COLLAR(2NL)
90387-284T0-00
Unavailable
72
OIL SEAL (705)
93102-35191-00
Unavailable
73
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
74
NUT, CASTLE
90171-16001-00
Unavailable
75
PIN, COTTER
91490-30030-00
Unavailable
76
CAP, WHEEL
2NL-2512A-00-00
Unavailable
