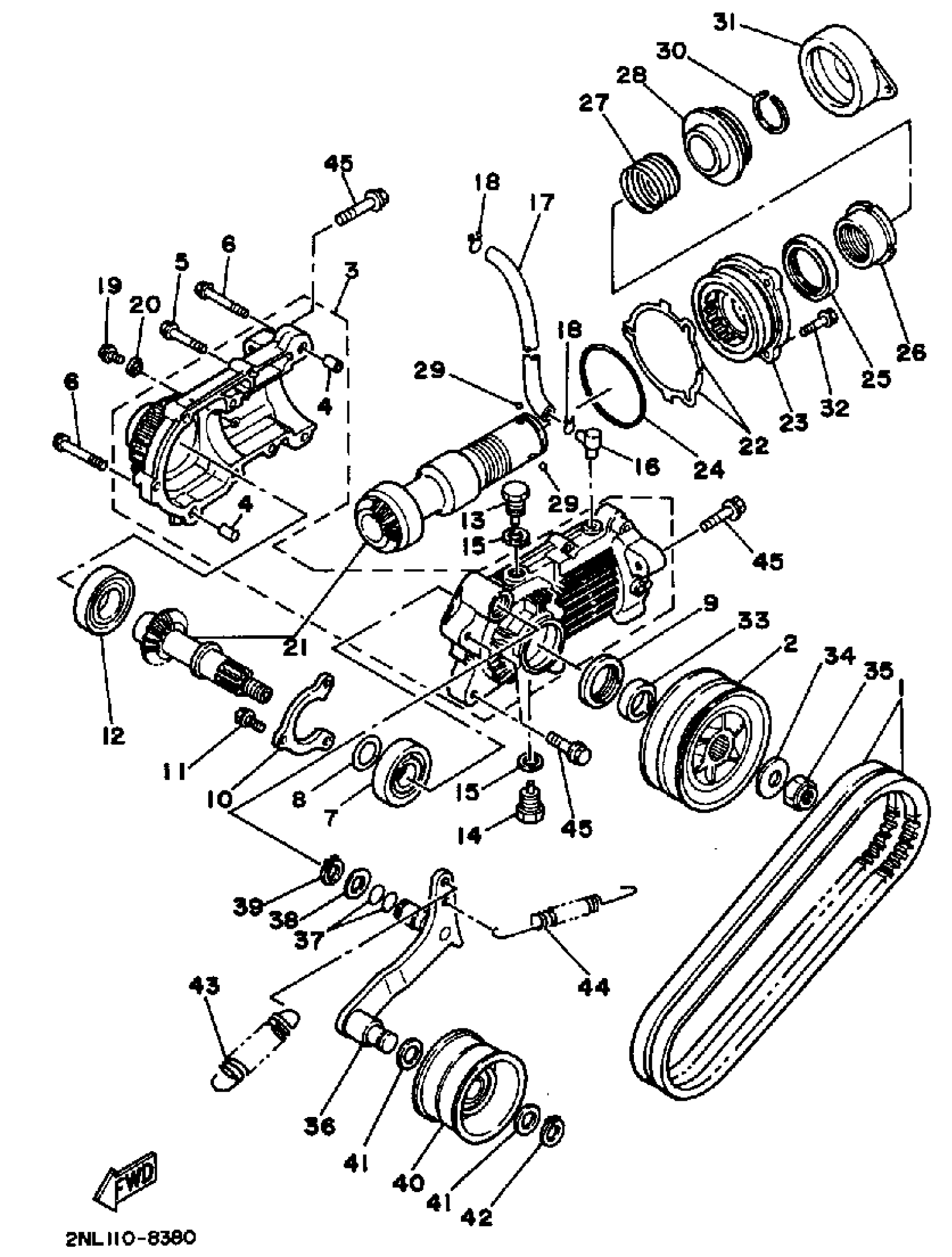

Yamaha YFP350U (TERRA PRO) 1988 POWER TAKE OFF Diagram
#
1
BELT SET (2)
2NL-W4624-00-00
Unavailable
2
PULLEY 2
2NL-46257-00-00
Unavailable
3
CASE ASSEMBLY
2NL-Y4629-00-00
Unavailable
8
SHIM, PINION (0.1)
2NL-4621E-00-00
Unavailable
8
SHIM, PINION CO.15
2NL-4621E-10-00
Unavailable
8
SHIM, PINION (0.2)
2NL-4621E-20-00
Unavailable
8
SHIM, PINION CO.15
2NL-4621E-10-00
Unavailable
8
SHIM, PINION (0.2)
2NL-4621E-20-00
Unavailable
8
SHIM, PINION (0.5)
2NL-4621E-50-00
Unavailable
10
PLATE
(2NL-46296-00-00)
Unavailable
11
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
12
BRG,R-B 6205RC2 52MM 124G KY
93306-20548-00
Unavailable
13
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
Unavailable
14
PLUG, STRAIGHT SCREW
90340-14004-00
Unavailable
15
GASKET
214-11198-01-00
Unavailable
16
BREATHER
5UG-15371-00-00
Unavailable
17
HOSE (L600)
90445-083J5-00
Unavailable
18
CLIP (16G)
90467-08021-00
Unavailable
19
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
20
WASHER, FINISH
90207-05012-00
Unavailable
21
PINION, GEAR SET (2NL-W4622-00)
2NL-W4622-01-00
Unavailable
22
SHIM, THRUST (0.2)
2NL-4621F-00-00
Unavailable
22
SHIM, THRUST (0.5)
2NL-4621F-20-00
Unavailable
22
SHIM, THRUST (0.15T)
2NL-4621F-30-00
Unavailable
23
HOUSING COMP.
2NL-W4629-00-00
Unavailable
24
O-RING
93210-67697-00
Unavailable
25
OIL SEAL, SD-TYPE
93102-44304-00
Unavailable
26
NUT
2NL-4621L-00-00
Unavailable
27
SPRING, COMPRESSION
90501-286E2-00
Unavailable
28
HOLDER
2NL-46298-00-00
Unavailable
29
BALL (12R)
93507-32031-00
Unavailable
30
CIRCLIP, OUTER
93440-33154-00
Unavailable
31
CAP
2NL-46231-00-00
Unavailable
32
BOLT, FLANGE (2NL)
91011-06025-00
Unavailable
33
COLLAR
90387-223T2-00
Unavailable
34
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
35
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
36
ARM 1
2NL-46266-00-00
Unavailable
37
O-RING (22U)
93210-15566-00
Unavailable
38
WASHER, PLATE (4L0)
90201-154E8-00
Unavailable
39
CIRCLIP(1AR)
99009-15400-00
Unavailable
40
IDLER
2NL-46218-00-00
Unavailable
41
WASHER, PLATE (4L0)
90201-154E8-00
Unavailable
42
CIRCLIP(1AR)
99009-15400-00
Unavailable
43
SPRING, CLUTCH 1
2NL-46275-00-00
Unavailable
44
SPRING, RETURN
2NL-46277-00-00
Unavailable
45
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
