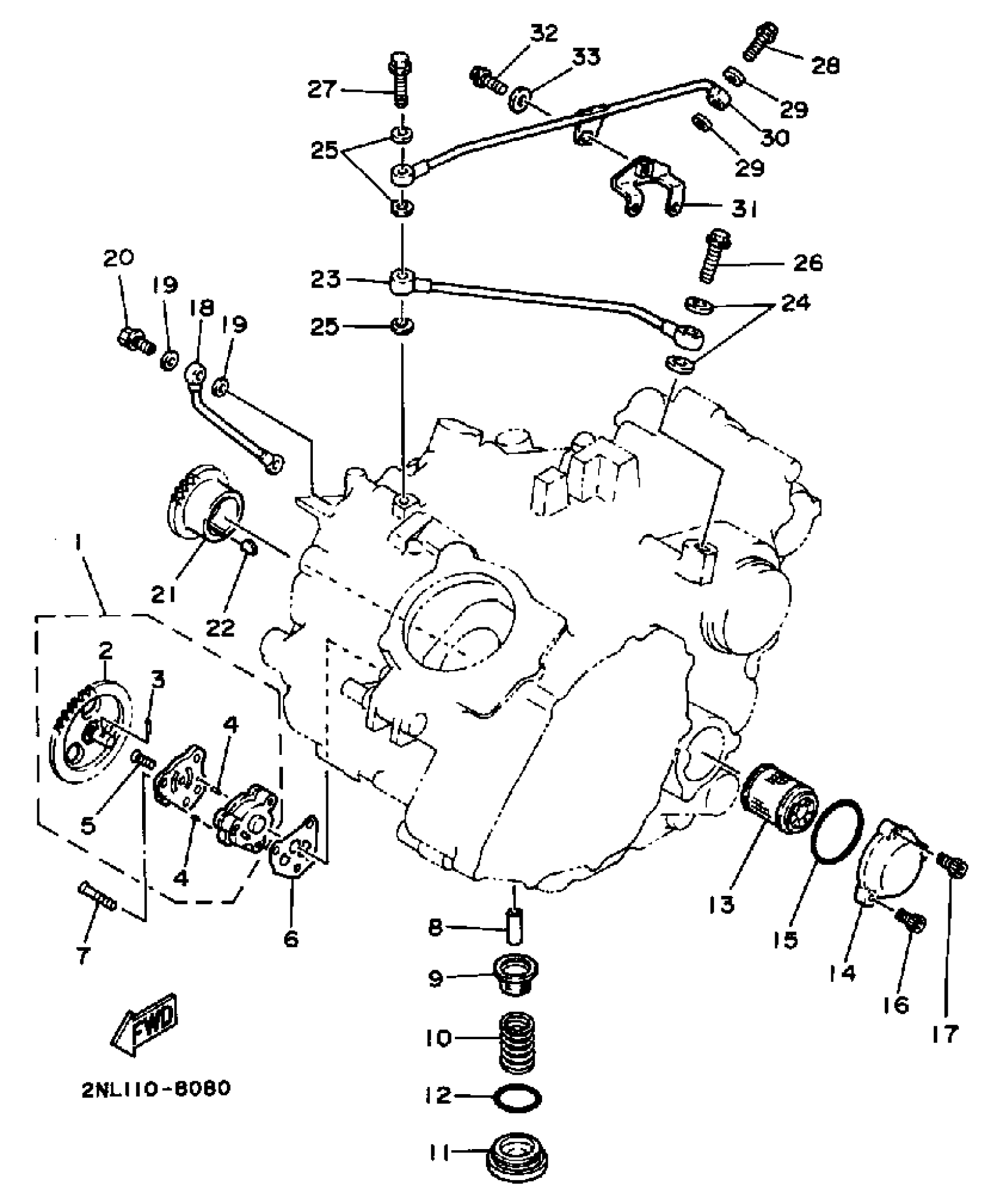

Yamaha YFP350U (TERRA PRO) 1988 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSY
1UY-13300-00-00
Unavailable
2
GEAR, PUMP DRIVEN 2
1UY-13326-00-00
Unavailable
14
COVER, OIL ELEMENT (1UY-13447-00)
1UY-13447-01-00
Unavailable
15
O-RING (341)
93210-54175-00
Unavailable
16
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
17
BOLT,SOCKET
91317-06020-00
Unavailable
18
PIPE, DELIVERY 1
1UY-13161-01-00
Unavailable
20
BOLT, UNION
90401-08004-00
Unavailable
21
GEAR, PUMP DRIVE
1UY-13324-00-00
Unavailable
22
KEY, WOODRUFF
90280-05001-00
Unavailable
23
PIPE, DELIVERY 1
2NL-13161-00-00
Unavailable
24
GASKET 256131670000
90430-14043-00
Unavailable
26
BOLT, UNION(1YW)
90401-14118-00
Unavailable
27
BOLT, UNION
90401-08123-00
Unavailable
28
BOLT, UNION
(90401-08125-00)
Unavailable
30
PIPE, DELIVERY 2
2NL-13171-02-00
Unavailable
31
BRACKET
(2NL-15199-00-00)
Unavailable
32
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
33
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
