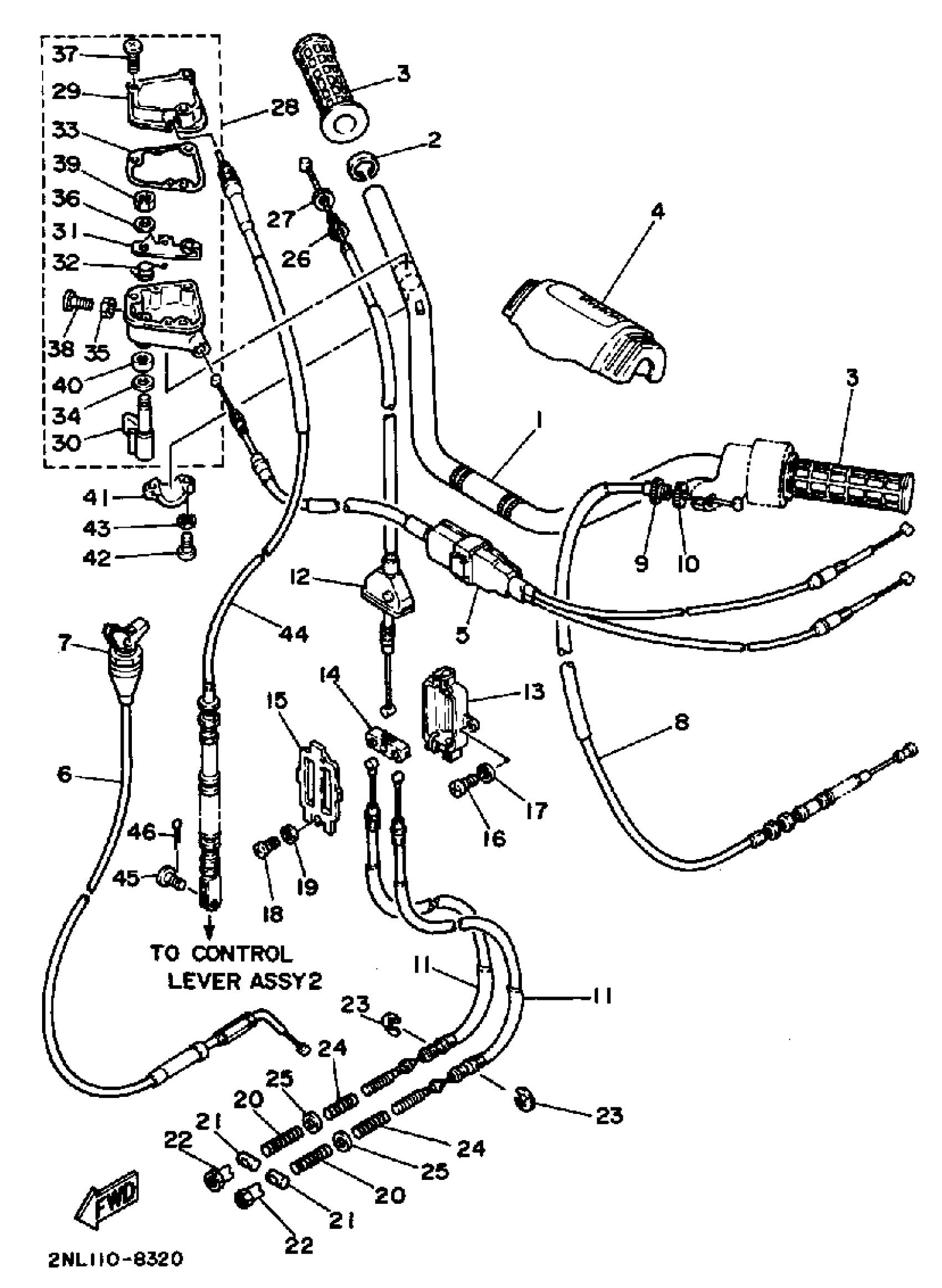

Yamaha YFP350U (TERRA PRO) 1988 HANDLEBAR CABLE Diagram
#
1
HANDLEBAR
59V-26111-01-00
Unavailable
4
PROTECTOR, HANDLEBAR
1YW-26124-01-00
Unavailable
5
CBLEASSEMBLY, THRTL/PMPPUMP (2NL-26260-00)
2NL-26301-00-00
Unavailable
6
CABLE, STARTER 1
2NL-26331-00-00
Unavailable
7
Nut
8G8-26333-00-00
Unavailable
11
CABLE, BRAKE
3JN-26361-01-00
Unavailable
13
HOUSING, BRAKE LINK
52H-26371-00-00
Unavailable
16
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
17
WASHER, PLAIN (646)
92990-05600-00
Unavailable
18
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
19
WASHER(3SX)
92907-03600-00
Unavailable
20
SPRING, COMPRESSION (29U)
90501-10782-00
Unavailable
21
PIN 1562723700
90249-12008-00
Unavailable
22
NUT (25K)
90179-06411-00
Unavailable
23
CIRCLIP(53L)
99001-06600-00
Unavailable
24
SPRING, COMPRESSION(52H)
90501-123A0-00
Unavailable
25
WASHER(52H)
90209-06265-00
Unavailable
28
THROTTLE LEVER ASSEMBLY (2NL-26250-00)
2NL-26250-01-00
Unavailable
29
CONTROL LEVER ASSEMBLY
(2NL-26180-00-00)
Unavailable
30
. LEVER, THROTTLE
1NV-2625G-00-00
Unavailable
31
. ARM, THROTTLE
2NL-2625H-00-00
Unavailable
32
SPRING
1NV-26304-00-00
Unavailable
33
. GASKET
1NV-2628G-00-00
Unavailable
34
WASHER
1NV-26129-00-00
Unavailable
35
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
36
. WASHER, SPECIAL
53L-83909-00-00
Unavailable
37
SCREW, PAN HEAD(4MY)
98507-05025-00
Unavailable
38
SCREW, PAN HEAD
98517-05020-00
Unavailable
39
NUT, U
95617-05100-00
Unavailable
40
OIL SEAL (9X15X4-256)
93104-09025-00
Unavailable
41
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
42
SCREW, PAN HEAD
98517-05020-00
Unavailable
43
WASHER(3SX)
92907-05100-00
Unavailable
44
CABLE, THROTTLE 2
2NL-26312-00-00
Unavailable
45
PIN, CLEVIS (24X)
90240-06103-00
Unavailable
46
PIN, COTTER
91490-20025-00
Unavailable
