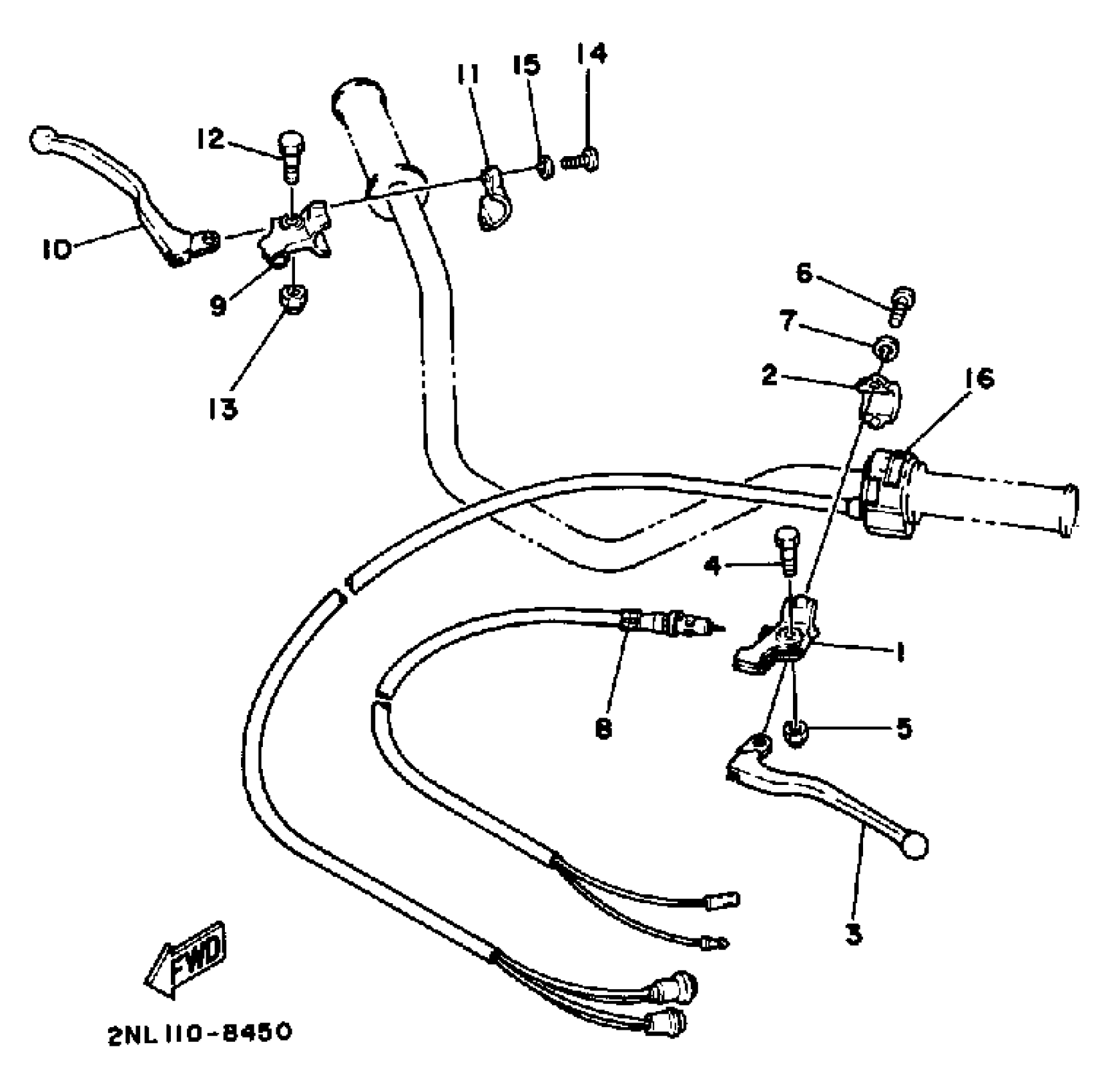

Yamaha YFP350U (TERRA PRO) 1988 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER SET, LEVER 1

99999-03034-00

$84.76

2

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

3

LEVER 1

2HT-83912-01-00

$32.59

4

BOLT(1FG)

90109-06798-00

$5.84

5

NUT, SELF-LOCKING

95617-06100-00

$2.17

6

SCREW, PAN HEAD

98517-05020-00

$1.26

7

WASHER(3SX)

92907-05100-00

$5.76

8

FRONT STOP SWITCH ASSY

1YW-83980-00-00

$58.58

9

HOLDER, LEVER 2

1NU-82921-00-00

Unavailable

10

LEVER 2

59V-83922-00-00

$34.56

11

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

12

BOLT(1FG)

90109-06798-00

$5.84

13

NUT, SELF-LOCKING

95617-06100-00

$2.17

14

SCREW, PAN HEAD

98517-05020-00

$1.26

15

WASHER(3SX)

92907-05100-00

$5.76

16

SWITCH, HANDLE 3

59V-83973-09-00

Unavailable
