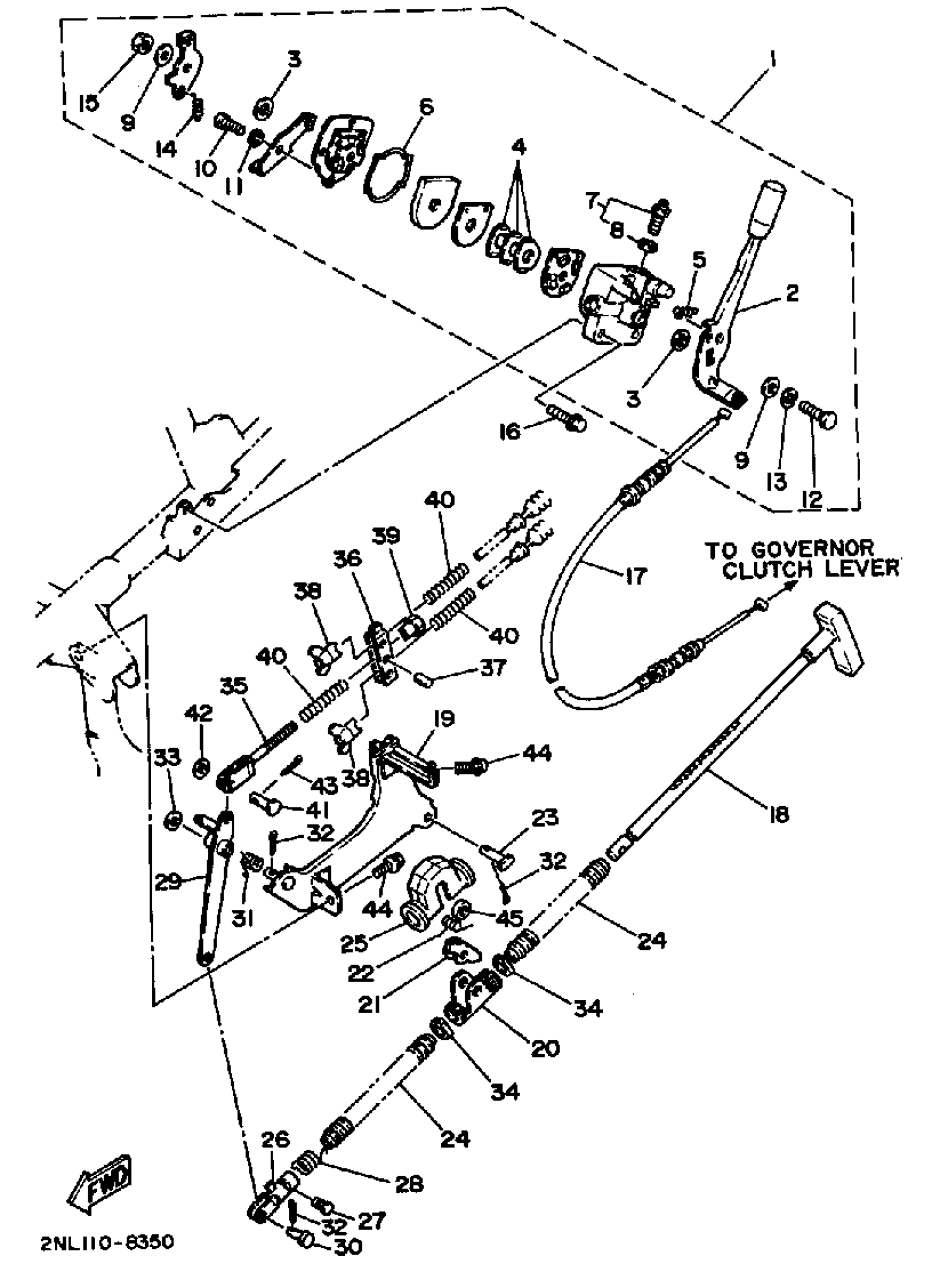

Yamaha YFP350U (TERRA PRO) 1988 GOVERNOR CONTROL PARKING BRAKE Diagram
#
1
CONTROL LEVER ASSEMBLY
(2NL-26180-00-00)
Unavailable
2
. LEVER ASSEMBLY
2NL-W2618-00-00
Unavailable
3
WASHER
(2NL-26129-00-00)
Unavailable
4
SPRING
(2NL-26247-00-00)
Unavailable
5
. SPRING, MAIN STAND
2NL-27116-00-00
Unavailable
6
. GASKET
2NL-2628G-00-00
Unavailable
7
. UNAVAILABLE IN PRICE BOOKASSEMBLY (341-82540-01)
2H7-82540-01-00
Unavailable
8
GASKET
296-82543-00-00
Unavailable
9
WASHER
(2NL-26297-00-00)
Unavailable
14
. SPRING
2NL-26314-00-00
Unavailable
16
BOLT, FLANGE
95822-06025-00
Unavailable
17
WIRE, CONTROL 5
2NL-2637L-00-00
Unavailable
18
ROD
(2NL-25685-00-00)
Unavailable
19
BRACKET, PEDAL
(2NL-25654-00-00)
Unavailable
20
BRACKET
(2NL-26296-00-00)
Unavailable
21
RATCHET, ADJUSTING
(2NL-25771-00-00)
Unavailable
22
HOOK, SPRING 2
(2NL-25659-00-00)
Unavailable
23
PIN 1
(2NL-25734-00-00)
Unavailable
24
BOOT
2NL-2629T-00-00
Unavailable
25
COVER, HANDLELEVER2
2NL-2637A-00-00
Unavailable
26
ROD, JOINT
(2NL-26166-00-00)
Unavailable
27
PIN 2
(2NL-25744-00-00)
Unavailable
28
SPRING, RETURN 1
(2NL-25735-00-00)
Unavailable
29
INACTIVE PART NUMBER
2NL-27141-00-00
Unavailable
30
PIN 3
2NL-25754-00-00
Unavailable
31
SPRING, RETURN 2
(2NL-25745-00-00)
Unavailable
32
PIN
2NL-26267-00-00
Unavailable
33
WASHER
(2NL-26398-00-00)
Unavailable
34
CLAMP, WIRE
(2NL-2627E-00-00)
Unavailable
35
ROD, BRAKE
2NL-27231-00-00
Unavailable
36
JOINT, CABLE
2NL-26347-00-00
Unavailable
37
PIN 1562723700
90249-12008-00
Unavailable
38
NUT, WING (1K5)
90175-06013-00
Unavailable
39
NUT (25K)
90179-06411-00
Unavailable
40
SPRING, COMPRESSION (29U)
90501-10782-00
Unavailable
41
PIN, CLEVIS
91701-08020-00
Unavailable
42
.. WASHER, PLATE
92990-08600-00
Unavailable
43
PIN, COTTER
91490-25020-00
Unavailable
44
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
45
SPACER
(2NL-25683-00-00)
Unavailable
