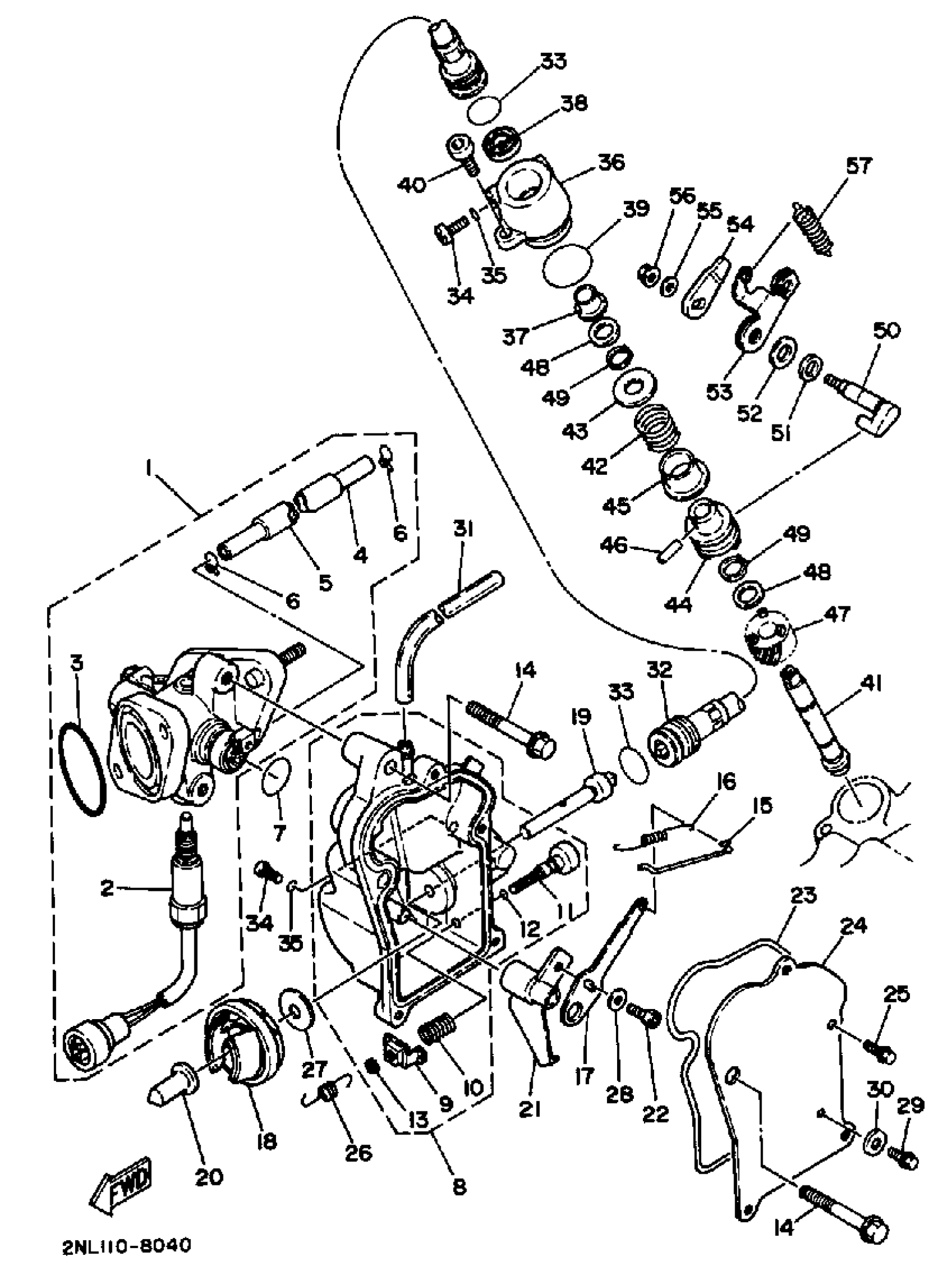

Yamaha YFP350U (TERRA PRO) 1988 GOVERNOR Diagram
#
1
GOVERNOR JOINT ASSEMBLY
2NL-13565-00-00
Unavailable
2
. SOLENOID VALVE
2NL-1410H-00-00
Unavailable
4
. HOSE
3V3-14987-00-00
Unavailable
5
HOSE
(2NL-14987-00-00)
Unavailable
8
HOUSING ASSEMBLY
(2NL-11961-00-00)
Unavailable
9
. UNAVAILABLE IN PRICE BOOK
[2N-L1195-40-00
Unavailable
10
. SPRING, COMPRESSION
90501-106E3-00
Unavailable
11
. SCREW, FLAT FLSTR
90145-05009-00
Unavailable
13
CIRCLIP(6L5)
99080-03600-00
Unavailable
15
ROD, LINK
(2NL-11928-00-00)
Unavailable
16
SPRING, TENSION
90506-04400-00
Unavailable
17
ARM, GOVENOR
(2NL-11924-00-00)
Unavailable
18
FLYWEIGHT SHFT ASSEMBLY
(2NL-11970-00-00)
Unavailable
19
SHAFT, FLYWEIGHT
(2NL-11971-00-00)
Unavailable
20
COLLAR
(2NL-11917-00-00)
Unavailable
21
FORK, GOVERNOR
2NL-11922-00-00
Unavailable
22
BOLT, SOCKET
91314-05010-00
Unavailable
23
GASKET
2NL-13566-00-00
Unavailable
24
COVER, MANIFOLD 2
2NL-13594-00-00
Unavailable
25
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
26
SPRING, TENSION
90506-06401-00
Unavailable
27
WASHER, PLATE
90201-06655-00
Unavailable
28
. WASHER, PLAIN
92990-05200-00
Unavailable
29
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
30
WASHER, FINISH
90207-05012-00
Unavailable
31
HOSE (L1500)
90445-090F6-00
Unavailable
32
CABLE, GOVERNOR
2NL-11959-00-00
Unavailable
33
O-RING (26H)
93210-14579-00
Unavailable
34
SCREW, PAN
98517-06030-00
Unavailable
35
GASKET 256113960000
90430-06014-00
Unavailable
36
HOUSING 2
2NL-11992-00-00
Unavailable
37
BUSH, BIMETAL FORM
90384-08216-00
Unavailable
38
OIL SEAL (30X)
93102-08307-00
Unavailable
39
O-RING (35R)
93210-23614-00
Unavailable
40
BOLT, SOCKET
91314-06016-00
Unavailable
41
SHAFT
(2NL-11942-00-00)
Unavailable
42
SPRING, COMPRESSION
90501-126E4-00
Unavailable
43
WASHER, PLATE (2NL)
90201-085L5-00
Unavailable
44
SLEEVE, GOVERNOR
(2NL-11923-00-00)
Unavailable
45
UNAVAILABLE IN PRICE BOOK
[2N-L1194-30-00
Unavailable
46
PIN, DOWEL (5H0)
93602-13177-00
Unavailable
47
GEAR, GOVERNOR
(2NL-11953-00-00)
Unavailable
48
WASHER PLATE 141181390000
90201-08085-00
Unavailable
49
CIRCLIP(2NL)
93410-08072-00
Unavailable
50
UNAVAILABLE IN PRICE BOOK
[2N-L1192-70-00
Unavailable
51
OIL SEAL (8X12X3-371)
93104-08040-00
Unavailable
52
WASHER PLATE 141181390000
90201-08085-00
Unavailable
53
UNAVAILABLE IN PRICE BOOK
[2N-L1193-10-00
Unavailable
54
PLATE
2NL-11952-00-00
Unavailable
55
WASHER, PLATE (7R4)
90201-080E2-00
Unavailable
56
NUT, HEXAGON
90170-07019-00
Unavailable
57
SPRING, TENSION(2NL)
90506-10402-00
Unavailable
