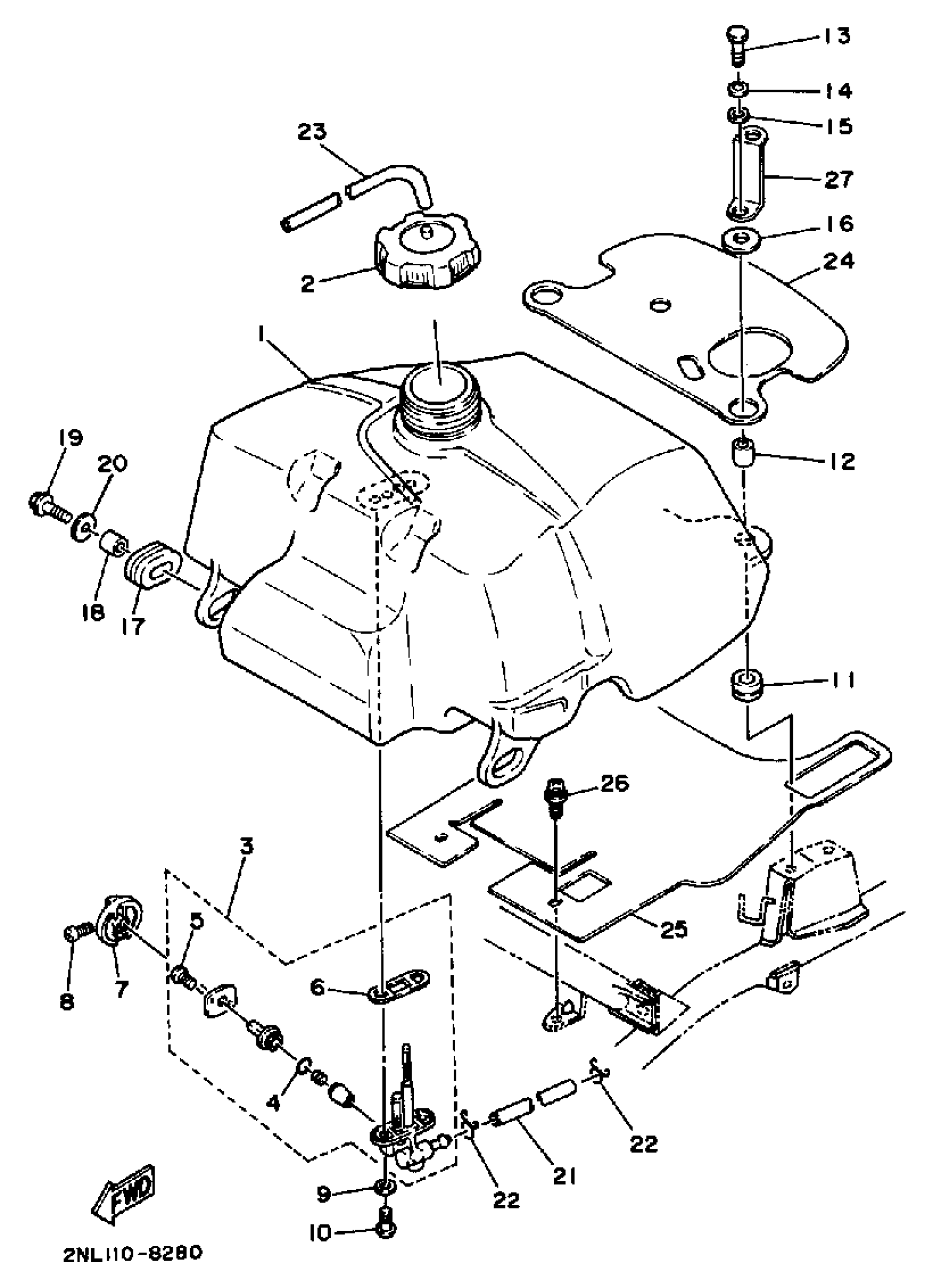

Yamaha YFP350U (TERRA PRO) 1988 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

2NL-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

FUEL COCK ASSEMBLY 1

2NL-24500-00-00

Unavailable

4

O-RING

4X8-24534-00-00

$13.49

5

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

6

O-RING

4X8-24512-00-00

$8.99

7

LEVER, COCK

29L-24524-01-00

Unavailable

8

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

9

WASHER, PLATE(3MB)

90202-05187-00

$1.38

10

SCREW 256241430000

90149-06011-00

$5.60

11

GROMMET (4V1)

90480-18290-00

$8.49

12

COLLAR (1M1)

90387-06553-00

$9.49

13

BOLT, HEXAGON

97017-06030-00

$3.61

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

WASHER, PLATE

90201-06090-00

Unavailable

17

GROMMET

90480-01472-00

Unavailable

18

COLLAR (8H9)

90387-06697-00

Unavailable

19

BOLT, WITH WASHER (24X)

90119-06073-00

Unavailable

20

WASHER, PLATE

90201-06090-00

Unavailable

21

HOSE (L400)

90445-116K9-00

Unavailable

22

CLIP

90467-100A1-00

Unavailable

23

HOSE (L420)

90445-092K1-00

Unavailable

24

TRIM, COVER PANEL

2NL-2414H-00-00

Unavailable

25

PROTECTOR, FUEL TNK

(2NL-24141-00-00)

Unavailable

26

SCREW, W/WASHER (14T)

90159-06059-00

Unavailable

27

BRACKET 1

2NL-14291-00-00

Unavailable
