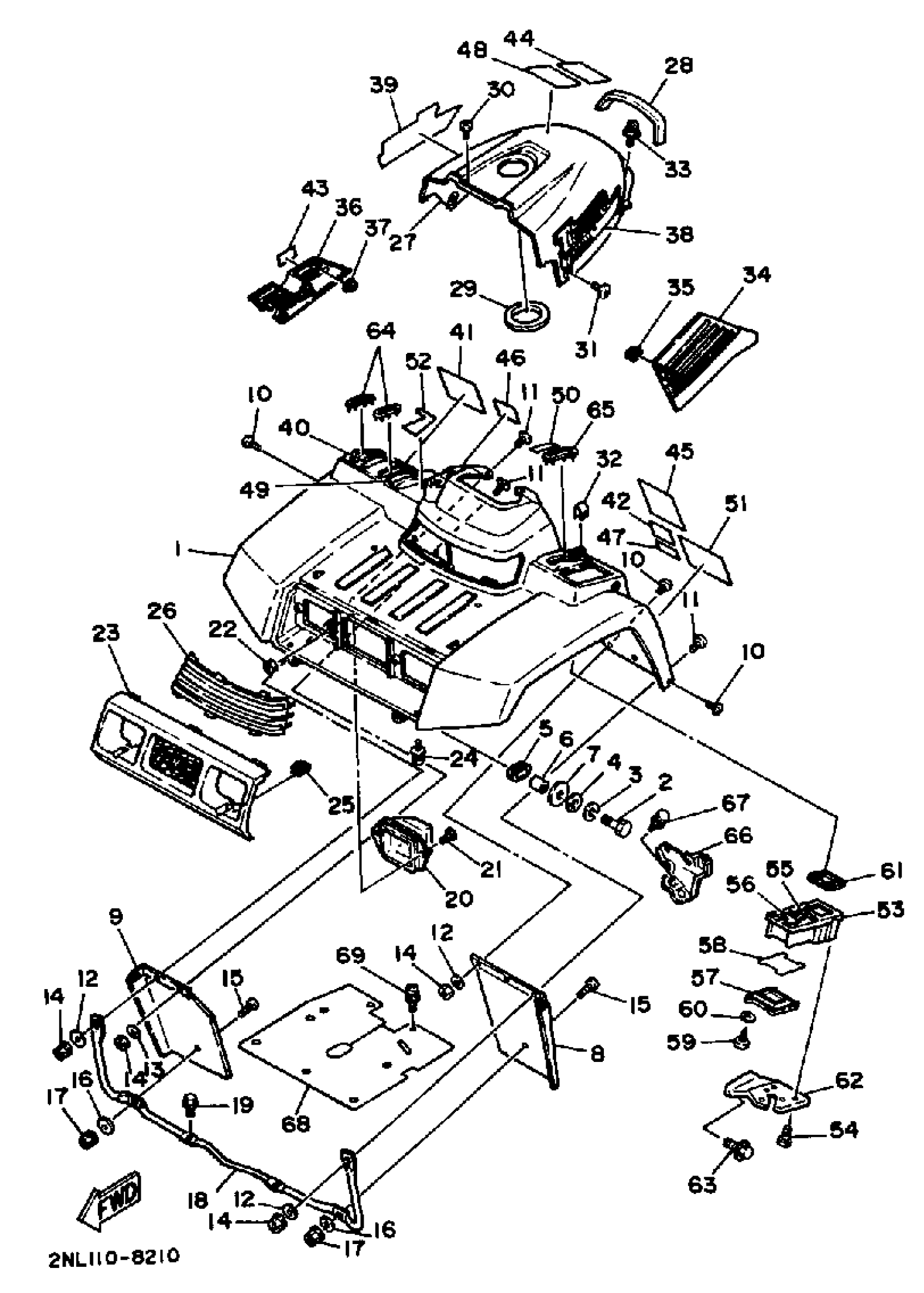

Yamaha YFP350U (TERRA PRO) 1988 FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT

2NL-21511-00-00

Unavailable

2

BOLT, HEXAGON

97017-06030-00

$3.61

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

GROMMET(38W)

90480-01400-00

$13.49

6

COLLAR (1M1)

90387-06553-00

$9.49

7

WASHER PLATE 248217570000

90201-06074-00

$9.49

8

FLAP, FRONT FENDER

2NL-21521-00-00

Unavailable

9

FLAP

2NL-21561-00-00

Unavailable

10

SCREW, BINDING(3XV)

90154-05059-00

$9.49

11

SCREW, BINDING (8G6)

90154-05002-00

$10.49

12

WASHER, PLATE 8067717800

90201-05029-00

$8.49

13

WASHER, PLATE (J10)

90201-06697-00

$8.49

14

NUT, NYLON

95707-05300-00

$4.24

15

SCREW, BINDING (8J0)

90154-05005-00

$4.73

16

WASHER, PLATE (J10)

90201-06697-00

$8.49

17

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

18

STAY, FENDER 1

2NL-21513-00-00

Unavailable

19

BOLT, FLANGE

95812-06010-00

Unavailable

20

BODY, HEADLIGHT

59V-84111-00-00

Unavailable

21

SCREW, BINDING

98907-05014-00

Unavailable

22

. NUT, HEXAGON

90170-05365-00

Unavailable

23

PANEL, FRONT

2NL-23391-00-00

Unavailable

24

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

25

NUT, SPRING

90183-051A0-00

Unavailable

26

PANEL 1

2NL-2172A-00-00

Unavailable

27

COVER, TOP

2NL-2171A-00-00

Unavailable

28

DAMPER, SIDE COVER

(2NL-21717-00-00)

Unavailable

29

DAMPER, LOCATING 1

1UY-21778-00-00

Unavailable

30

SCREW, BINDING

90154-05049-00

Unavailable

31

SCREW, BINDING(1UY)

90154-05041-00

Unavailable

32

NUT, SPRING

90183-051A0-00

Unavailable

33

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

34

COVER, SIDE 1

2NL-21711-00-00

Unavailable

35

GROMMET

90480-01415-00

Unavailable

36

COVER, SIDE 2

2NL-21721-00-00

Unavailable

37

GROMMET

90480-01415-00

Unavailable

38

EMBLEM 1

2NL-21781-00-00

Unavailable

39

EMBLEM 2

2NL-21782-00-00

Unavailable

40

LABEL 1

2NL-2151A-00-00

Unavailable

41

LABEL 2

2NL-2151E-00-00

Unavailable

42

LABEL 3

2NL-2151F-00-00

Unavailable

43

LABEL 4

2NL-2151G-00-00

Unavailable

44

LABEL, CAUTION 2

2NL-21697-00-00

Unavailable

45

LABEL, TIRE

2NL-21668-00-00

Unavailable

46

LABEL, CHOKE

1YW-26139-00-00

Unavailable

47

EMBLEM

1NU-21578-00-00

Unavailable

48

LABEL, SAFETY

2NL-21659-00-00

Unavailable

49

LABEL 6

2NL-2151J-00-00

Unavailable

50

LABEL 7

2NL-2151K-00-00

Unavailable

51

LABEL 9

2NL-2151M-00-00

Unavailable

52

LABEL 10

2NL-2151N-00-00

Unavailable

53

PANEL, INSTRUMENT

2NL-77711-01-00

Unavailable

54

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

55

LABEL 11

2NL-2151R-00-00

Unavailable

56

LABEL 12

2NL-2151T-00-00

Unavailable

57

PILOT BOX, LOWER

2NL-83569-00-00

Unavailable

58

SEAL

51Y-14462-00-00

Unavailable

59

SCREW, PAN TAP.2

97707-30512-00

Unavailable

60

WASHER,PLAIN

92990-03200-00

Unavailable

61

DAMPER

59V-83513-00-00

Unavailable

62

JOINT 2

2NL-2834L-00-00

Unavailable

63

BOLT, FLANGE

95817-06012-00

Unavailable

64

SEAL 1

2NL-21575-00-00

Unavailable

65

SEAL 2

2NL-21576-00-00

Unavailable

66

BRACKET

(2NL-21586-00-00)

Unavailable

67

BOLT, FLANGE

95817-06012-00

Unavailable

68

DAMPER 1

(2NL-21541-00-00)

Unavailable

69

SCREW, W/WASHER (14T)

90159-06059-00

Unavailable
