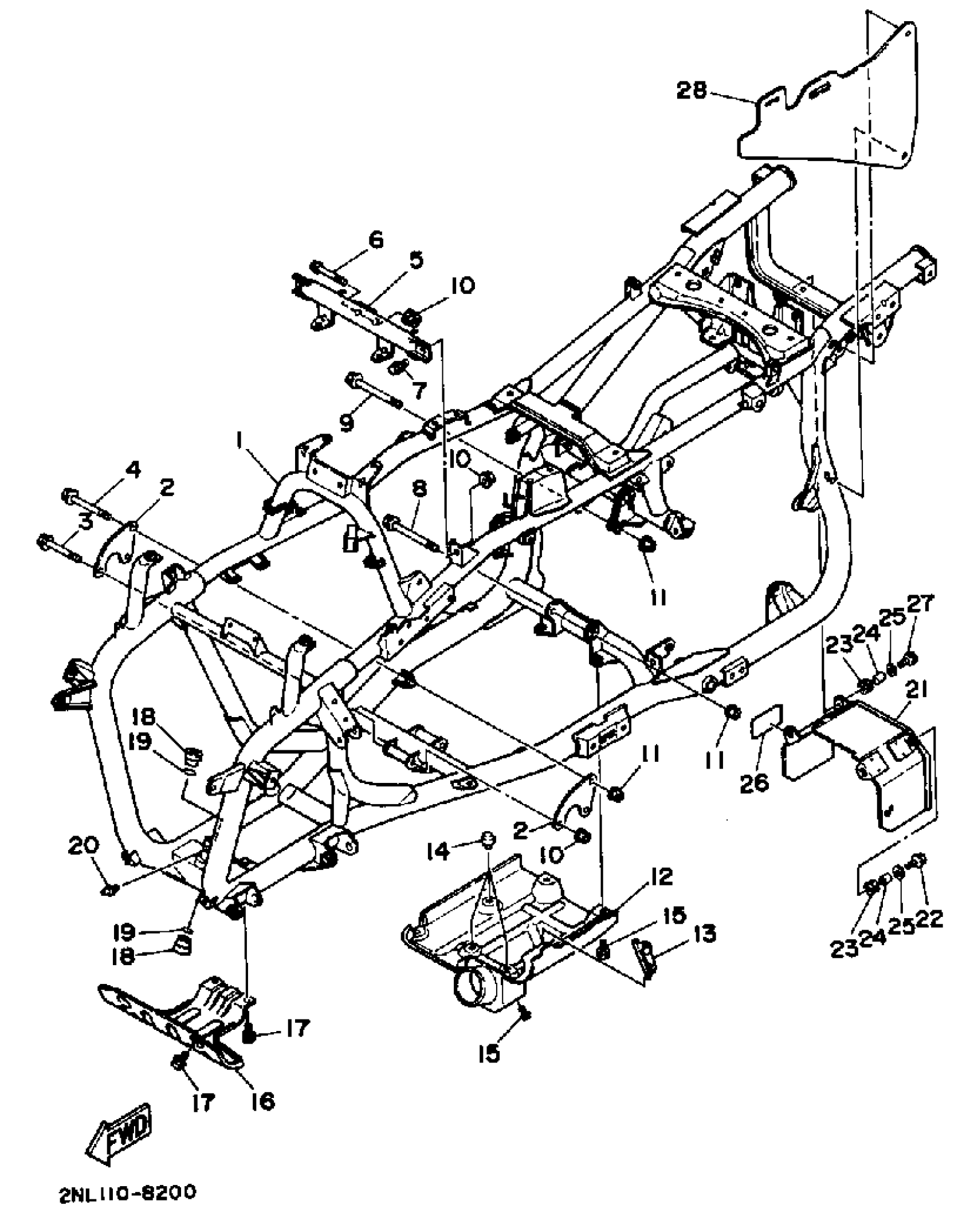

Yamaha YFP350U (TERRA PRO) 1988 FRAME Diagram

#

Description
Price

1

FRAME

2NL-21110-00-33

Unavailable

2

STAY, ENGINE 3

(2NL-21316-00-00)

Unavailable

3

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

4

BOLT, WASHER BASED

90105-10340-00

Unavailable

5

STAY, ENGINE 2

(2NL-21315-00-00)

Unavailable

6

BOLT, FLANGE

95817-08055-00

$4.21

7

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

8

BOLT, WASHER BASED(1KT)

90105-10409-00

Unavailable

9

BOLT, WASHER BASED(2NL)

90105-10480-00

$8.49

10

NUT, SELF-LOCKING

90185-08169-00

$8.49

11

NUT, SELF-LOCKING

90185-10170-00

$9.49

12

PROTECTOR, ENGINE

2NL-21471-00-00

Unavailable

13

DAMPER 2

(2NL-21486-00-00)

Unavailable

14

STOPPER

3Y1-24768-00-00

Unavailable

15

BOLT, FLANGE

95817-06012-00

$1.43

16

GUARD, ENGINE 1

2NL-2147A-00-00

Unavailable

17

BOLT, FLANGE

95812-06010-00

Unavailable

18

BUSH, SOLID (J22)

90381-15040-00

Unavailable

19

O-RING (22U)

93210-15566-00

Unavailable

20

NIPPLE, GREASE

93700-06M03-00

Unavailable

21

PROTECTOR

2NL-21652-00-00

Unavailable

22

BOLT, FLANGE

95817-06020-00

Unavailable

23

GROMMET(2GH)

90480-12475-00

Unavailable

24

COLLAR

90387-06113-00

Unavailable

25

WASHER, PLATE

90201-06380-00

Unavailable

26

LABEL 8

2NL-2151L-00-00

Unavailable

27

BOLT (21V)

90109-06723-00

Unavailable

28

GUARD, FLAP

2NL-21642-01-00

Unavailable
