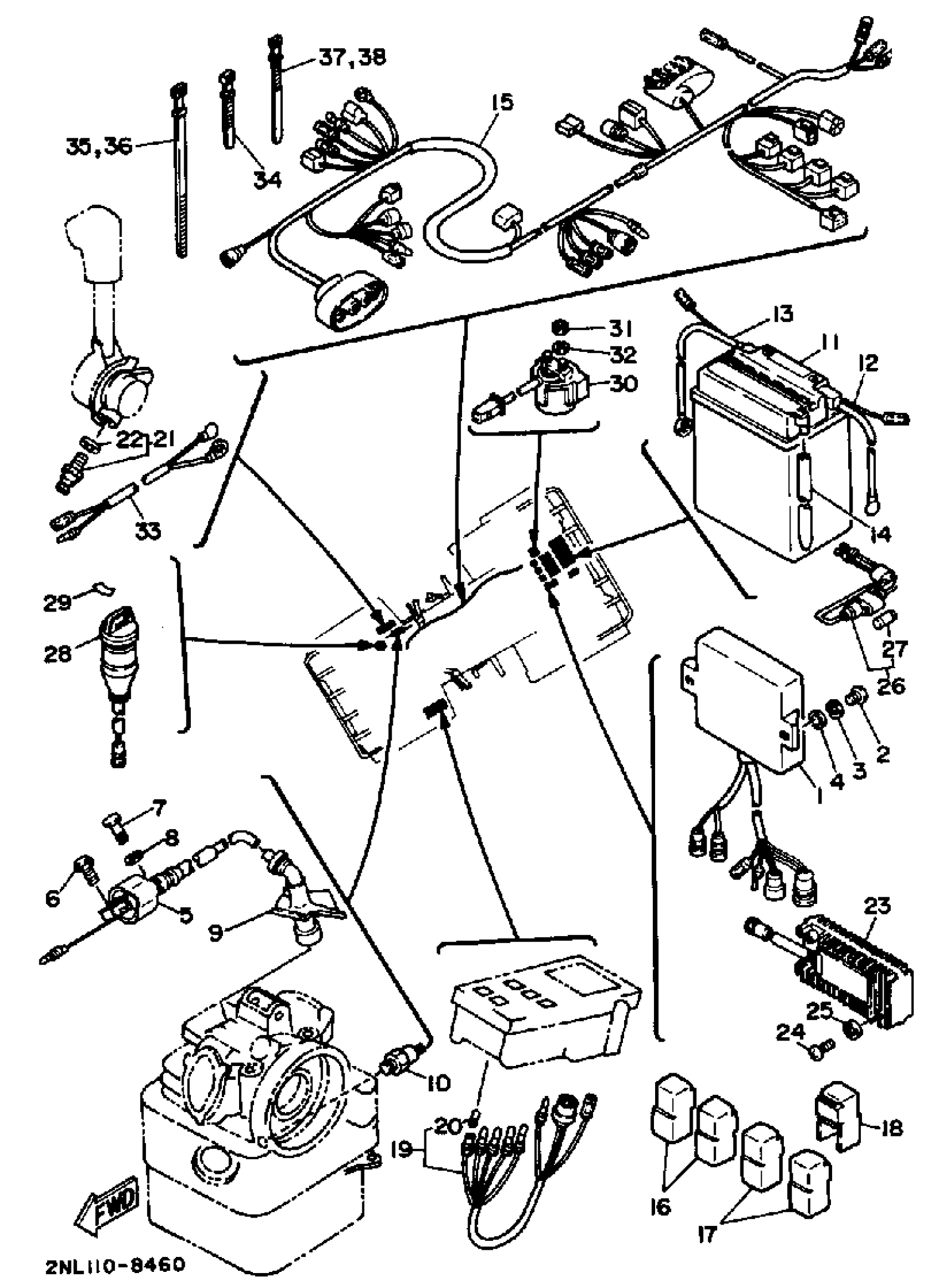

Yamaha YFP350U (TERRA PRO) 1988 ELECTRICAL 1 Diagram
#
1
CDI UNIT ASSEMBLY
2NL-85540-20-00
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
5
IGNITION COIL ASSEMBLY (2NL-82310-40)
2NL-82310-41-00
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
9
PLUG CAP ASSEMBLY
2NL-82370-00-00
Unavailable
10
THERMOSWITCH ASSEMBLY
2HR-82560-00-00
Unavailable
11
CB14-A2 GS BATTERY
CB1-4A200-00-00
Unavailable
12
WIRE, PLUS LEAD
2NL-82115-00-00
Unavailable
13
WIRE, MINUS LEAD
2NL-82116-00-00
Unavailable
15
WIRE HARNESS ASSEMBLY
2NL-82590-00-00
Unavailable
16
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
17
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
18
RELAY ASSY (2NL-92)
2NL-81950-92-00
Unavailable
19
PILOT LIGHT ASSEMBLY
2NL-83530-00-00
Unavailable
20
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
21
NEUTRAL SWITCH ASSY
4GY-82540-10-00
Unavailable
22
GASKET
296-82543-00-00
Unavailable
23
RECTIFIER/REG ASSEMBLY
1YW-81960-A0-00
Unavailable
24
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
26
FUSE HOLDER ASSY
2NL-82150-00-00
Unavailable
27
FUSE
682-82151-02-00
Unavailable
28
MAIN SWITCH ASSY
2FJ-82510-09-00
Unavailable
29
LABEL
29U-83585-10-00
Unavailable
30
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
Unavailable
31
NUT(650)
95380-06700-00
Unavailable
32
WASHER, SPRING
92995-06100-00
Unavailable
33
WIRE, SUB-LEAD
(2NL-82318-00-00)
Unavailable
34
BAND, SWITCH CORD
437-83936-01-00
Unavailable
35
BAND, SWITCH CORD
437-83936-11-00
Unavailable
36
BAND, SWITCH CORD
437-83936-11-00
Unavailable
37
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
38
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
