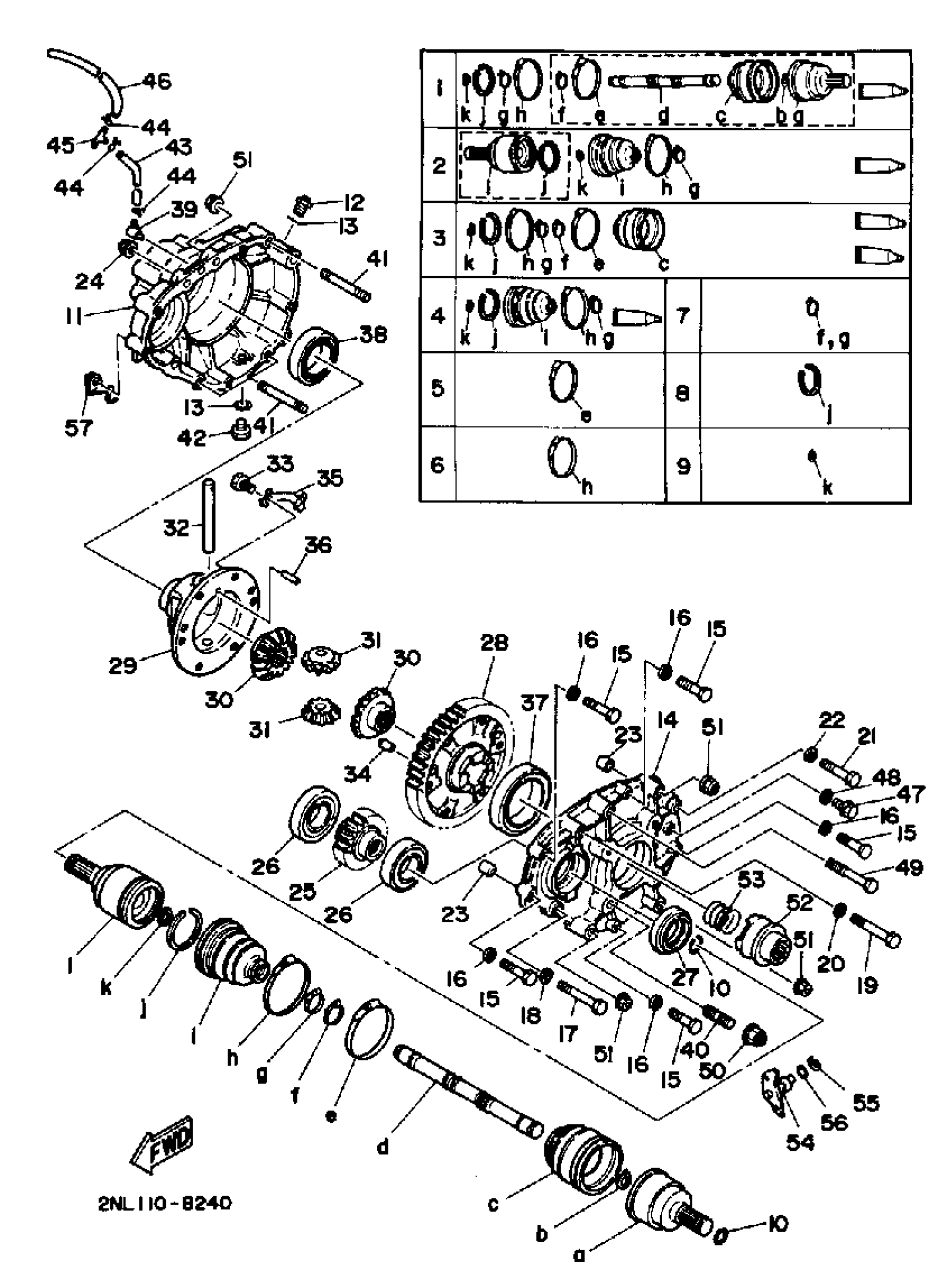

Yamaha YFP350U (TERRA PRO) 1988 DRIVE SHAFT Diagram
#
1
BALL JOINT SET
2NL-2510F-00-00
Unavailable
2
DOUBLE OFSET JOINT
2NL-2510J-00-00
Unavailable
3
BOOT SET (BALLJOINT)
2NL-2510G-00-00
Unavailable
4
BOOT SET (DBL.OFFSEOFFSET JOINT)
2NL-2510H-00-00
Unavailable
5
BOOT BAND (BALLJOI (BALL JOINT))
2NL-2511G-00-00
Unavailable
6
BOOTBAND (DBLOFFSETOFFSET JOINT)
2NL-2511H-00-00
Unavailable
7
BOOT BAND (SMALL)
2NL-2512G-00-00
Unavailable
8
CIRCLIP
(2NL-2512H-00-00)
Unavailable
9
SNAP RING
2NL-2512J-00-00
Unavailable
11
HOUSING, DR SHAFT
2NL-46151-00-00
Unavailable
14
HOUSING, BEARING
2NL-46152-00-00
Unavailable
16
.. WASHER, PLATE
92990-08600-00
Unavailable
17
BOLT
97021-08065-00
Unavailable
18
.. WASHER, PLATE
92990-08600-00
Unavailable
19
BOLT,FLANGE
95817-10065-00
Unavailable
20
WASHER, PLATE
92990-10600-00
Unavailable
21
BOLT, HEXAGON
97013-08050-00
Unavailable
22
.. WASHER, PLATE
92990-08600-00
Unavailable
23
PIN, DOWEL
99530-12016-00
Unavailable
24
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
25
GEAR, DRIVE PINION
2NL-46121-00-00
Unavailable
26
BEARING(2NL)
93306-20716-00
Unavailable
27
OIL SEAL(2NL)
93102-44454-00
Unavailable
28
DIFF.GEAR SET (2NL)
99999-01779-00
Unavailable
29
UNAVAILABLE IN PRICE BOOK
[2N-L4641-10-00
Unavailable
30
UNAVAILABLE IN PRICE BOOK
[2N-L4641-40-00
Unavailable
31
UNAVAILABLE IN PRICE BOOK
[2N-L4641-50-00
Unavailable
32
PIN, DIFFERENTIAL
2NL-46417-00-00
Unavailable
33
BOLT(6TD)
97017-10025-00
Unavailable
34
PIN, DOWEL(2NL)
93610-14230-00
Unavailable
35
WASHER, PLATE
2NL-22156-00-00
Unavailable
36
PIN, SPRING
91609-40028-00
Unavailable
37
BEARING
93306-01201-00
Unavailable
38
BEARING
93306-00902-00
Unavailable
39
BREATHER
5UG-15371-00-00
Unavailable
40
BOLT, STUD
(95611-12625-00)
Unavailable
41
UNAVAILABLE IN PRICE BOOK
[95-61110-66-00
Unavailable
42
PLUG, STRAIGHT SCREW
90340-14004-00
Unavailable
43
HOSE (L1500)
90445-090F6-00
Unavailable
44
CLIP (16G)
90467-08021-00
Unavailable
45
WAY 3(33M)
90413-05014-00
Unavailable
46
HOSE (L1500)
90445-090F6-00
Unavailable
47
BOLT, FLANGE(2UJ)
95024-08012-00
Unavailable
48
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
49
BOLT(2NL)
97021-10070-00
Unavailable
50
NUT, U FLANGE
95607-12200-00
Unavailable
51
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
52
DIFF.GEAR SET (2NL)
99999-01779-00
Unavailable
53
SPRING, COMPRESSION
90501-186E7-00
Unavailable
54
CAM, DIFFERENTIAL
2NL-46424-00-00
Unavailable
55
CIRCLIP (1L9)
93450-17044-00
Unavailable
56
O-RING (2H7)
93210-13361-00
Unavailable
57
GUIDE, CABLE
2NL-26279-00-00
Unavailable
