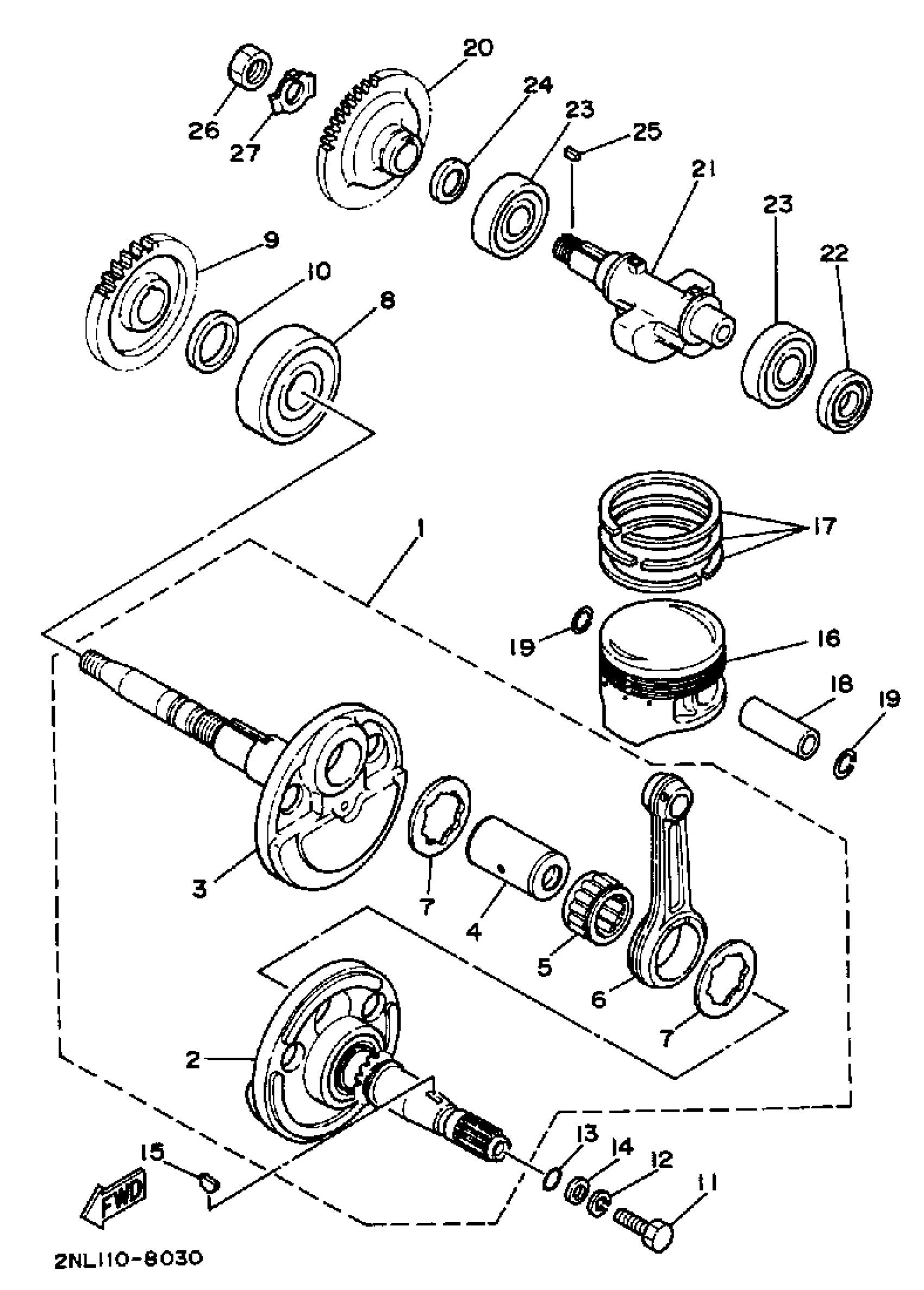

Yamaha YFP350U (TERRA PRO) 1988 CRANKSHAFT PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSEMBLY
(2NL-11400-00-00)
Unavailable
2
CRANK SUB ASSY 1
1UY-11401-09-00
Unavailable
3
. CRANK 2
2NL-11422-00-00
Unavailable
4
PIN, CRANK 1
30X-11681-00-00
Unavailable
6
ROD, CONNECTING
1UY-11651-00-00
Unavailable
9
GEAR, BALANCE WT
(2NL-11531-00-00)
Unavailable
10
COLLAR
90387-293T9-00
Unavailable
13
O-RING (538)
93210-16290-00
Unavailable
16
PISTON STD.
2NL-11631-00-A0
Unavailable
16
PISTON (0.50 O/S)
2NL-11636-00-00
Unavailable
16
PISTON (1.00 O/S)
2NL-11638-00-00
Unavailable
17
PISTON RING STD.
2NL-11610-00-00
Unavailable
17
PISTON RING .50 OS (2ND O/S)
2NL-11610-20-00
Unavailable
17
PISTON RING 1.000S (4TH O/S)
2NL-11610-40-00
Unavailable
18
PIN, PISTON
55V-11633-00-00
Unavailable
19
CIRCLIP (26H)
93450-19095-00
Unavailable
20
GEAR, DRIVE
1UY-11536-01-00
Unavailable
21
WEIGHT 1
1YW-11454-00-00
Unavailable
22
OIL SEAL (5Y1)
93101-25106-00
Unavailable
23
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
24
COLLAR
90387-201R7-00
Unavailable
25
KEY, STRAIGHT (3L5)
90282-05034-00
Unavailable
26
NUT, HEXAGON (30X)
90170-16326-00
Unavailable
27
WASHER, LOCK(2NL)
90215-16270-00
Unavailable
