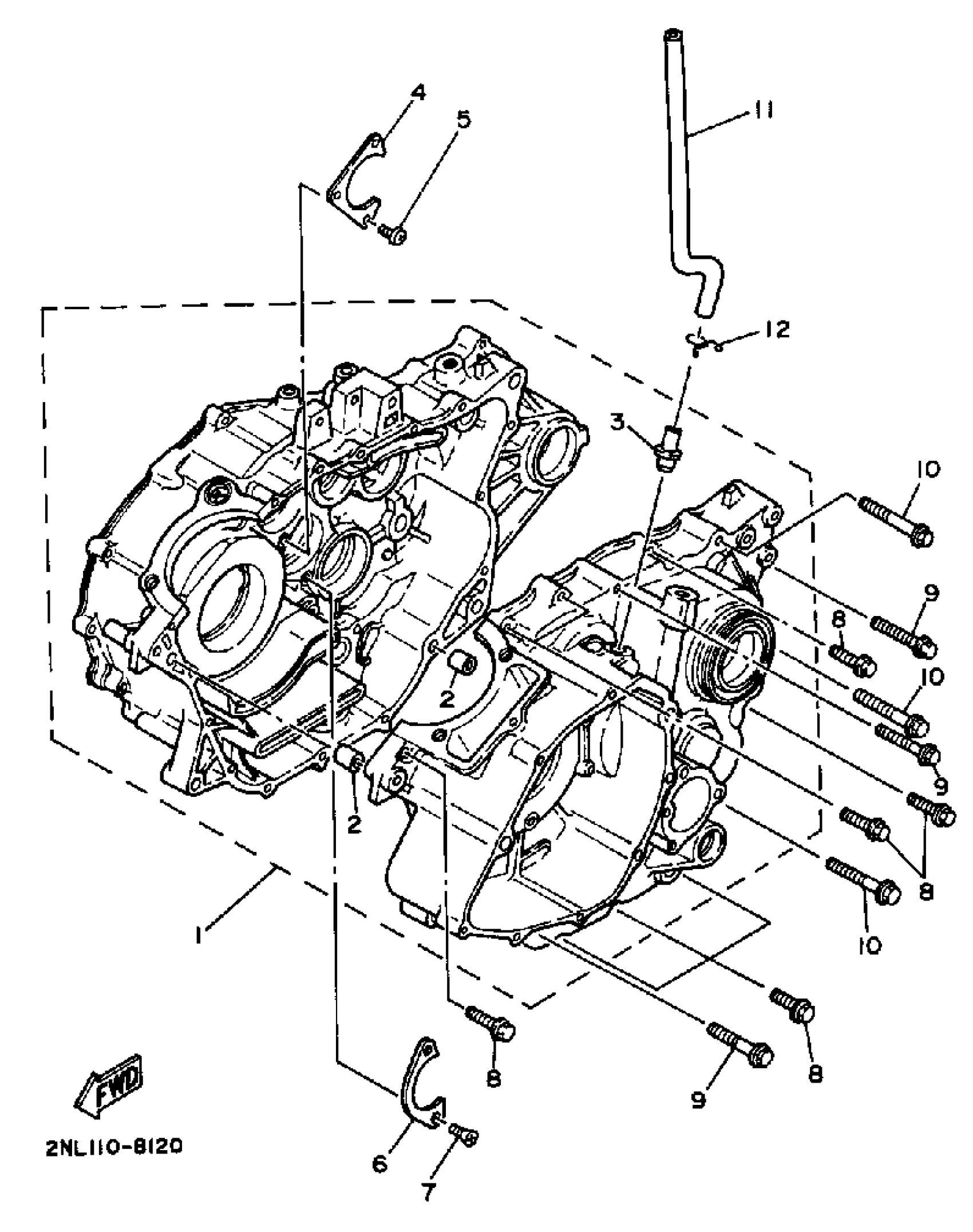

Yamaha YFP350U (TERRA PRO) 1988 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

2NL-15100-00-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$3.85

3

PIPE, BREATHER 2

59V-11167-00-00

Unavailable

4

PLATE, BEARING COVER

3R4-15381-00-00

$4.21

5

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

6

PLATE, BEARING COVER

1UY-15383-00-00

Unavailable

7

SCREW, FLAT

98707-06014-00

$5.76

8

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

9

BOLT, SMALL FLANGE

95027-06050-00

$1.68

10

BOLT, SMALL FLANGE

95027-06060-00

$1.91

11

PIPE, BREATHER 1

2NL-11166-00-00

Unavailable

12

CLIP(3YX)

90467-13133-00

$4.92
