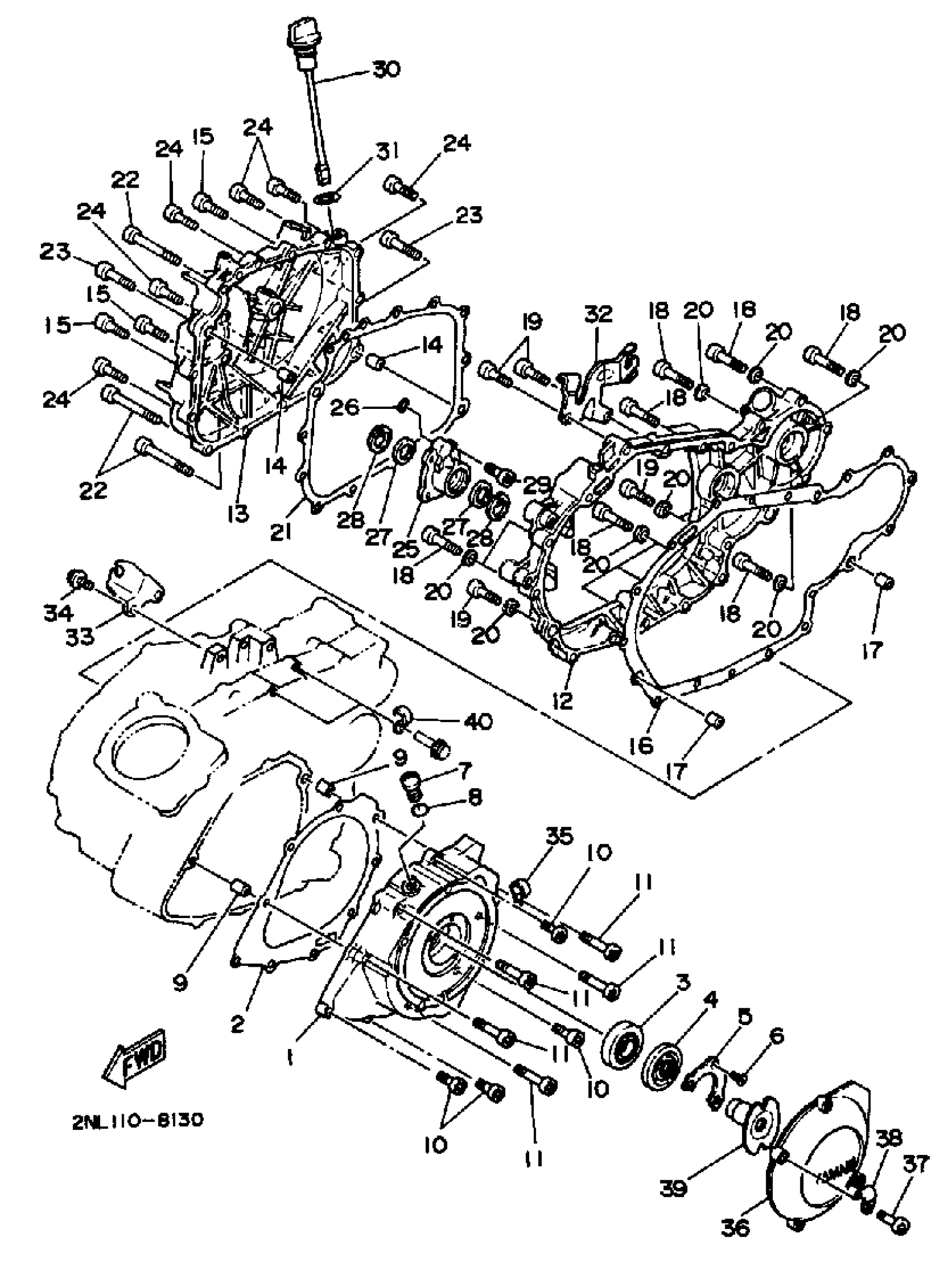

Yamaha YFP350U (TERRA PRO) 1988 CRANKCASE COVER 1 Diagram

#

Description
Price

1

ADAPTOR

1UY-15787-02-00

Unavailable

2

GASKET,CRCS

2NL-15451-10-00

Unavailable

3

BEARING (1YW)

93306-07802-00

Unavailable

4

OIL SEAL

93102-28476-00

$18.82

5

WASHER, THRUST

1UY-15719-00-00

$21.62

6

SCREW, COUNTERSUNK (21V)

90151-05023-00

$5.33

7

PLUG, STRAIGHT SCREW (5Y1)

90340-14079-00

Unavailable

8

O-RING (2H9)

93210-14369-00

$5.42

9

PIN, DOWEL

99530-12016-00

$3.85

10

BOLT,SOCKET

91317-06025-00

$1.91

11

BOLT,SOCKET

91317-06045-00

$3.14

12

SPACER, ENG MOUNT

2NL-15317-00-00

Unavailable

13

COVER, CRANKCASE 3

2NL-15431-00-00

Unavailable

14

PIN, DOWEL

99530-12016-00

$3.85

15

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

16

GASKET, GAS AIR 2

2NL-15461-10-00

Unavailable

17

PIN, DOWEL

99530-12016-00

$3.85

18

BOLT,SOCKET

91317-06035-00

$3.27

19

BOLT,SOCKET

91317-06045-00

$3.14

20

WASHER(6TA)

92907-06600-00

Unavailable

21

GASKET,CRCS CVR3

2NL-15462-10-00

Unavailable

22

BOLT, SOCKET

91317-06070-00

Unavailable

23

BOLT,SOCKET

91317-06045-00

$3.14

24

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

25

UNAVAILABLE IN PRICE BOOK

2N-L1516-40-00

Unavailable

26

O-RING (611)

93210-10096-00

Unavailable

27

OIL SEAL (20X30X7-371)

93102-20108-00

Unavailable

28

CIRCLIP (650)

93420-30042-00

$1.50

29

BOLT,SOCKET

91317-06020-00

Unavailable

30

PLUG, OIL LEVEL

1UY-15362-01-00

Unavailable

31

O-RING (5Y1)

93210-19522-00

Unavailable

32

HOLDER, CLCH CABLE

2NL-15441-00-00

Unavailable

33

UNAVAILABLE IN PRICE BOOK

2N-L1537-80-00

Unavailable

34

BOLT,SOCKET

91317-06016-00

Unavailable

35

CLAMP(51Y)

90465-08277-00

Unavailable

36

COVER, CRANKCASE 1

2NL-15411-01-00

Unavailable

37

BOLT,SOCKET

91317-06025-00

$1.91

38

CLAMP

90465-08028-00

$4.31

39

BOSS, STARTER PULLEY

3GD-15777-10-00

Unavailable

40

CLAMP(4MX)

90465-06376-00

Unavailable
