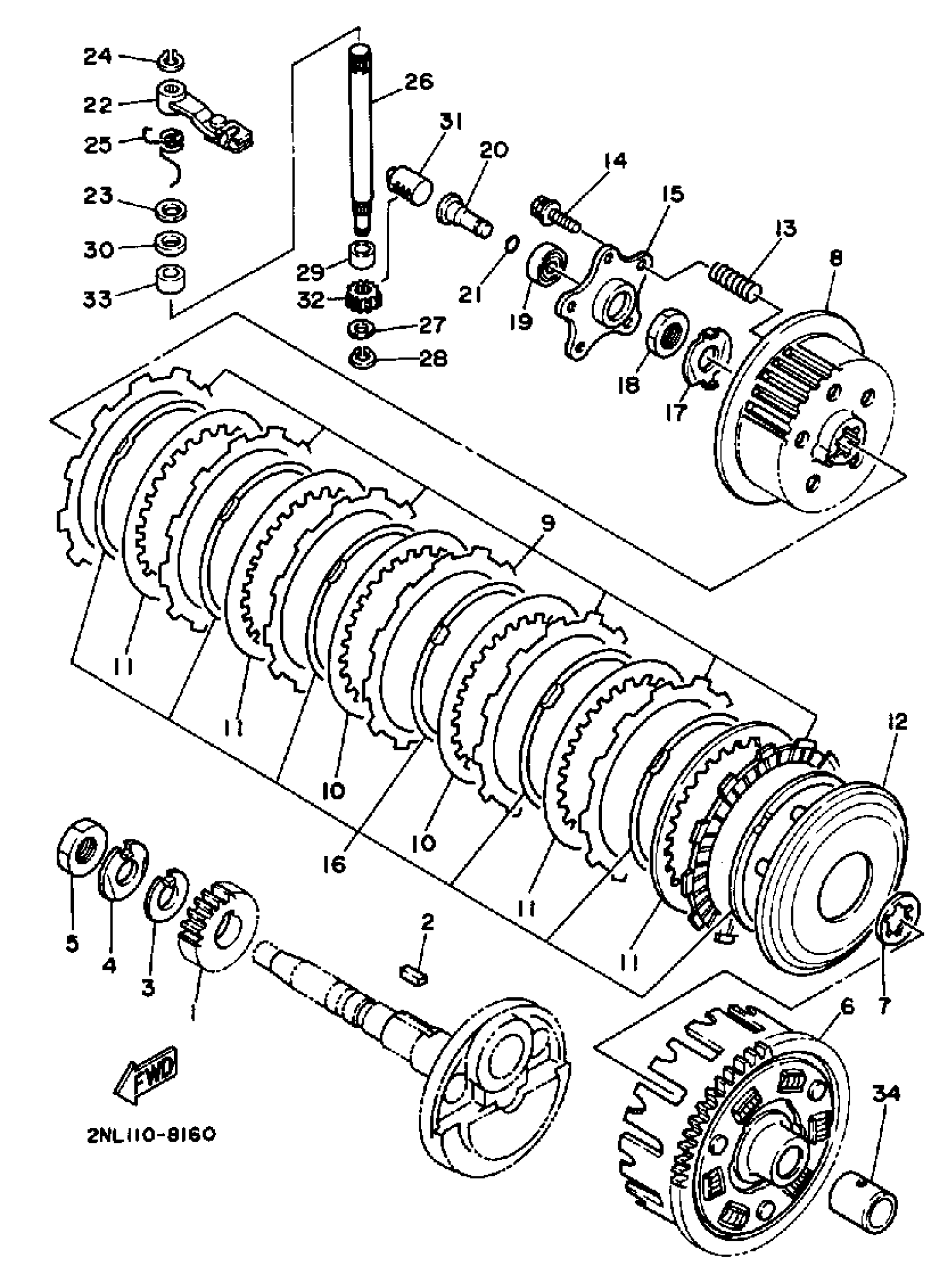

Yamaha YFP350U (TERRA PRO) 1988 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

1UY-16111-10-00

Unavailable

2

KEY, STRAIGHT (583)

90282-07021-00

$8.49

3

WASHER, LOCK

90215-22267-00

Unavailable

4

WASHER, LOCK

90215-22266-00

Unavailable

5

NUT, HEXAGON

90170-22097-00

Unavailable

6

PRIMARY DRIVEN GEAR COMP.

2NL-16150-00-00

$307.99

7

PLATE, THRUST 1

30X-16154-00-00

$25.99

8

BOSS, CLUTCH

1UY-16371-02-00

$129.99

9

PLATE, FRICTION

5Y1-16331-01-00

$29.99

10

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

11

PLATE, CLUTCH 2

168-16325-10-00

$14.49

12

PLATE, PRESSURE 1

1UY-16351-00-00

$113.99

13

SPRING, COMPRESSION(1UY)

90501-231E9-00

$11.49

14

SCREW, WITH WASHER(1AE)

90159-06123-00

$9.49

15

PLATE, PRESSURE 2

1UY-16352-00-00

Unavailable

16

SPRING, CLUTCH BOSS

2NL-16383-00-00

Unavailable

17

WASHER, LOCK(1UY)

90215-16258-00

Unavailable

18

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

19

BRG,R-B 6000 26MM 19G KY

93306-00004-00

Unavailable

20

PLATE, PUSH

1UY-16358-00-00

Unavailable

21

O-RING (26H)

93210-06632-00

Unavailable

22

PUSH LEVER ASSY

1UY-16340-00-00

Unavailable

23

WASHER (692)

90201-12M34-00

Unavailable

24

CIRCLIP(J51)

99080-09600-00

Unavailable

25

SPRING, TORSION(1UY)

90508-16713-00

Unavailable

26

AXLE, PUSH LEVER

1UY-16382-00-00

Unavailable

27

WASHER PLATE 141181390000

90201-08085-00

Unavailable

28

CIRCLIP

99080-07600-00

Unavailable

29

BUSH, FORMED (5Y9)

90383-12013-00

Unavailable

30

OIL SEAL (4G0)

93102-12224-00

Unavailable

31

ROD, PUSH 1

1UY-16356-00-00

Unavailable

32

PINION, RELEASE

3LD-16398-00-00

Unavailable

33

BUSHING (256-11154-00)

90386-12093-00

Unavailable

34

SPACER 1

1YW-16181-00-00

Unavailable
