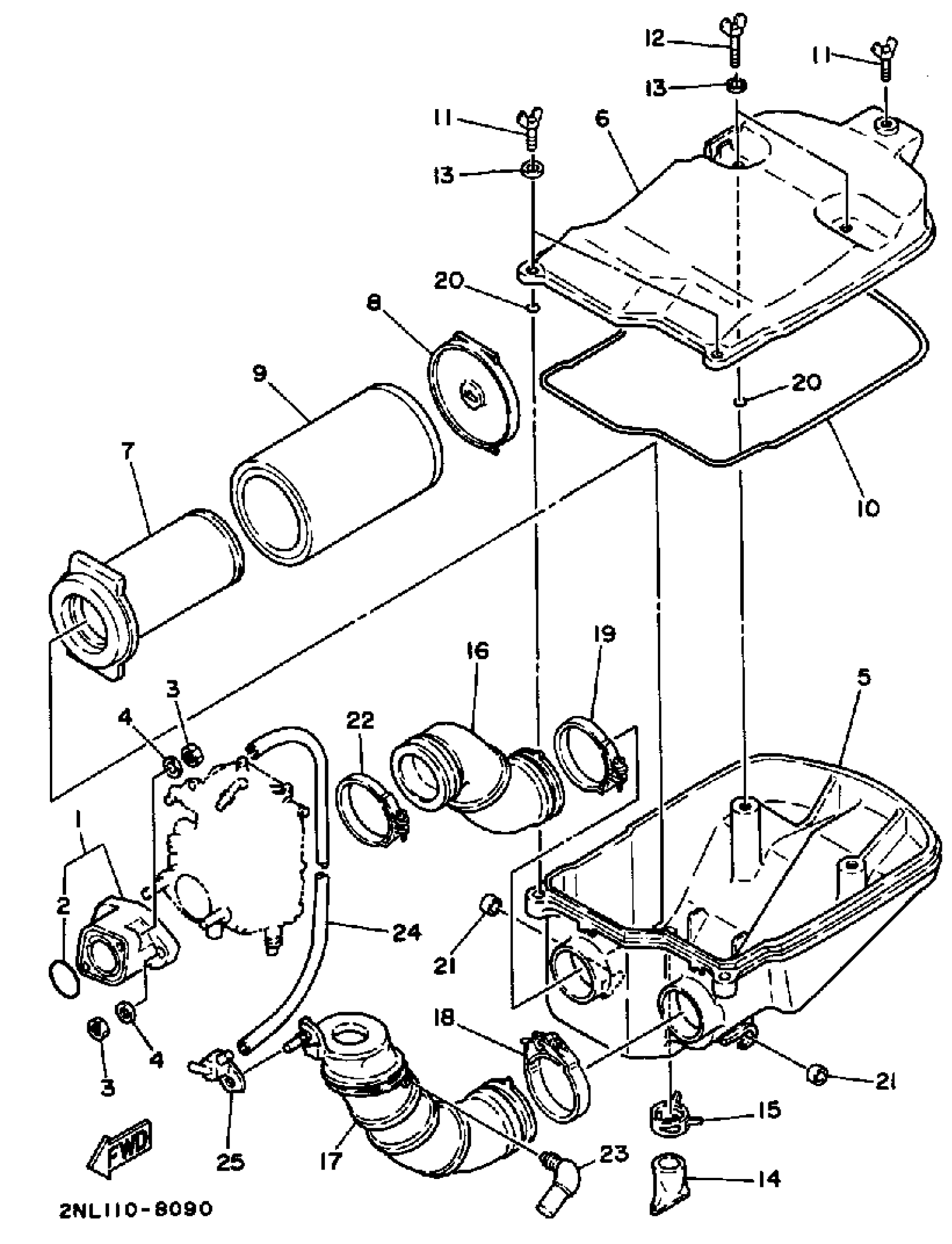

Yamaha YFP350U (TERRA PRO) 1988 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

2NL-13586-00-00

Unavailable

2

O-RING(2TY)

93210-36769-00

$11.49

3

NUT(6L2)

95333-08600-00

$2.49

4

WASHER PLATE 141181390000

90201-08085-00

$9.49

5

CASE, AIR CLEANER 1

2NL-14411-00-00

Unavailable

6

CAP, CLEANER CASE 1

2NL-14412-00-00

Unavailable

7

GUIDE

1YW-14458-01-00

$79.99

8

PLATE, ELEMENT FITTING

1UY-14468-00-00

$20.99

9

ELEMENT,AIR CLNR

1YW-14451-01-00

$18.49

10

SEAL

1VJ-14462-00-00

$18.49

11

BOLT, WING

90122-06019-00

Unavailable

12

BOLT, WING

(90122-06027-00)

Unavailable

13

. WASHER, PLATE

90201-06050-00

Unavailable

14

SEAL

59V-14457-00-00

$6.99

15

CLIP (21V)

90467-22080-00

$8.49

16

INACTIVE PART NUMBER

2NL-14453-00-00

Unavailable

17

DUCT

2NL-14437-00-00

Unavailable

18

HOSE CLAMP ASSY

90450-58002-00

Unavailable

19

HOSE CLAMP ASSY

90450-56001-00

Unavailable

20

O-RING

93210-05098-00

Unavailable

21

HOSE

90445-12718-00

Unavailable

22

HOSE CLAMP ASSY

90450-56001-00

Unavailable

23

PIPE

2NL-14419-00-00

Unavailable

24

HOSE

90445-09222-00

Unavailable

25

SEAL

36F-14457-00-00

Unavailable
