Description

Price

1

FUEL TANK COMP.

43D-F4110-10-00

Unavailable

2

TANK CAP SET

43D-F4670-01-00

$67.99

3

HOSE (L450)

90445-10144-00

$7.49

4

FILTER ASSY

43D-F4560-10-00

$48.99

5

TUBE 2

43D-F41B5-10-00

$15.49

6

. CLAMP, FUEL PIPE 1

43D-F4366-00-00

Unavailable

7

CLIP

43D-F411M-00-00

$6.99

8

TUBE 3

43D-F41B6-10-00

Unavailable

9

. CLAMP, FUEL PIPE 1

43D-F4366-00-00

Unavailable

10

CLIP

43D-F411M-00-00

$6.99

11

PROTECTOR, PIPE 2

43D-F432A-00-00

$4.94

12

BODY,FILTER

43D-F4561-00-00

$33.99

13

FUEL COCK ASSY 1

43D-F4500-10-00

$68.99

14

GROMMET

43D-F4339-00-00

$3.07

15

COLLAR

43D-F412G-00-00

$3.90

16

BOLT, HEXAGON

97017-06030-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

TUBE, DRAIN

43D-F417E-00-00

Unavailable

19

CLIP(34X)

90467-22097-00

Unavailable

20

DAMPER, LOCATING 1

43D-F4181-00-00

Unavailable

21

DAMPER

43D-F1649-00-00

Unavailable

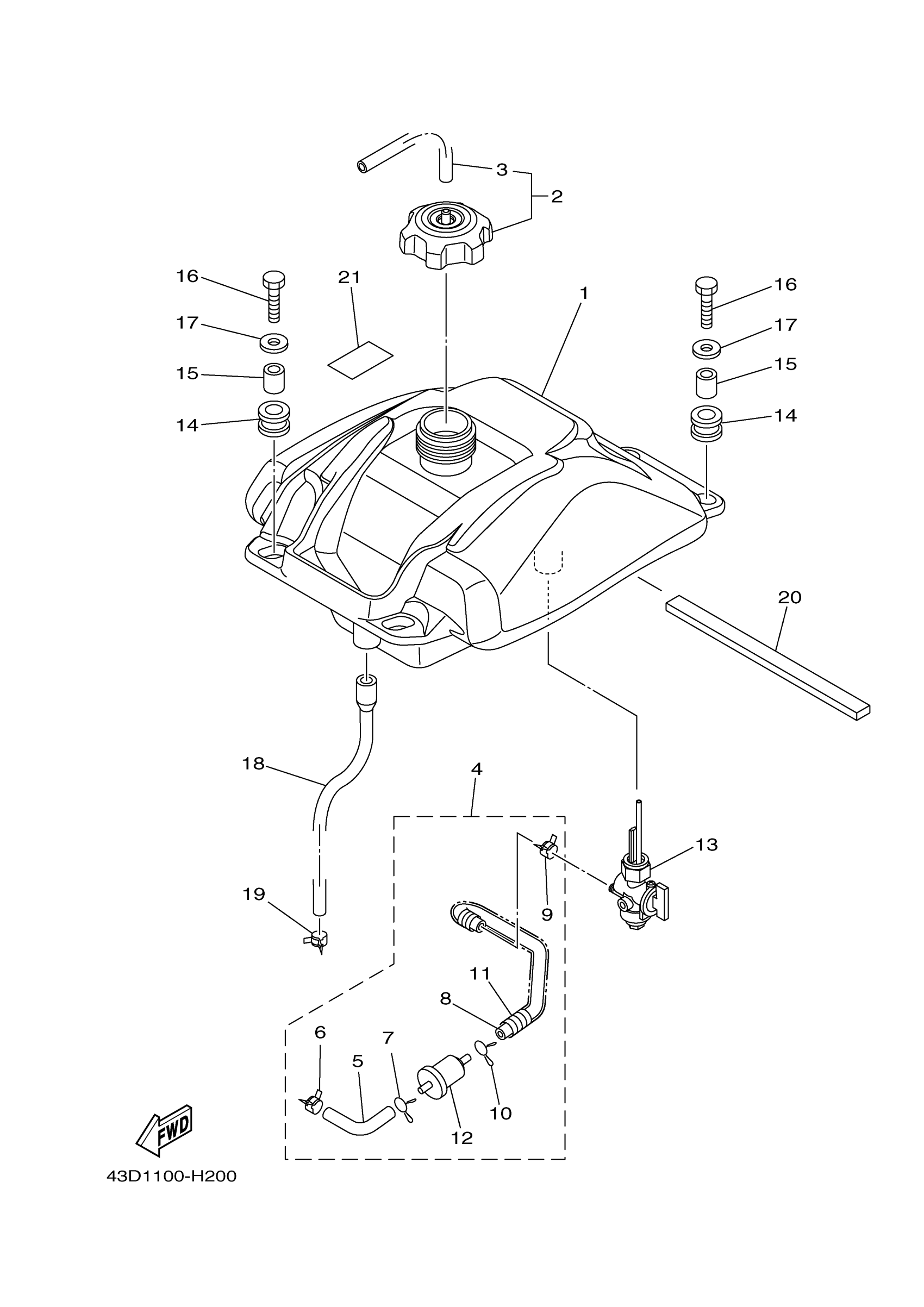

Yamaha YFM90RZW (RAPTOR 90) 43D4 2010 FUEL TANK Diagram

FUEL TANK COMP.

TANK CAP SET

HOSE (L450)

FILTER ASSY

TUBE 2

. CLAMP, FUEL PIPE 1

CLIP

TUBE 3

. CLAMP, FUEL PIPE 1

CLIP

PROTECTOR, PIPE 2

BODY,FILTER

FUEL COCK ASSY 1

GROMMET

COLLAR

BOLT, HEXAGON

WASHER(6TA)

TUBE, DRAIN

CLIP(34X)

DAMPER, LOCATING 1

DAMPER
