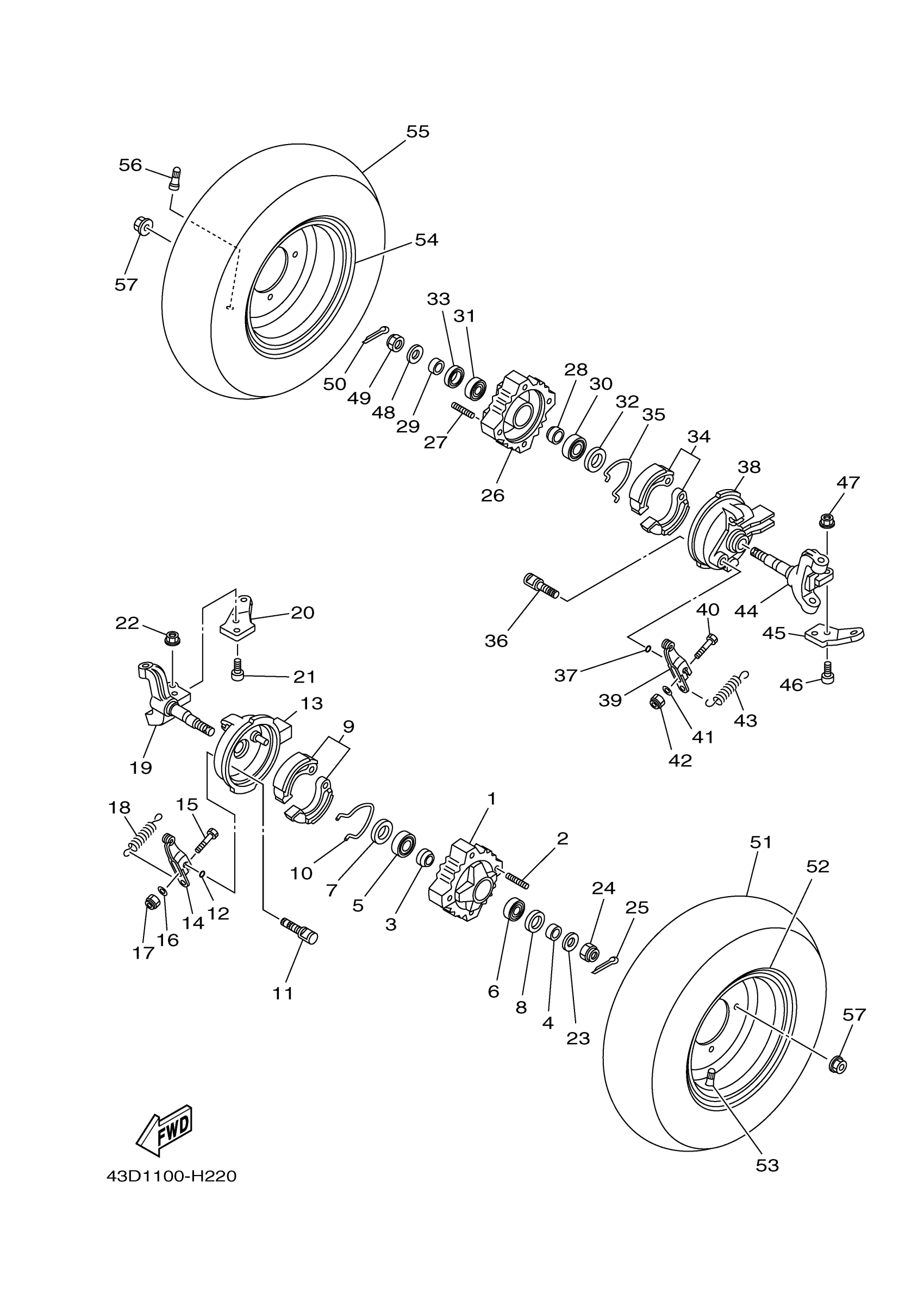

Yamaha YFM90RZW (RAPTOR 90) 43D4 2010 FRONT WHEEL Diagram
#
1
HUB, FRONT
43D-F5111-00-00
Unavailable
4
SPACER
43D-F5105-00-00
Unavailable
8
OIL SEAL 2
43D-F51H3-00-00
Unavailable
10
SPRING, RETURN
43D-F5133-00-00
Unavailable
11
CAMSHAFT
43D-F5351-00-00
Unavailable
12
O-RING
43D-F51H4-00-00
Unavailable
13
PLATE, BRAKE SHOE
43D-F5121-00-00
Unavailable
14
LEVER, CAMSHAFT 1
43D-F5155-00-00
Unavailable
16
WASHER
43D-F2149-00-00
Unavailable
17
NUT 1
43D-F2251-00-00
Unavailable
18
SPRING, RETURN
43D-F5143-00-00
Unavailable
19
KNUCKLE, STEERING 1
43D-F3511-00-00
Unavailable
20
ARM, KNUCKLE 1
43D-F3512-01-00
Unavailable
21
BOLT 1
43D-F2241-00-00
Unavailable
22
NUT
43D-F2143-00-00
Unavailable
23
WASHER 3
43D-F2245-00-00
Unavailable
24
NUT
43D-F1293-00-00
Unavailable
25
PIN
43D-F112N-00-00
Unavailable
26
HUB, FRONT
43D-F5111-00-00
Unavailable
29
SPACER
43D-F5105-00-00
Unavailable
33
OIL SEAL 2
43D-F51H3-00-00
Unavailable
35
SPRING, RETURN
43D-F5133-00-00
Unavailable
36
CAMSHAFT
43D-F5351-00-00
Unavailable
37
O-RING
43D-F51H4-00-00
Unavailable
38
PLATE, BRAKE SHOE 2
43D-F5169-00-00
Unavailable
39
LEVER, CAMSHAFT 2
43D-F5156-00-00
Unavailable
41
WASHER
43D-F2149-00-00
Unavailable
42
NUT 1
43D-F2251-00-00
Unavailable
43
SPRING, RETURN
43D-F5143-00-00
Unavailable
44
KNUCKLE, STEERING 2
43D-F3521-00-00
Unavailable
45
ARM, KNUCKLE 2
43D-F3522-01-00
Unavailable
46
BOLT 1
43D-F2241-00-00
Unavailable
47
NUT
43D-F2143-00-00
Unavailable
48
WASHER 3
43D-F2245-00-00
Unavailable
49
NUT
43D-F1293-00-00
Unavailable
50
PIN
43D-F112N-00-00
Unavailable
51
TIRE (AT18 X 7-8 M939)
43D-F510S-00-00
Unavailable
52
WHEEL COMP.
43D-F5180-00-00
Unavailable
53
AIR VALVE ASSY
43D-F5170-00-00
Unavailable
54
WHEEL COMP.
43D-F5180-00-00
Unavailable
55
TIRE (AT18 X 7-8 M939)
43D-F510S-00-00
Unavailable
56
AIR VALVE ASSY
43D-F5170-00-00
Unavailable
57
NUT
43D-F1839-00-00
Unavailable
