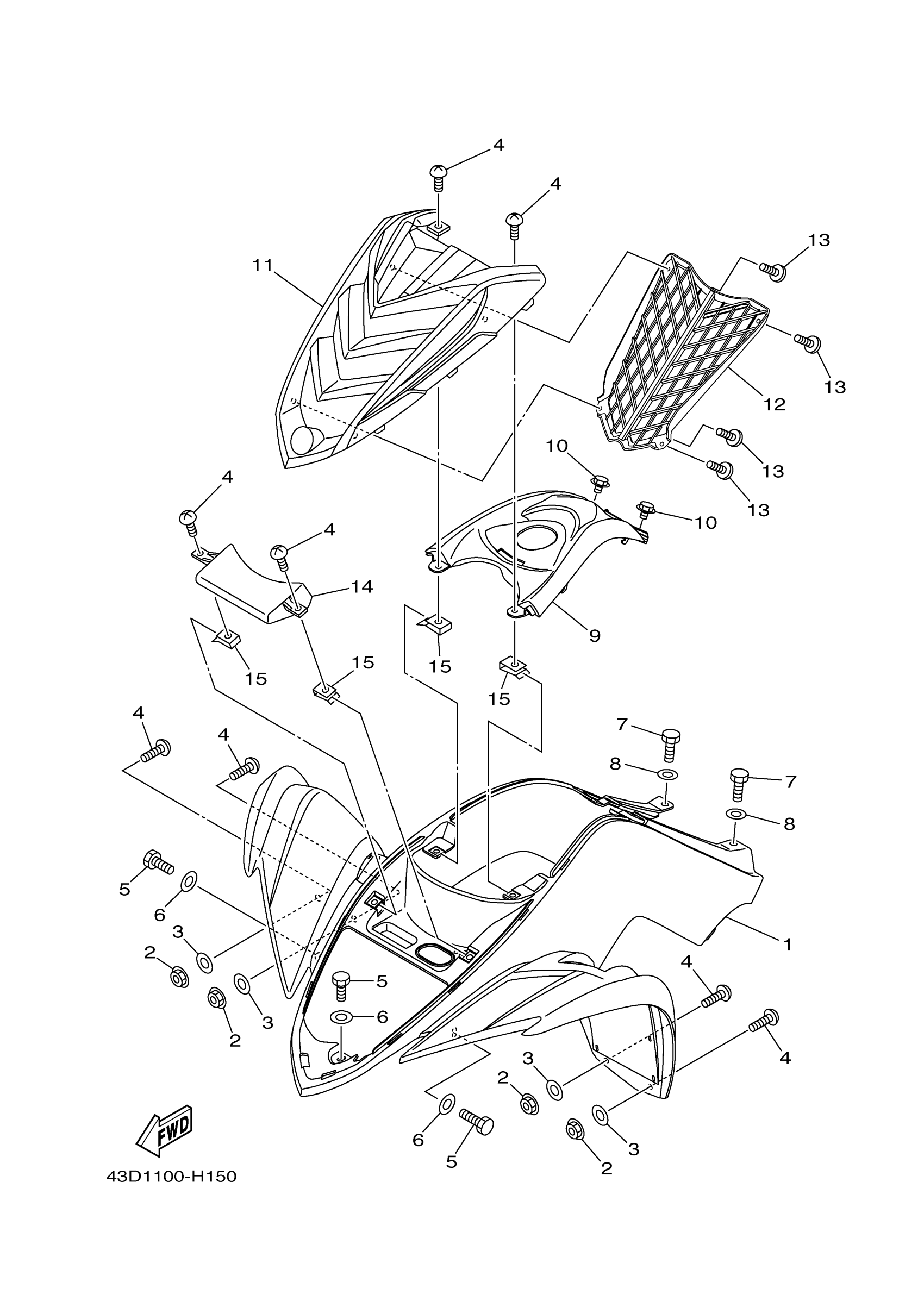

Yamaha YFM90RZW (RAPTOR 90) 43D4 2010 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY (BLUISH WHITE SOLID 1)

43D-F1500-80-00

Unavailable

2

NUT 2

43D-F1536-00-00

$5.49

3

WASHER 4

43D-F2246-00-00

$6.99

4

SCREW

43D-F4444-00-00

$6.99

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

WASHER(6TA)

92907-06600-00

$2.72

9

COVER, TOP

43D-F171A-00-00

Unavailable

10

PLUG, DRAIN

43D-F3119-00-00

$4.58

11

FENDER, FRONT 2

43D-F1556-00-00

Unavailable

12

COVER, RADIATOR

43D-E2467-00-00

$15.49

13

SCREW

43D-F4453-00-00

$2.34

14

COVER

43D-F4474-00-00

Unavailable

15

NUT 2

43D-F3834-00-00

$6.99
