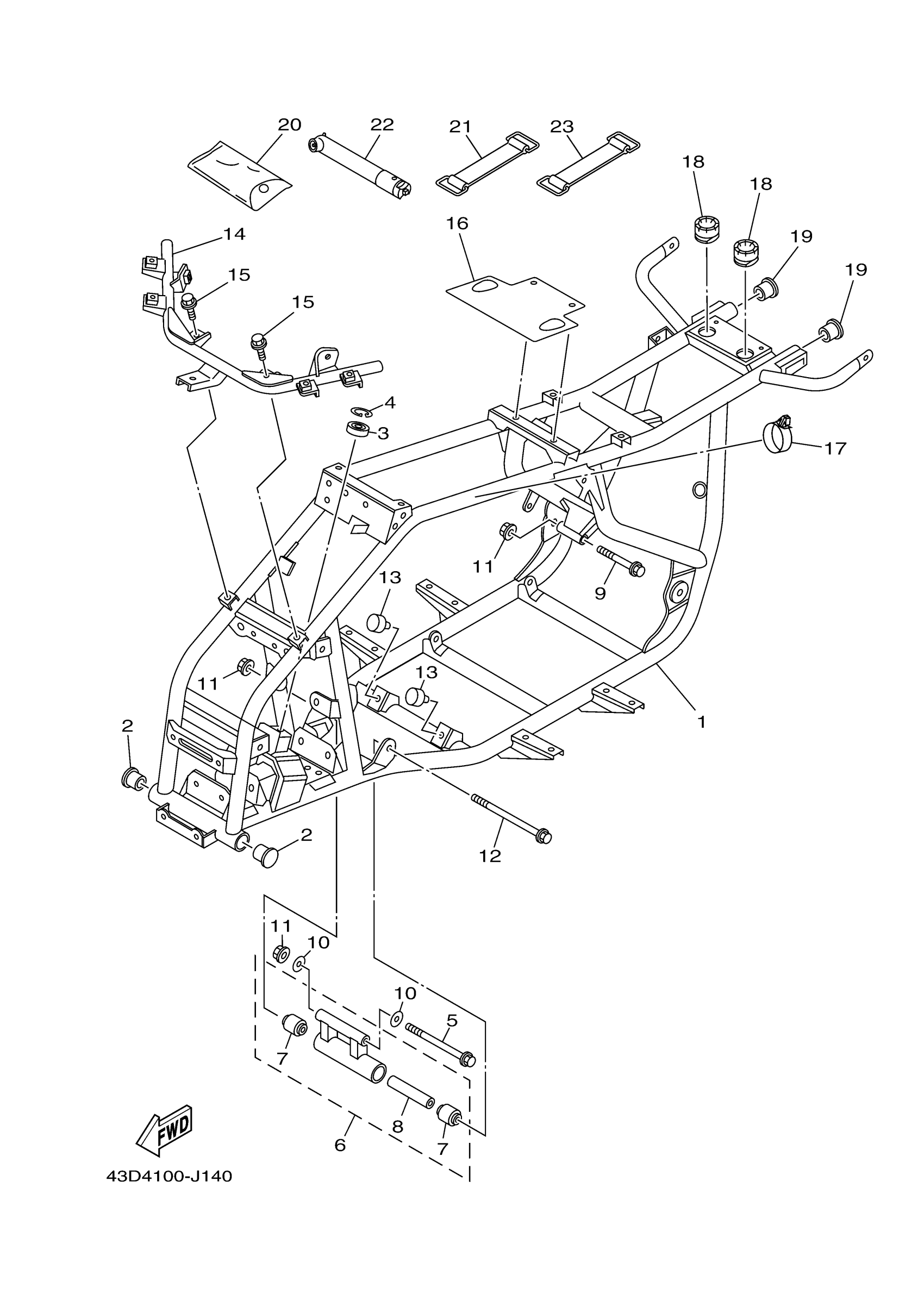

Yamaha YFM90RZW (RAPTOR 90) 43D4 2010 FRAME Diagram

#

Description
Price

1

FRAME COMP.

43D-F1110-01-00

Unavailable

2

PLUG, BLIND

43D-F1279-00-00

Unavailable

3

BEARING

43D-F11C1-00-00

Unavailable

4

CLIP

43D-F11C2-00-00

Unavailable

5

BOLT, WASHER BASED(42X)

90105-10300-00

$12.49

6

ENGINE BRACKET COMP.

43D-F1410-00-00

Unavailable

7

BUSH

43D-F11C3-00-00

Unavailable

8

. SPACER

43D-F1459-00-00

Unavailable

9

BOLT 2

43D-F1632-00-00

Unavailable

10

WASHER, FENDER MOLD

43D-F1549-00-00

Unavailable

11

NUT

43D-F1494-00-00

$3.59

12

BOLT 1

43D-E3573-00-00

Unavailable

13

DAMPER 2

43D-F112C-00-00

$6.99

14

STAY, FENDER 1

43D-F1513-00-00

Unavailable

15

BOLT, FLANGE

95817-08012-00

$5.49

16

PROTECTOR, ENGINE

43D-F1471-00-00

Unavailable

17

CLAMP, HOSE

43D-F1823-00-00

Unavailable

18

DAMPER

43D-F113B-00-00

Unavailable

19

PLUG, BLIND

43D-F1289-00-00

Unavailable

20

TOOL KIT

43D-F8100-00-00

Unavailable

21

BAND 2

43D-F4399-00-00

Unavailable

22

GAUGE, AIR

43D-F811A-01-00

Unavailable

23

BAND 1

43D-F4398-00-00

Unavailable
