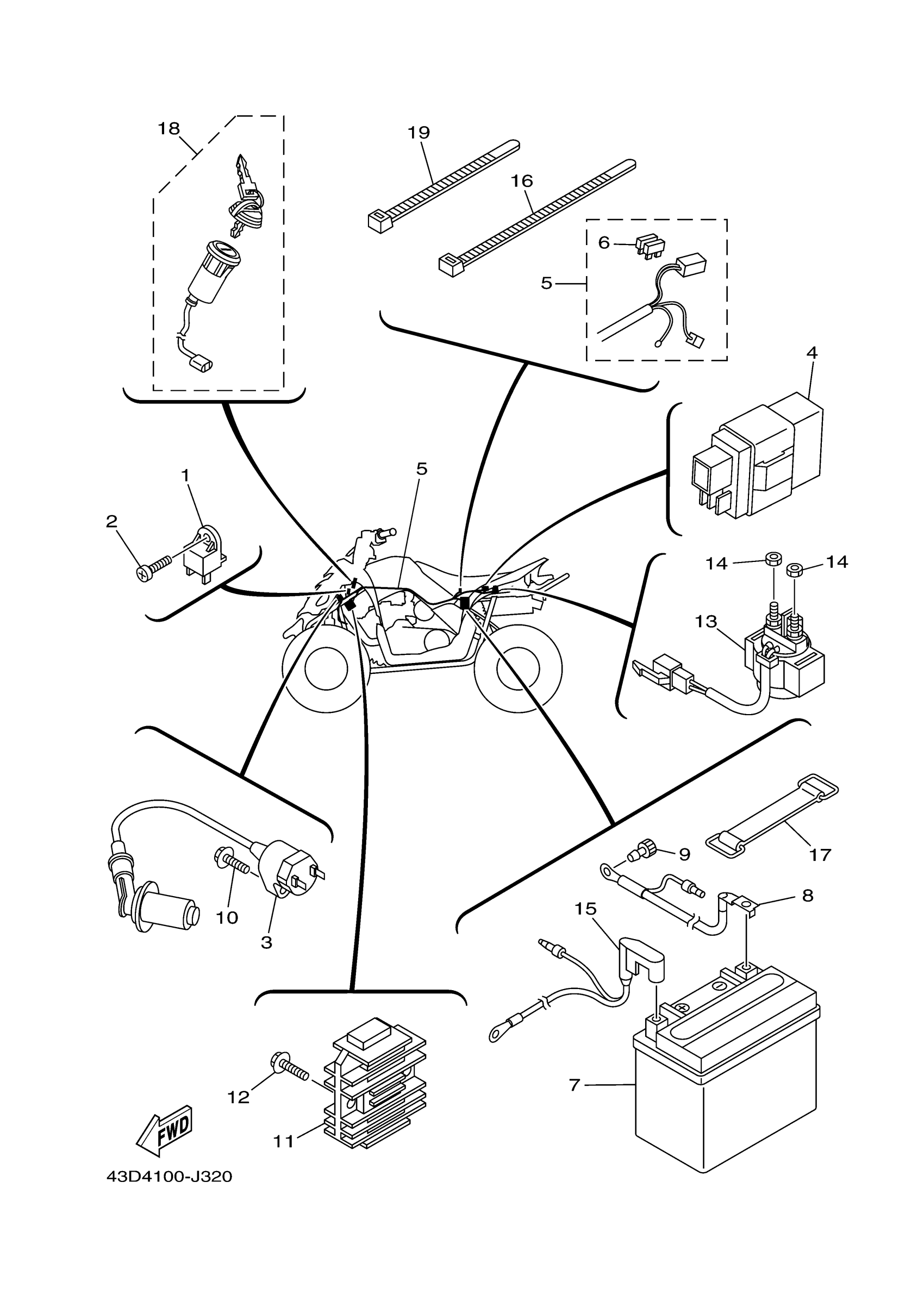

Yamaha YFM90RZW (RAPTOR 90) 43D4 2010 ELECTRICAL 1 Diagram

#

Description
Price

1

THERMO SWITCH ASSY

43D-H2560-00-00

Unavailable

2

SCREW

43D-F4473-00-00

Unavailable

3

IGNITION COIL ASSY

43D-H2310-00-00

$92.99

4

C.D.I. UNIT ASSY

43D-H5540-00-00

$254.99

5

WIRE HARNESS ASSY

43D-H2590-00-00

Unavailable

6

FUSE (10A)

42X-82151-00-00

$4.32

7

YTX5LBS YUASA BATTERY - SA

YTX-5LBS0-00-00

Unavailable

8

WIRE, MINUS LEAD

43D-H2116-01-00

Unavailable

9

SCREW, 1

43D-F2969-00-00

Unavailable

10

BOLT

43D-F1531-00-00

Unavailable

11

RECTIFIER & REGULATOR ASSY

43D-H1960-00-00

Unavailable

12

BOLT, FLANGE

95817-06016-00

$2.75

13

STARTER RELAY ASSY

43D-H1940-00-00

$80.99

14

NUT(6TA)

95317-06600-00

$3.55

15

WIRE, PLUS LEAD

43D-H2115-01-00

$53.99

16

CLAMP, HOSE

43D-F2591-00-00

Unavailable

17

BAND 1

43D-F4398-00-00

Unavailable

18

MAIN SWITCH ASSY

43D-H2510-00-00

Unavailable

19

CLAMP

43D-F3466-00-00

Unavailable
