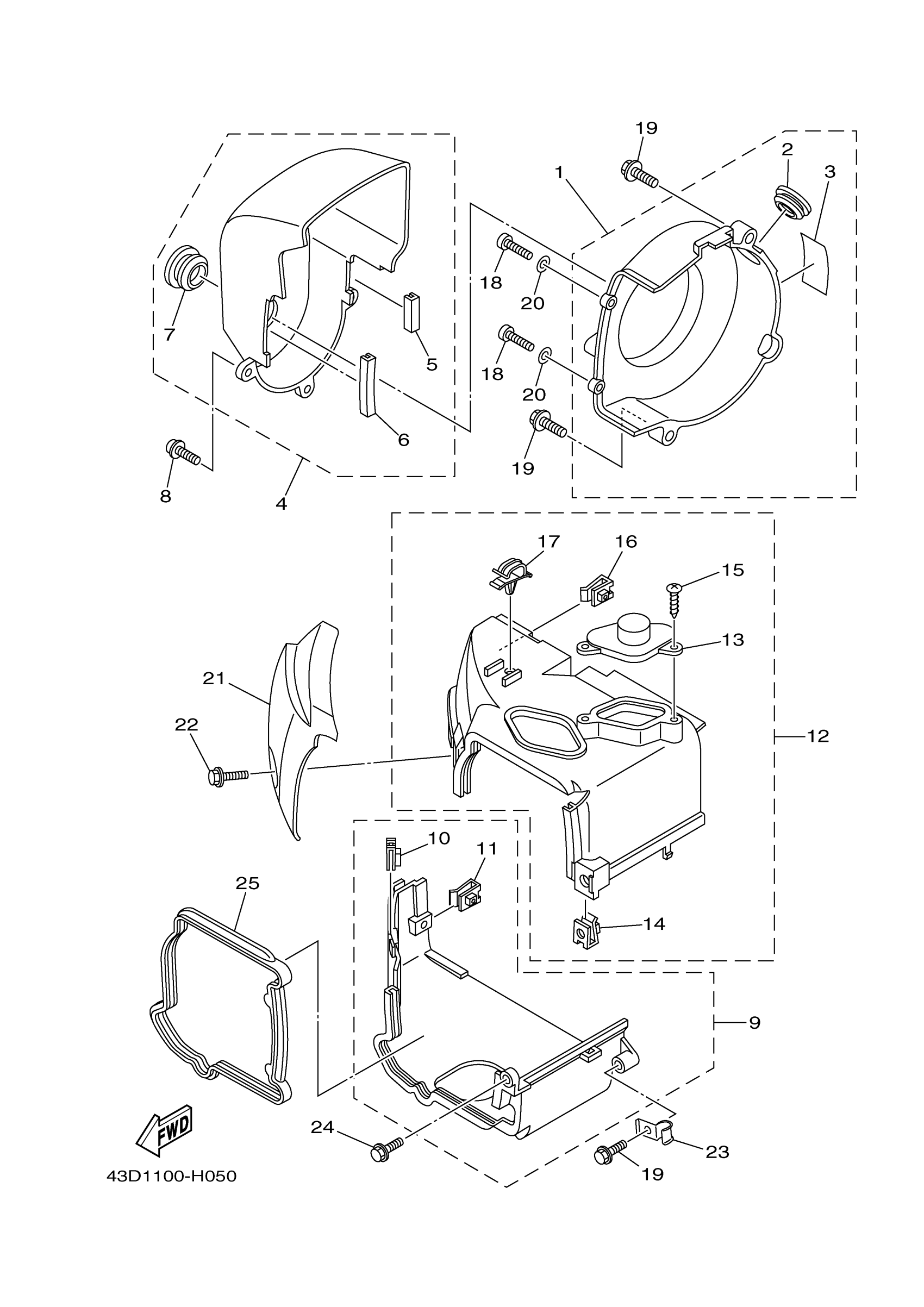

Yamaha YFM90RZW (RAPTOR 90) 43D4 2010 AIR SHROUD FAN Diagram

#

Description
Price

1

AIR SHROUD ASSY

43D-E2660-00-00

Unavailable

2

GROMMET SHROUD 1

43D-E261B-00-00

Unavailable

3

LABEL

43D-E3889-00-00

$2.39

4

DUCT INLET COMP.

43D-E2601-00-00

$35.99

5

DAMPER, AIR SHROUD 2

43D-E2659-00-00

$6.99

6

DAMPER, AIR SHROUD 3

43D-E2668-00-00

Unavailable

7

GROMMET SHROUD 2

43D-E261C-00-00

$3.48

8

SCREW, WITH WASHER (1T4/2F3)

90159-05018-00

$8.49

9

AIR SHROUD ASSY

43D-E2620-00-00

$19.99

10

NUT SPRING 1

43D-E261D-00-00

Unavailable

11

NUT SPRING 2

43D-E261F-00-00

Unavailable

12

AIR SHROUD ASSY.,2

43D-E2650-00-00

Unavailable

13

COVER 1

43D-E261J-00-00

Unavailable

14

NUT SPRING 1

43D-E261D-00-00

Unavailable

15

. SCREW

43D-E4567-00-00

Unavailable

16

NUT SPRING 2

43D-E261F-00-00

Unavailable

17

CLAMP 2

43D-E261G-00-00

Unavailable

18

SCREW, PAN HEAD

43D-E4325-00-00

Unavailable

19

. BOLT, FLANGE

95027-06020-00

Unavailable

20

WASHER

43D-E4475-00-00

Unavailable

21

COVER 2

43D-E261K-00-00

Unavailable

22

BOLT, FLANGE

95817-06025-00

Unavailable

23

CLAMP 1

43D-E262K-00-00

Unavailable

24

BOLT, FLANGE

95022-06016-00

Unavailable

25

SEAL 1

43D-E261H-00-00

Unavailable
