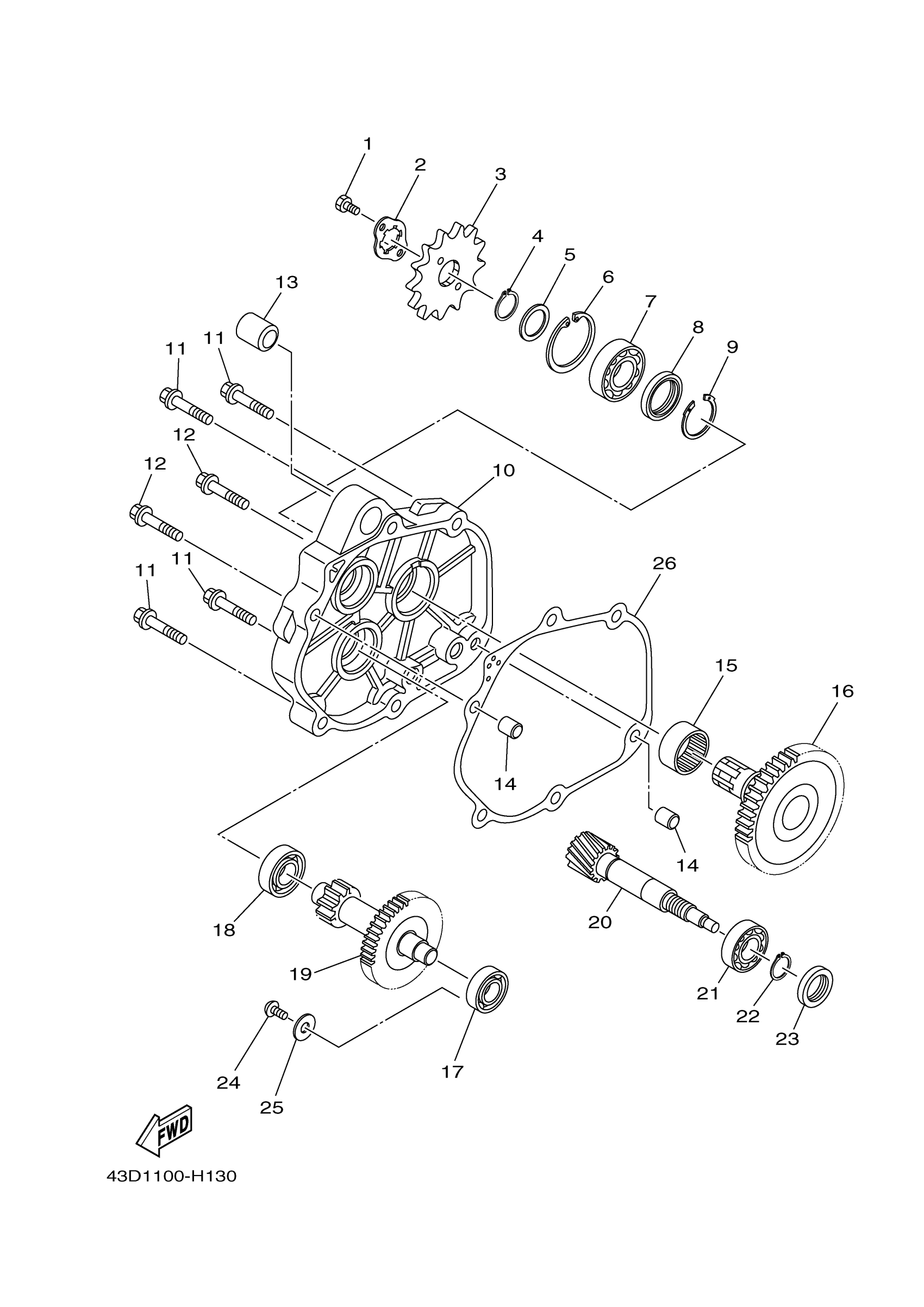

Yamaha YFM90RYL (RAPTOR 90) 43D10 2009 TRANSMISSION Diagram

#

Description
Price

1

BOLT(3JP)

97017-06010-00

$3.76

2

WASHER, LOCK

43D-E7464-00-00

Unavailable

3

SPROCKET, DRIVE (13T)

43D-E7461-00-00

$23.99

4

CIRCLIP(1AR)

99009-20400-00

$8.49

5

WASHER

43D-E4285-00-00

$7.99

6

CIRCLIP

93420-42801-00

$2.82

7

JOURNAL

43D-E7412-00-00

Unavailable

8

OIL SEAL

43D-E7465-00-00

$6.99

9

CIRCLIP

43D-E2842-00-00

$4.16

10

PLATE, COVER

43D-E7471-00-00

Unavailable

11

BOLT, FLANGE

95822-08035-00

$4.14

12

BOLT, FLANGE

95817-08040-00

$7.49

13

BUSH

43D-E5582-00-00

Unavailable

14

PIN, DOWEL

43D-E7498-00-00

Unavailable

15

JOURNAL 2

43D-E7413-00-00

Unavailable

16

DRIVE AXLE ASSY

43D-E7420-00-00

Unavailable

17

JOURNAL 1

43D-E7422-00-00

Unavailable

18

JOURNAL 2

43D-E7423-00-00

Unavailable

19

MAIN AXLE COMP.

43D-E7410-00-00

Unavailable

20

AXLE, COUNTER

43D-E7431-00-00

Unavailable

21

BEARING 1

43D-E7156-00-00

Unavailable

22

CIRCLIP

43D-E5744-00-00

Unavailable

23

OIL SEAL

43D-E7499-00-00

Unavailable

24

SCREW

43D-E2614-00-00

Unavailable

25

WASHER

43D-E2674-00-00

Unavailable

26

GASKET, MIDDLE GEAR CASE

43D-E7518-09-00

Unavailable
