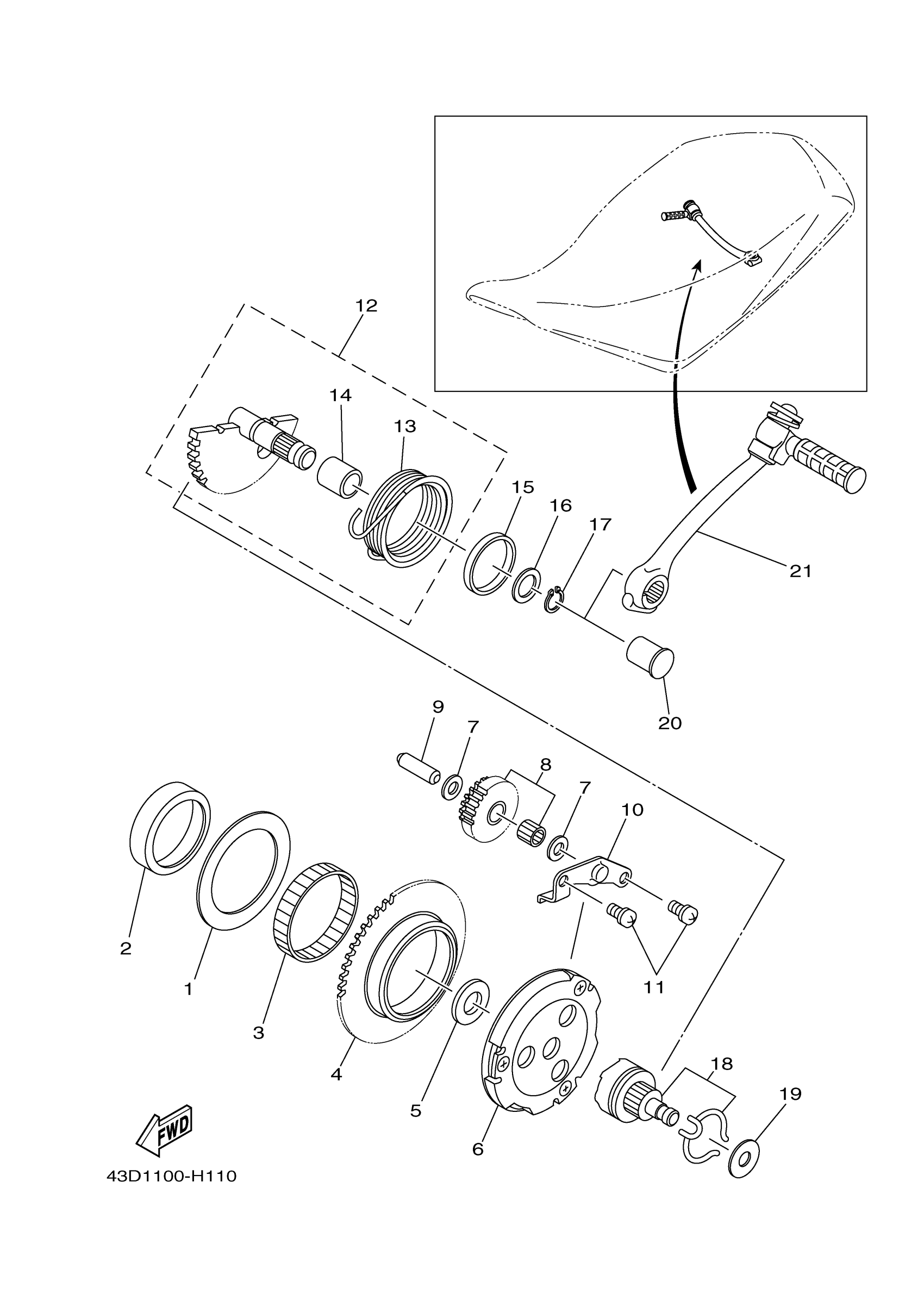

Yamaha YFM90RYL (RAPTOR 90) 43D10 2009 STARTER Diagram

#

Description
Price

1

WASHER, PLATE(3WF)

90201-551P8-00

Unavailable

2

BOSS, GEAR 2

43D-E5538-00-00

Unavailable

3

BEARING

43D-E5596-00-00

$29.99

4

WHEEL, STARTER

43D-E5524-00-00

$121.99

5

WASHER

43D-E3995-00-00

$8.99

6

STARTER CLUTCH ASSY

43D-E5570-00-00

$170.99

7

WASHER, SEAT

1SC-F4746-00-00

$2.13

8

KICK GEAR ASSY

43D-E5640-00-00

Unavailable

9

SHAFT, IDLE GEAR

43D-E3342-00-00

$4.84

10

PLATE, IDLE GEAR

43D-E5532-00-00

$8.99

11

SCREW

43D-E1834-00-00

$2.50

12

KICK SHAFT UNIT ASSY

43D-E5600-00-00

Unavailable

13

SPRING, KICK

43D-E5665-00-00

Unavailable

14

BOSS, KICK AXLE

43D-E5677-00-00

$9.99

15

SPACER

43D-E5666-00-00

Unavailable

16

WASHER

43D-E2456-00-00

Unavailable

17

CIRCLIP(13H)

99009-14400-00

Unavailable

18

IDLE GEAR ASSY

43D-E5650-00-00

Unavailable

19

WASHER

43D-E2664-00-00

Unavailable

20

CAP

43D-E6773-00-00

Unavailable

21

KICK CRANK ASSY

43D-E5620-00-00

Unavailable
