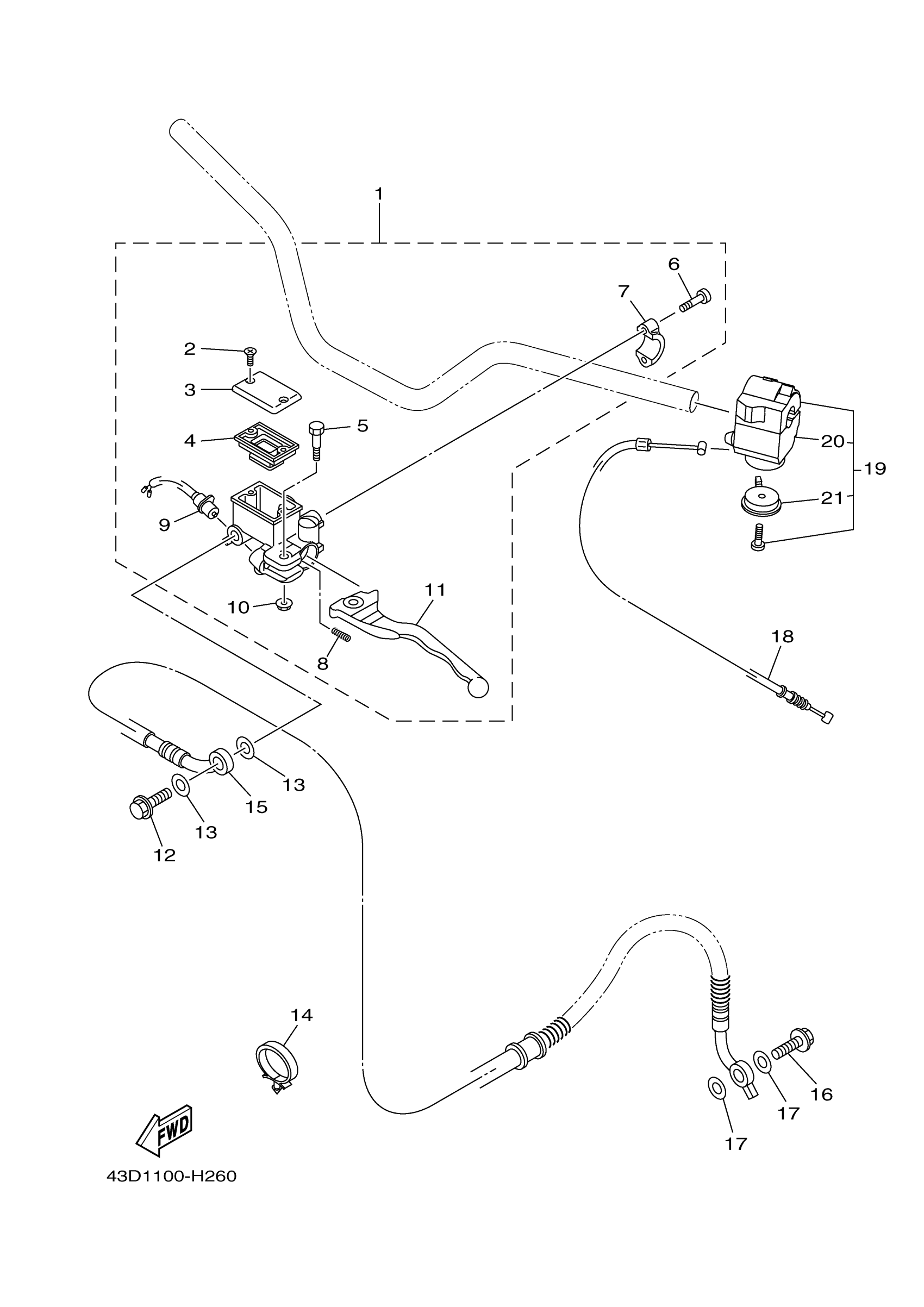

Yamaha YFM90RYL (RAPTOR 90) 43D10 2009 REAR MASTER CYLINDER Diagram
#
Description
Price
1
RR. MASTER CYLINDER ASSY.
43D-F583V-00-00
Unavailable
3
CAP, RESERVOIR
43D-F5852-00-00
Unavailable
4
GASKET, DIAPHRAGM
43D-F5854-00-00
Unavailable
5
. BOLT
43D-F2277-00-00
Unavailable
6
SCREW 5
43D-F11C9-00-00
Unavailable
7
. BRACKET, MASTER CYLINDER
43D-F5867-00-00
Unavailable
9
STOP SWITCH ASSY
43D-H2550-00-00
Unavailable
10
. NUT 1
43D-F3833-00-00
Unavailable
11
LEVER 1
43D-H3912-00-00
Unavailable
14
CLAMP 1
43D-F53N5-00-00
Unavailable
15
HOSE, BRAKE
43D-F5874-00-00
Unavailable
18
CABLE, STARTER 1
43D-F6331-00-00
Unavailable
19
SWITCH, HANDLE 2
43D-H3975-00-00
Unavailable
20
SWITCH ASSY
43D-H259E-00-00
Unavailable
21
LEVER, STARTER
43D-H3941-00-00
Unavailable
