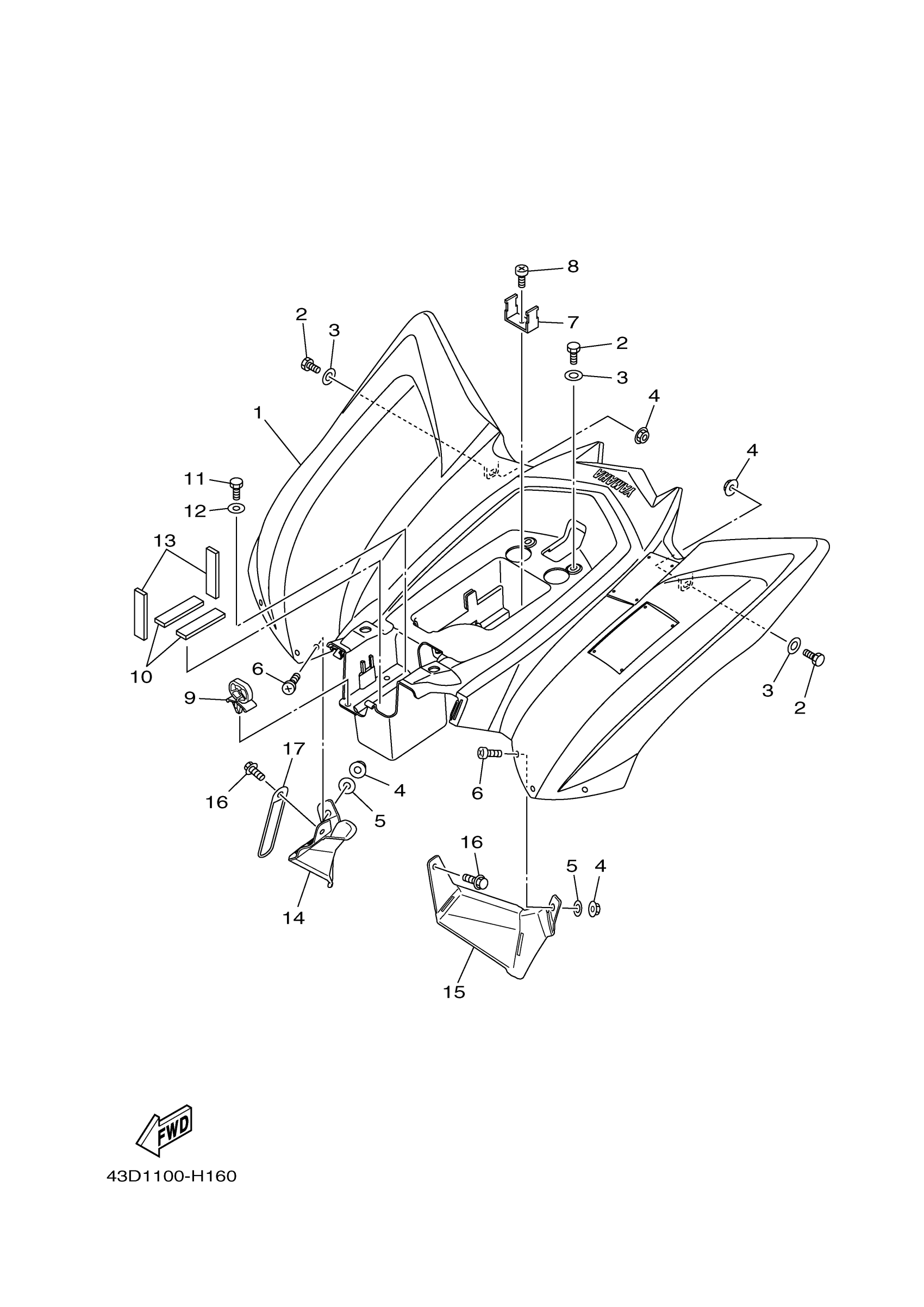

Yamaha YFM90RYL (RAPTOR 90) 43D10 2009 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER ASSY.

43D-F1600-10-00

$242.99

2

BOLT, HEXAGON

97017-06020-00

$4.06

3

WASHER(6TA)

92907-06600-00

$2.72

4

NUT 2

43D-F1536-00-00

$5.49

5

WASHER 4

43D-F2246-00-00

$6.99

6

SCREW

43D-F4444-00-00

$6.99

7

STAY 1

43D-F164F-00-00

Unavailable

8

SCREW

43D-E4565-00-00

Unavailable

9

CLIP

43D-F3447-00-00

$7.99

10

DAMPER 2

43D-F1639-00-00

Unavailable

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

WASHER(6TA)

92907-06600-00

$2.72

13

DAMPER

43D-F1649-00-00

$3.43

14

COVER, SIDE 1

43D-F1711-00-00

Unavailable

15

COVER, SIDE 2

43D-F1721-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

17

CLAMP 1

43D-E262K-00-00

Unavailable
