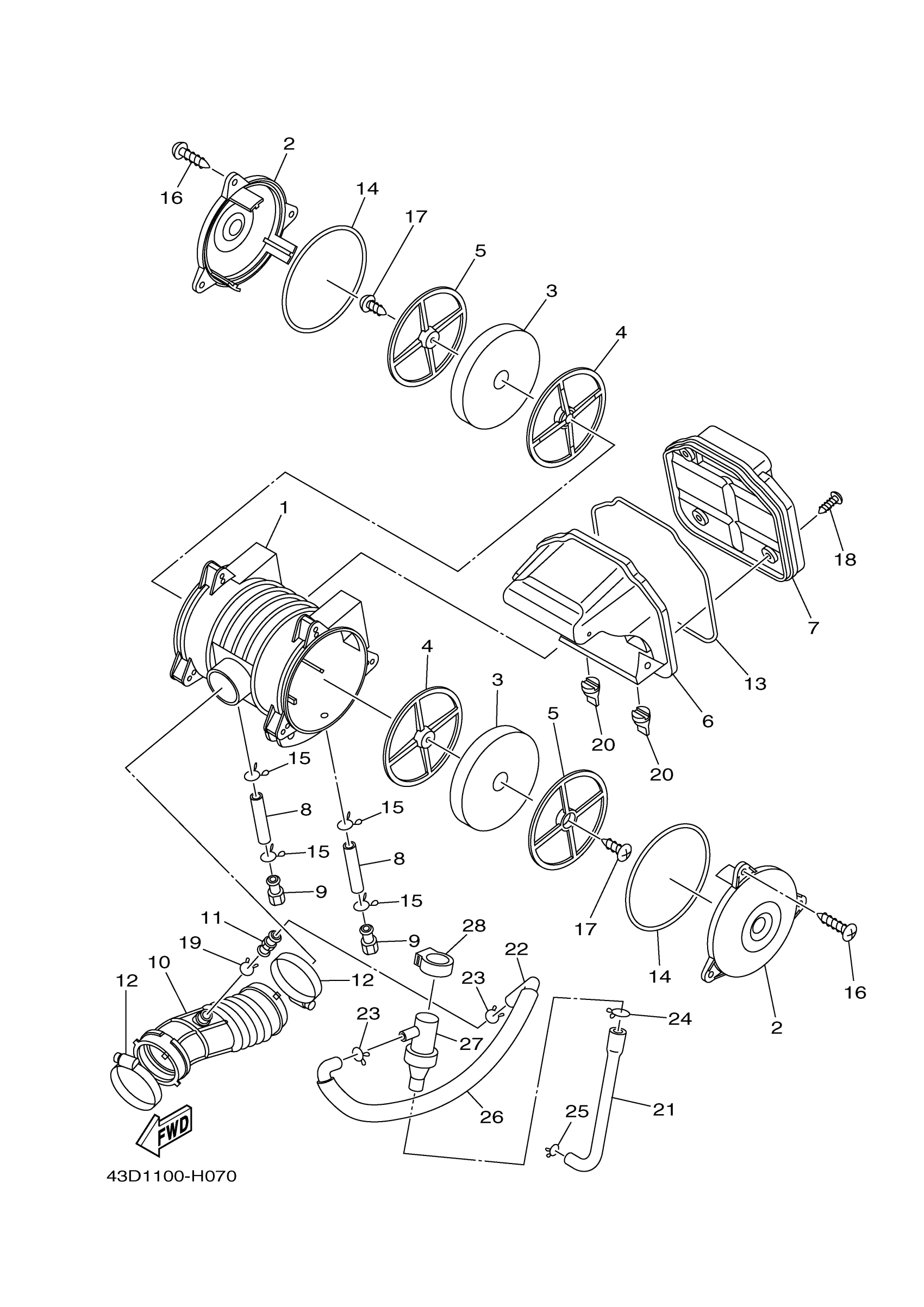

Yamaha YFM90RYL (RAPTOR 90) 43D10 2009 INTAKE Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

43D-E4411-00-00

Unavailable

2

COVER, AIR CLEANER

43D-E449E-10-00

$14.49

3

ELEMENT, AIR CLEANER

43D-E4451-00-00

$7.99

4

PLATE,ELEMENT FITTING

43D-E4468-10-00

Unavailable

5

. PLATE ELEMENT SET 2

43D-E440H-00-00

Unavailable

6

COVER 1

43D-E4417-00-00

Unavailable

7

COVER 2

43D-E4418-00-00

Unavailable

8

PIPE, DRAIN

43D-E443E-00-00

$2.50

9

CAP, DRAIN PIPE

43D-E4382-00-00

Unavailable

10

JOINT, AIR CLEANER 1

43D-E4453-00-00

Unavailable

11

PIPE

43D-E4419-00-00

Unavailable

12

. BAND

43D-E4455-00-00

Unavailable

13

SEAL

43D-E4452-00-00

$5.49

14

SEAL RING

43D-E41A1-00-00

$6.99

15

CLIP

43D-E4137-00-00

Unavailable

16

SCREW

43D-E4429-00-00

Unavailable

17

SCREW

43D-E5793-00-00

Unavailable

18

SCREW

43D-E6739-00-00

Unavailable

19

CLIP

43D-E4159-00-00

Unavailable

20

VALVE, DRAIN

43D-E4222-00-00

Unavailable

21

PIPE

43D-E4148-00-00

Unavailable

22

PIPE

43D-E4149-00-00

Unavailable

23

CLIP

43D-E4159-00-00

Unavailable

24

CLIP 1

43D-E449C-00-00

Unavailable

25

CLIP 2

43D-E449D-00-00

Unavailable

26

PROTECTOR

43D-E442F-00-00

Unavailable

27

PIPE, BREATHER 3

43D-E1126-00-00

Unavailable

28

CAP

43D-E4169-00-00

Unavailable
