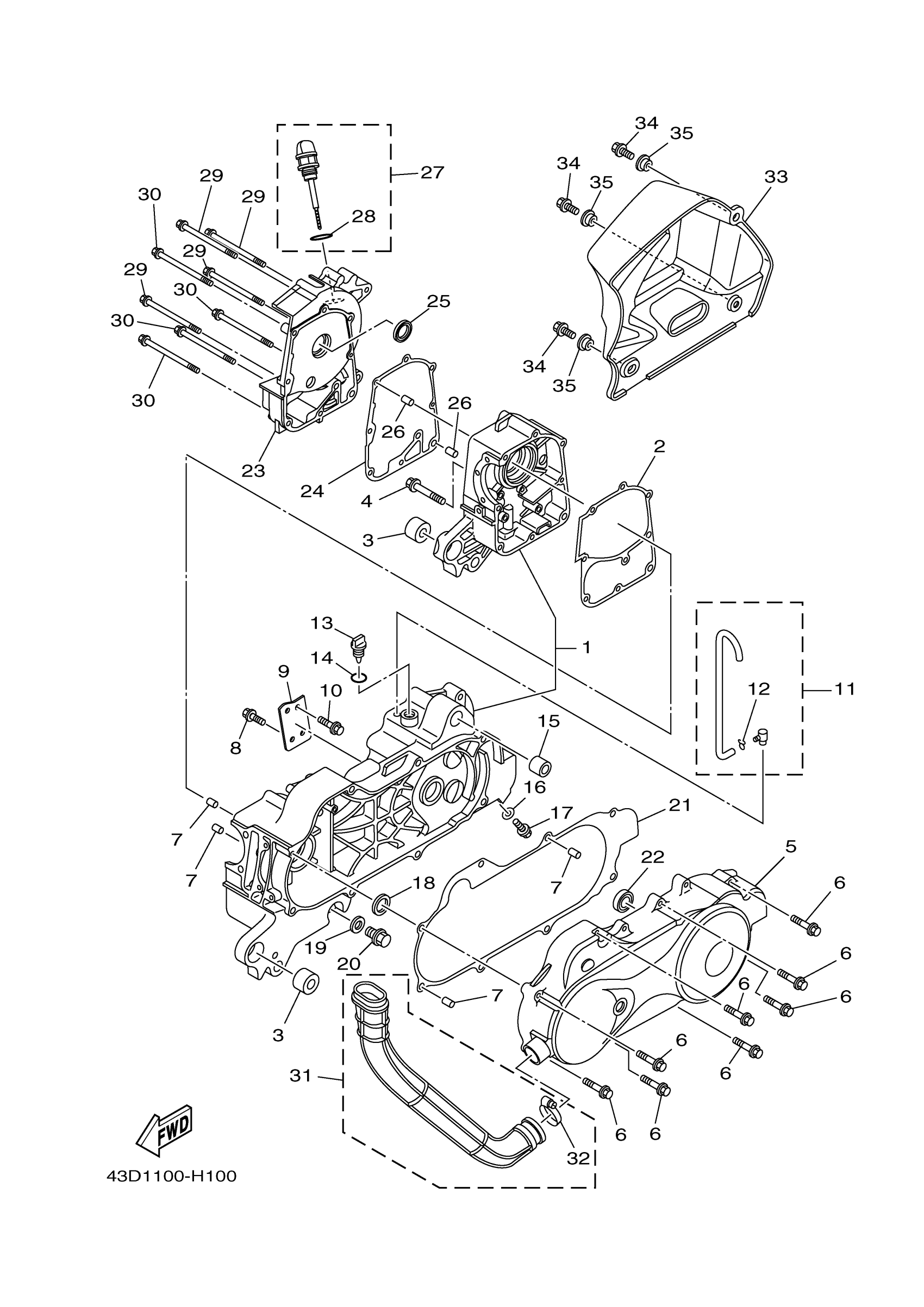

Yamaha YFM90RYL (RAPTOR 90) 43D10 2009 CRANKCASE Diagram
#
1
CRANKCASE ASSY
43D-E5100-00-00
Unavailable
5
COVER, CRANKCASE 1
43D-E5411-00-00
Unavailable
9
BRACKET
43D-E5199-00-00
Unavailable
10
BOLT
43D-E2228-00-00
Unavailable
11
BREATHER PIPE ASSY
43D-E1104-00-00
Unavailable
12
CLIP, PIPE
43D-E1188-00-00
Unavailable
13
PLUG, OIL
43D-E5363-00-00
Unavailable
14
O-RING
43D-E5114-00-00
Unavailable
15
BUSH
43D-E5582-00-00
Unavailable
16
WASHER 1
43D-E1557-00-00
Unavailable
17
BOLT, FLANGE
95817-08012-00
Unavailable
18
OIL SEAL
43D-E511B-00-00
Unavailable
19
WASHER, PLATE 3412175700
90201-12172-00
Unavailable
20
PLUG, DRAIN
43D-E5341-00-00
Unavailable
21
METAL, FILLER
43D-E1541-00-00
Unavailable
22
BEARING 2
43D-E7166-00-00
Unavailable
23
COVER, CRANKCASE 2
43D-E5421-00-00
Unavailable
24
GASKET, CRANKCASE COVER 2
43D-E5461-00-00
Unavailable
25
OIL SEAL
43D-E511A-00-00
Unavailable
27
PLUG, OIL LEVEL
43D-E536A-00-00
Unavailable
28
OIL SEAL
43D-E511C-00-00
Unavailable
29
BOLT
43D-E2615-00-00
Unavailable
30
BOLT, FLANGE
95022-06100-00
Unavailable
31
AIR DUCT ASSY
43D-E5470-00-00
Unavailable
32
BAND
43D-E54F3-00-00
Unavailable
33
COVER, CHAIN CASE
43D-E5418-00-00
Unavailable
34
BOLT, FLANGE
95817-06016-00
Unavailable
35
COLLAR
43D-F1116-00-00
Unavailable
