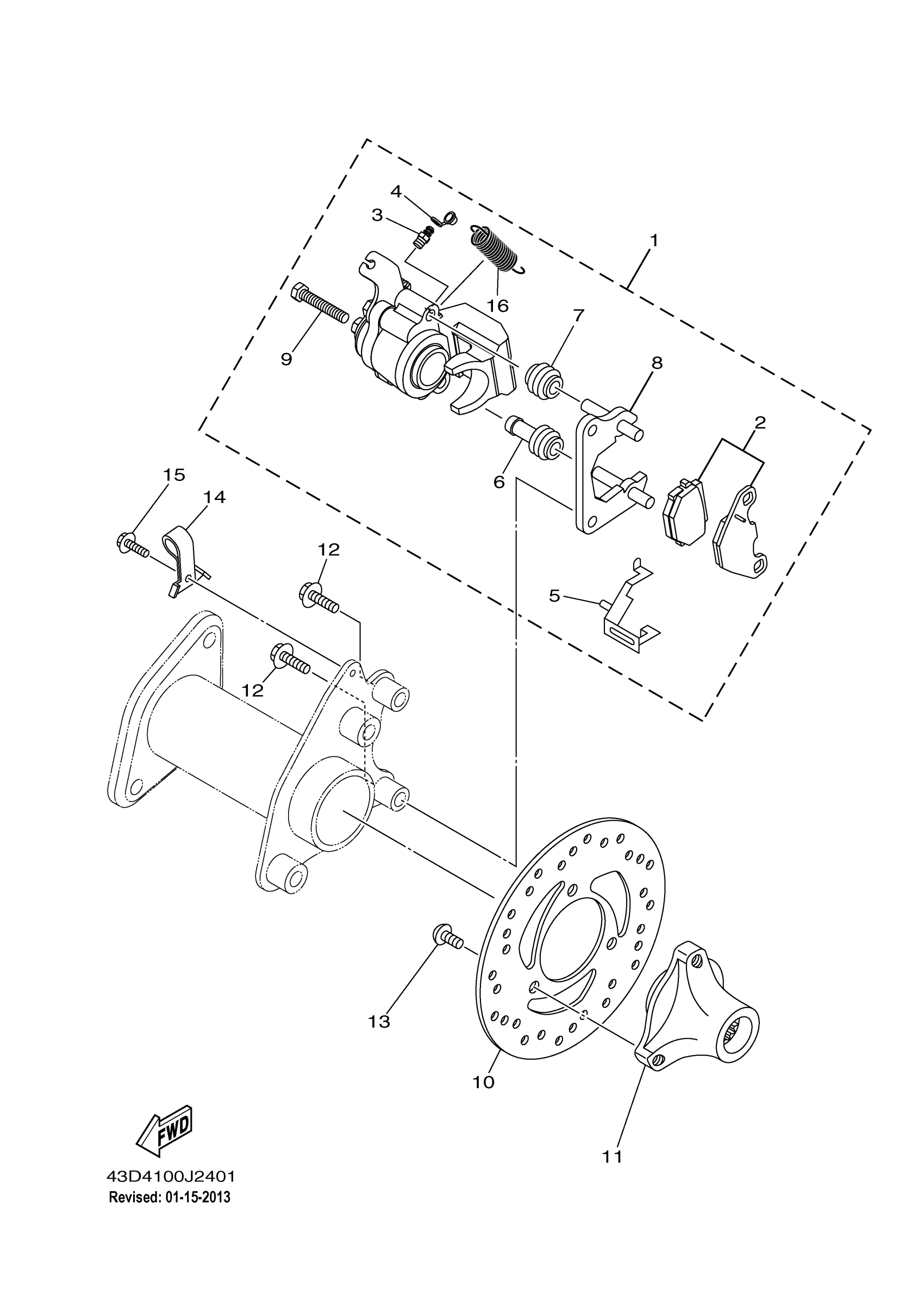

Yamaha YFM90RDW (RAPTOR 90) 43DD0 2013 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR 1

43D-F580V-01-00

Unavailable

2

REAR PAD LINING COMP. SET

43D-F5906-01-00

$80.99

3

SCREW, BLEED

43D-F5824-10-00

Unavailable

4

CAP

43D-F5825-00-00

Unavailable

5

SUPPORT, PAD

43D-F5919-00-00

$13.49

6

BOOT 2

43D-F5937-00-00

$6.99

7

BOOT, CALIPER

43D-F5917-00-00

Unavailable

8

BRACKET, SUPPORT

43D-F5921-01-00

Unavailable

9

ADJUST BOLT

43D-F5972-00-00

$4.47

10

DISC, REAR BRAKE 1

43D-F582V-01-00

Unavailable

11

BRACKET, DISC

43D-F5712-00-00

$192.99

12

BOLT, FITTING

43D-F5833-00-00

Unavailable

13

BOLT 1

43D-F1631-00-00

$5.49

14

HOLDER, BRAKE HOSE 2

43D-F5876-00-00

$8.99

15

BOLT, FLANGE

95817-06012-00

$1.43

16

SPRING, TENSION

90506-16007-00

Unavailable
