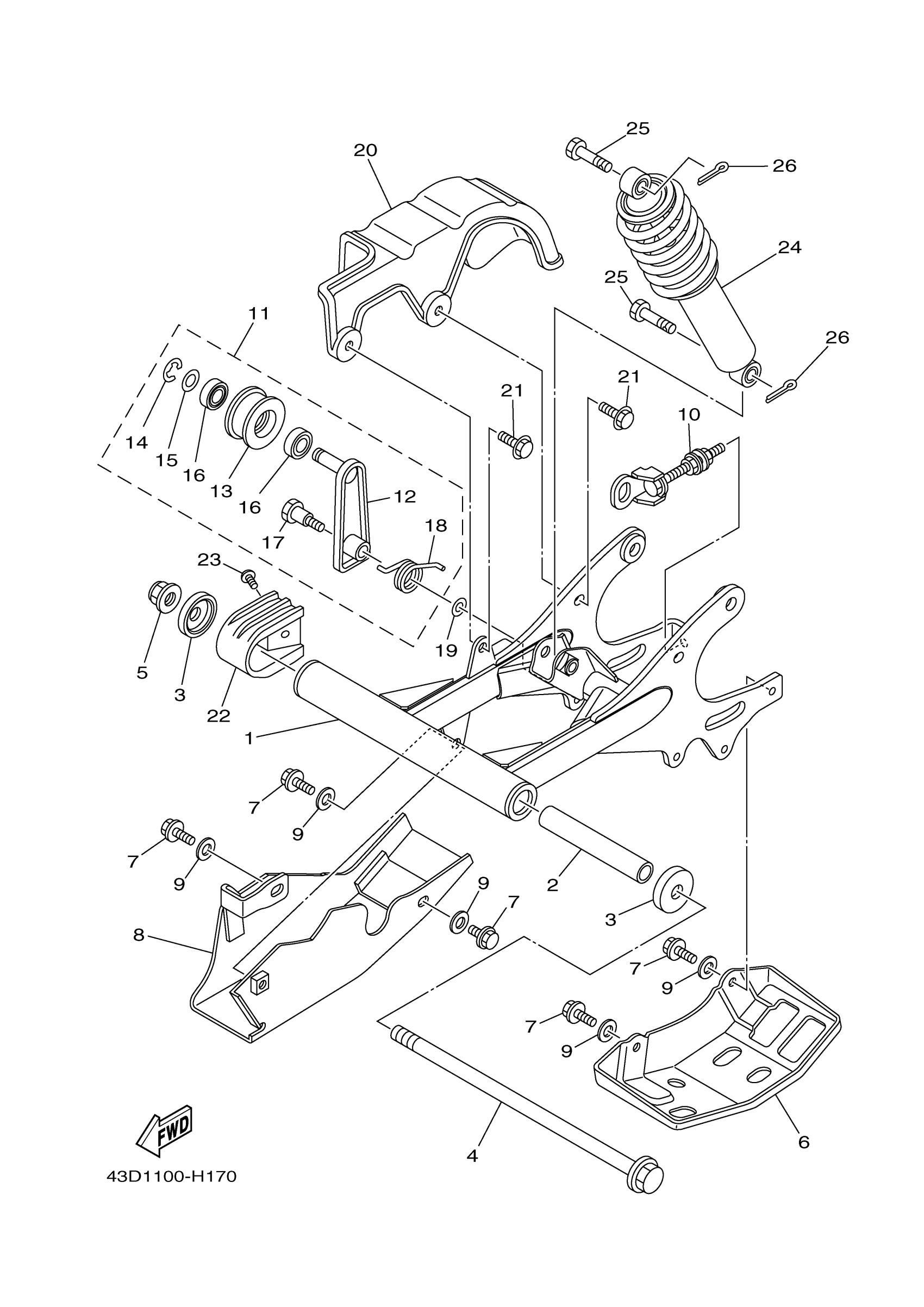

Yamaha YFM90RDW (RAPTOR 90) 43DD0 2013 REAR ARM Diagram

#

Description
Price

1

REAR ARM ASSY

43D-F2100-00-00

Unavailable

2

COLLAR, DISTANCE

43D-F2126-00-00

Unavailable

3

COVER, THRUST 1

43D-F2128-00-00

Unavailable

4

BOLT 2

43D-F1722-00-00

$41.99

5

NUT 1

43D-F1535-00-00

Unavailable

6

GUARD 1

43D-F2361-00-00

Unavailable

7

BOLT, CHAIH CASE 2

43D-F2334-00-00

$4.11

8

GUARD 2

43D-F2362-00-00

Unavailable

9

WASHER, SEAT

1SC-F4746-00-00

$2.13

10

PULLER, CHAIN 1

43D-F5388-00-00

$28.99

11

CHAIN TENSIONER ASSY

43D-F210L-00-00

$138.99

12

BRACKET, TENSIONER

43D-F2183-00-00

$44.99

13

TENSIONER

43D-F2178-00-00

$16.49

14

CIRCLIP

99002-10600-00

$8.49

15

WASHER

43D-F3456-00-00

Unavailable

16

BEARING

43D-F2176-00-00

Unavailable

17

BOLT, STUD

43D-F4391-00-00

Unavailable

18

. SPRING, TENSIONER

43D-F2169-00-00

Unavailable

19

WASHER

43D-F3427-00-00

Unavailable

20

CASE, CHAIN 2

43D-F2312-00-00

Unavailable

21

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

22

SEAL, GUARD

43D-F2151-10-00

Unavailable

23

BOLT, SPECIAL

43D-F3394-00-00

Unavailable

24

SHOCK ABSORBER ASSY, REAR

43D-F2210-00-00

Unavailable

24

SHOCK ABSORBER ASSY, REAR

43D-F2210-10-00

Unavailable

25

BOLT (6TC)

97017-10040-00

Unavailable

26

PIN, COTTER

91490-25020-00

Unavailable
