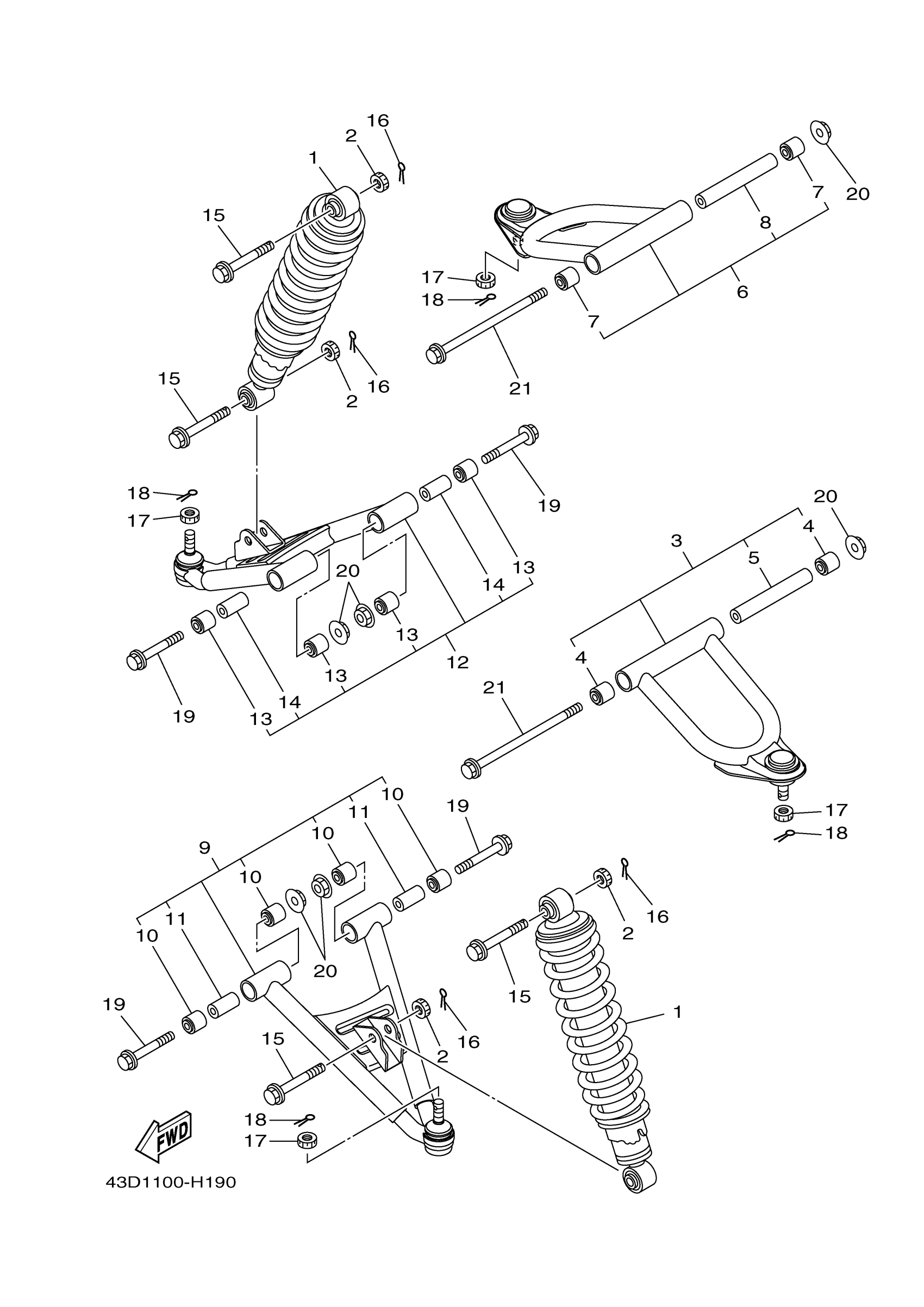

Yamaha YFM90RDW (RAPTOR 90) 43DD0 2013 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
1
SHOCK ABSORBER ASSY
43D-F3350-00-00
Unavailable
2
NUT
43D-F1244-00-00
Unavailable
3
FRONT UPPER ARM SUB ASSY LH
43D-F3505-00-00
Unavailable
5
COLLAR 1
43D-F3363-00-00
Unavailable
6
FRONT UPPER ARM SUB ASSY RH
43D-F3506-00-00
Unavailable
8
COLLAR 1
43D-F3363-00-00
Unavailable
9
FRONT LOWER ARM SUB-ASSY (L.H)
43D-F3507-00-00
Unavailable
15
BOLT (6TC)
97017-10040-00
Unavailable
16
PIN, COTTER
91490-25020-00
Unavailable
17
NUT, CASTLE
95307-10900-00
Unavailable
18
PIN, COTTER(6L5)
91490-25030-00
Unavailable
19
BOLT
43D-F3471-00-00
Unavailable
20
NUT, REAR FENDER
43D-F1635-00-00
Unavailable
21
BOLT, WASHER BASED(42X)
90105-10300-00
Unavailable
