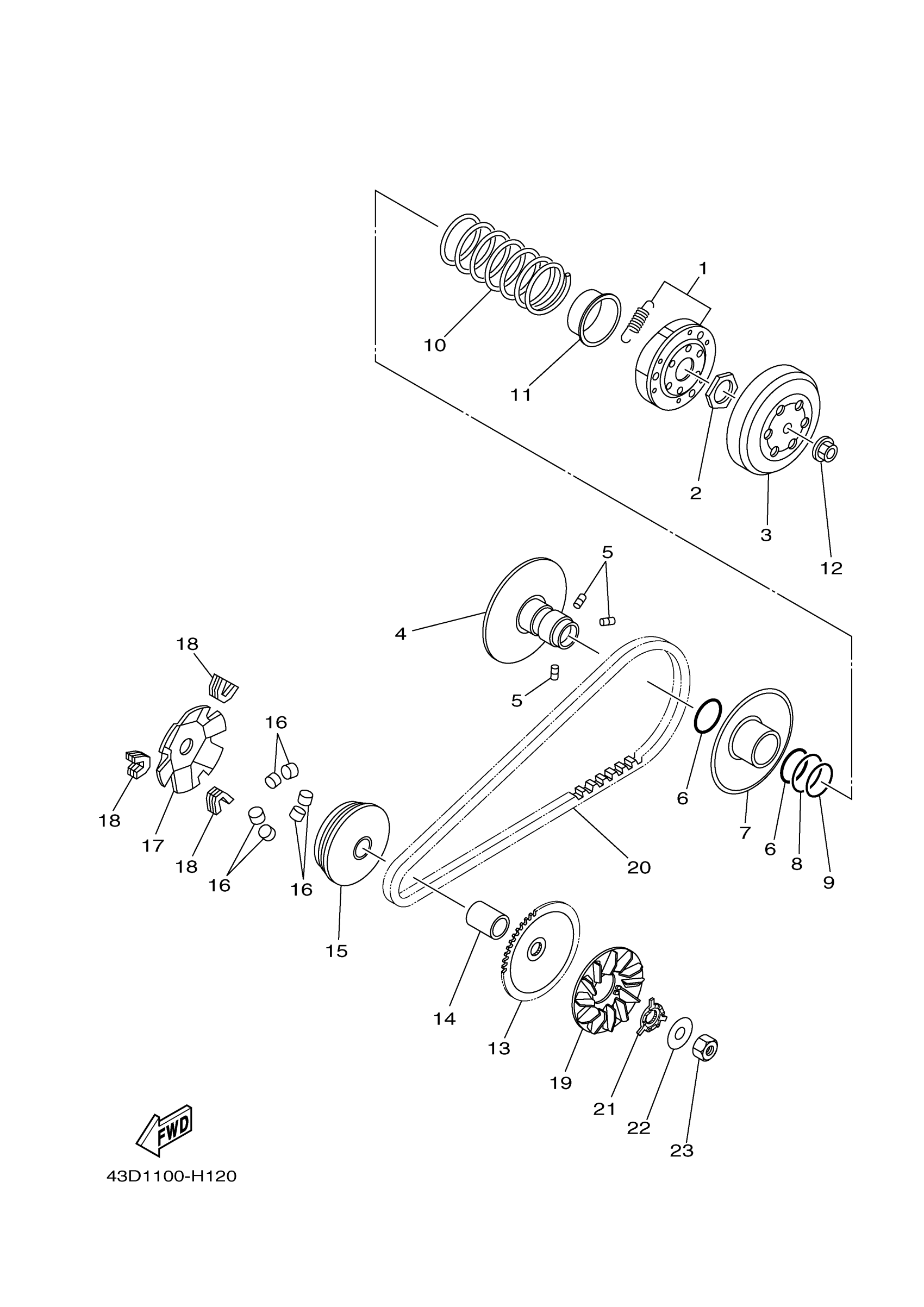

Yamaha YFM90RDW (RAPTOR 90) 43DD0 2013 CLUTCH Diagram

#

Description
Price

1

CLUTCH CARRIER ASSY

43D-E6620-00-00

Unavailable

2

NUT

43D-E4594-00-00

Unavailable

3

CLUTCH HOUSING COMP.

43D-E6611-00-00

Unavailable

4

SECONDARY FIXED SHEAVE COMP.

43D-E7660-00-00

$165.99

5

PIN, GUIDE

43D-E7664-00-00

Unavailable

6

OIL SEAL

43D-E76F3-00-00

$7.99

7

SECONDARY SLIDING SHEAVE

43D-E7670-00-00

$82.99

8

O-RING

43D-E76F4-00-00

$7.99

9

O-RING

43D-E76F5-00-00

$5.49

10

SPRING, SECONDARY

43D-E7683-00-00

Unavailable

11

SEAT, SECONDARY SPRING

43D-E7684-00-00

Unavailable

12

NUT, FLANGE(3BM)

95704-10500-00

$4.29

13

SHEAVE, PRIMARY FIXED 2

43D-E76F6-00-00

Unavailable

14

COLLAR

43D-E7645-00-00

$38.99

15

PRIMARY SLIDING SHEAVE COMP.

43D-E7620-00-00

$72.99

16

WEIGHT

43D-E7632-00-00

Unavailable

17

CAM

43D-E7623-00-00

Unavailable

18

SLIDER

43D-E7653-00-00

Unavailable

19

SHEAVE, PRIMARY FIXED

43D-E7611-00-00

Unavailable

20

V-BELT

43D-E7641-00-00

Unavailable

21

CLUTCH, ONEWAY

43D-E5657-00-00

Unavailable

22

WASHER

43D-E2673-00-00

Unavailable

23

NUT(3GG)

90179-12588-00

Unavailable
